Custom Cnc Prototype Parts Cnc Precision Machining Parts
Machined Parts Custom Cnc Prototype Parts Cnc Precision Machining Parts Machined Parts Cnc Machining Parts
At Xinbo Precision, we pride ourselves on the high quality of turned parts we produce. We appreciate your need for excellent surface finish especially on sealing faces and on surfaces that are visible to the end customer.
Whether your requirement is for the machining of aluminum, stainless steel, titanium, polycarbonate, acetal or medical plastics we can help you.

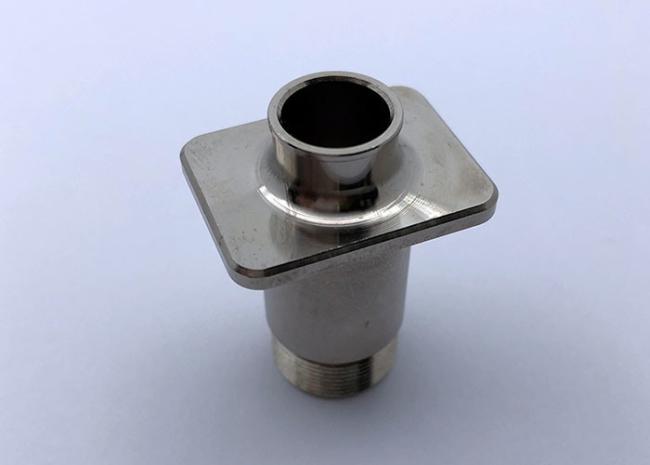

CNC Turning Parts We Made
CNC Machine Shops in Xinbo Precision have already produced many kinds of cnc turning parts in 13 years, our engineering team always provided useful solution to our customers to solve their difficult problems in making cnc turning parts.
CNC Machine shops in Xinbo Precision offer CNC turning service to help your business in the following ways:
•Production of Complex Parts and Components with Great Accuracy
•High Speed Production
•Cut down the Production Expenses and Boost Business profits
| Name | CNC Swiss turning Precision parts |
| Materials | 304 Stainless steel |
| Surface Treatment | As machined |
| Tolerance | +-0.003mm |
| Testing equipment | Micrometer,Roughness measurement. |
| Processing | CNC turning, Swiss turning |
| File Formats | Solid Works, Pro/Engineer, AutoCAD(DXF,DWG), IGS,STP, PDF,TIF etc. |
| Service Project | Free design review(DFM report), Production and technical service. |
Machining Equipment
XinBo Precision use state of the art equipment and certified materials to assure highest quality of control standards.
| Name | Module | Range | Brand | Origin | Qty. | Precision |
| CNC Milling | VMC850/VMC1270 | V500-1270mm | Baoming/Baojia/Weikun | China | 26 | 0.02mm |
| CNC Milling | 4 axis | 200mm | BangBang | China | 5 | 0.005mm |
| CNC Milling | 5 axis | 200mm | BangBang | China | 1 | 0.005mm |
| CNC Milling | S500X1 | 500*400*300 | Brother | Japan | 2 | 0.005mm |
| Automatic Lathe | MC7036B/MC7020XE | 1-100mm | ZhongTai | China | 8 | 0.01mm |
| CNC Lathe | VT-17L | 215*470mm | Alex-Tech | Taiwan | 1 | 0.002mm |
| Turn-mill Combination | B0203-III | 1-46mm | TSGAMI | Japan | 4 | 0.002mm |
| Surface Grinder | PSGC-4080 AHR | 400*800mm | Proth | Taiwan | 2 | 0.002mm |
| Grinder | 520 | 200*400mm | Taizheng | China | 6 | 0.005mm |
| Mill Machine | 3# | 200*1000mm | Jietongda | China | 8 | 0.02mm |
| High Speed Wire Cut | 200*500mm | Jicheng | China | 4 | 0.02mm | |
| Medium Speed Wire Cut | DK7732C-C | 320*400mm | Baoma | China | 4 | 0.01mm |
| Laser Engrave Machine | G20 | Cherrywoolf | China | 1 | ||
| Other equipment:Drill machine, Tapper, Polisher, EDM puncher, Ultrasonic cleaner, Sand blaster machine, Saw machine, Magnetic grinder. |
||||||
Inspection Equipment
Commitment to quality has always been a driving force at XinBo Precision. Custom Manufacturing. Registered to the ISO 9001 quality standard since 2011, we’ve developed a quality policy that is the basis for our quality assurance program.
| Name | Module | Measuring range | Brand | Origin | Qty. | Precision |
| Height gauge | Hite-400 | 0-400mm | TESA | Swiss | 4 | 0.003um |
| Projector | VMS-3020 | 0-400mm | Video | Japan | 2 | 0.003um |
| CMM | CROMA 564 | 500*600*400mm | SERERN | Joint venture | 2 | 0.003um |
| Hardness tester | HR-150C | 20-88HRA,20-100HRB,20-70HRC | Rockwell | China | 2 | 0.5HRC |
| Film thickness gauge | AR932 | 0-1700um | Smartsensor | China | 2 |
FAQ
What’s the CNC machining surface finishes
As machined (Ra 3.2μm / Ra 126μin)
This is our standard finish. Parts are machined and deburred, sharp edges are chamfered.
Smooth machining (Ra 1.6μm / Ra 63μin)
Smooth machining is like an ‘As machined’ finish but with slightly less evident machine marks. Parts are machined at a lower feed, no hand polishing is applied.
Fine machining (Ra 0.8μm / Ra 32μin)
Finer-looking machining obtained either through higher-precision machines, lower feeds, sharper tools, or a combination of all the above. Machining marks are less evident.
Polishing (Ra 0.8μm / Ra 32μin)
Parts are manually polished in multiple directions. Surface is smooth and slightly reflective.
