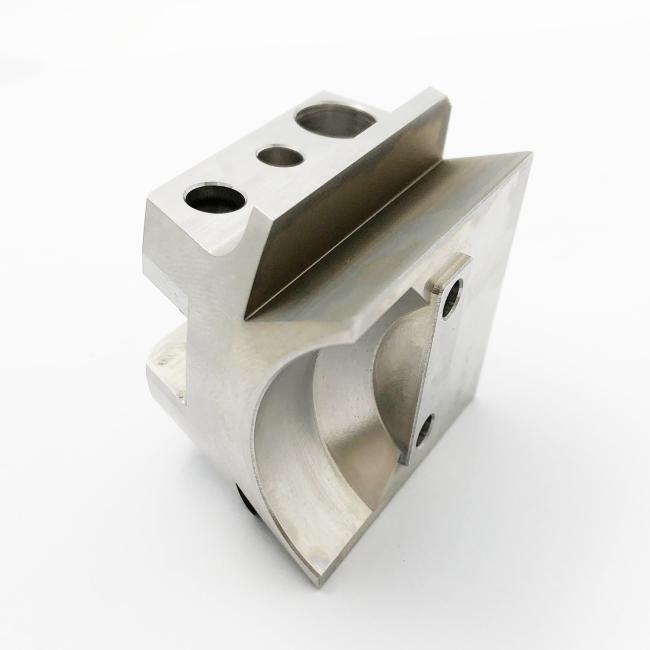

Precision Cnc Parts Precision Quality Cnc Milling Machining Parts
Precision Cnc Parts Ltd Best Prototype China Precision Quality Machining Cnc Milling Machining Parts
Product Description
Precision turned parts are created by CNC turning and can be done using either a CNC screw machine or a CNC lathe. CNC screw machines are multi-pinch and can machine multiple parts simultaneously while achieving high productivity. CNC machine turning begins when a round, square or hexagonal blank is attached to the collet chuck of the spindle.
| Name | Milling Service, Swiss Turning Parts, Precision Lathe Parts, Precision Automatic lathe parts |
| Materials | Aluminum, AL-7075, AL-6082, AL-6061, AL-6063, 7075 AL, 6082 AL, 6061 AL, 6063 AL |
| Surface Treatment | As machined |
| Tolerance | +-0.003mm |
| Testing equipment | Micrometer,Roughness measurement. |
| Processing | CNC turning, Swiss turning |
| File Formats | Solid Works, Pro/Engineer, AutoCAD(DXF,DWG), IGS,STP, PDF,TIF etc. |
| Service Project | Free design review(DFM report), Production and technical service. |
Machining Equipment
XinBo Precision use state of the art equipment and certified materials to assure highest quality of control standards.
| Name | Module | Range | Brand | Origin | Qty. | Precision |
| CNC Milling | VMC850/VMC1270 | V500-1270mm | Baoming/Baojia/Weikun | China | 26 | 0.02mm |
| CNC Milling | 4 axis | 200mm | BangBang | China | 5 | 0.005mm |
| CNC Milling | 5 axis | 200mm | BangBang | China | 1 | 0.005mm |
| CNC Milling | S500X1 | 500*400*300 | Brother | Japan | 2 | 0.005mm |
| Automatic Lathe | MC7036B/MC7020XE | 1-100mm | ZhongTai | China | 8 | 0.01mm |
| CNC Lathe | VT-17L | 215*470mm | Alex-Tech | Taiwan | 1 | 0.002mm |
| Turn-mill Combination | B0203-III | 1-46mm | TSGAMI | Japan | 4 | 0.002mm |
| Surface Grinder | PSGC-4080 AHR | 400*800mm | Proth | Taiwan | 2 | 0.002mm |
| Grinder | 520 | 200*400mm | Taizheng | China | 6 | 0.005mm |
| Mill Machine | 3# | 200*1000mm | Jietongda | China | 8 | 0.02mm |
| High Speed Wire Cut | 200*500mm | Jicheng | China | 4 | 0.02mm | |
| Medium Speed Wire Cut | DK7732C-C | 320*400mm | Baoma | China | 4 | 0.01mm |
| Laser Engrave Machine | G20 | Cherrywoolf | China | 1 | ||
| Other equipment:Drill machine, Tapper, Polisher, EDM puncher, Ultrasonic cleaner, Sand blaster machine, Saw machine, Magnetic grinder. |
||||||
Inspection Equipment
Commitment to quality has always been a driving force at XinBo Precision. Custom Manufacturing. Registered to the ISO 9001 quality standard since 2011, we’ve developed a quality policy that is the basis for our quality assurance program.
| Name | Module | Measuring range | Brand | Origin | Qty. | Precision |
| Height gauge | Hite-400 | 0-400mm | TESA | Swiss | 4 | 0.003um |
| Projector | VMS-3020 | 0-400mm | Video | Japan | 2 | 0.003um |
| CMM | CROMA 564 | 500*600*400mm | SERERN | Joint venture | 2 | 0.003um |
| Hardness tester | HR-150C | 20-88HRA,20-100HRB,20-70HRC | Rockwell | China | 2 | 0.5HRC |
| Film thickness gauge | AR932 | 0-1700um | Smartsensor | China | 2 |
FAQ
What is precision machining?
If you are interested in precision CNC turning parts, you may want to learn more about machining, especially precision machining. Precision machining is a growing area of manufacturing that affects our daily lives. As such, it is a key contributor to the field today.
Precision machining is the process of removing excess raw material from a workpiece while maintaining a close tolerance finish to a finished product. In short, this means forming large pieces of material into more precise parts so they can meet very precise specifications. This process involves cutting, milling, turning and electrical discharge machining and is typically performed using computer numerical control (CNC) equipment.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
