4G 5G High Gain Omnidirectional Wifi Antenna High Frequency 2700MHz
4G 5G High Gain Omnidirectional Wifi Antenna High Frequency 2700MHz
High gain 4G 5G Wifi Antenna High Quality Antenna
4G antenna Antenna is a device that transforms the energy of high-frequency current or waveguide method into electromagnetic wave and transmits it out in the specified direction or restores the electromagnetic wave from a certain direction to high-frequency current.
Omnidirectional antenna, that is, in the horizontal direction of the performance of 360° uniform radiation, is commonly referred to as non-directional, in the vertical direction of the performance of a certain width of the beam, generally, the smaller the width of the lobe, the greater the gain. high gain wifi antenna
|
Electrical Specifications |
|
|
Antenna Name |
4G 5G Wifi Antenna High Quality Antenna |
|
Frequency Range |
690-2700MHz 3000-6000MHz |
|
Gain (dBi) |
1-3dBi |
|
VSWR |
≤3.0 |
|
Input impedance(Ω) |
50Ω |
|
Polarization |
Linear |
|
Iput connector type |
RP-SMA (or Requested) |
|
Mechanical Specifications |
|
|
Dimensions |
185x48mm |
|
Openrating temperature(℃) |
-20~+85 |
|
Antenna color |
White or requested |

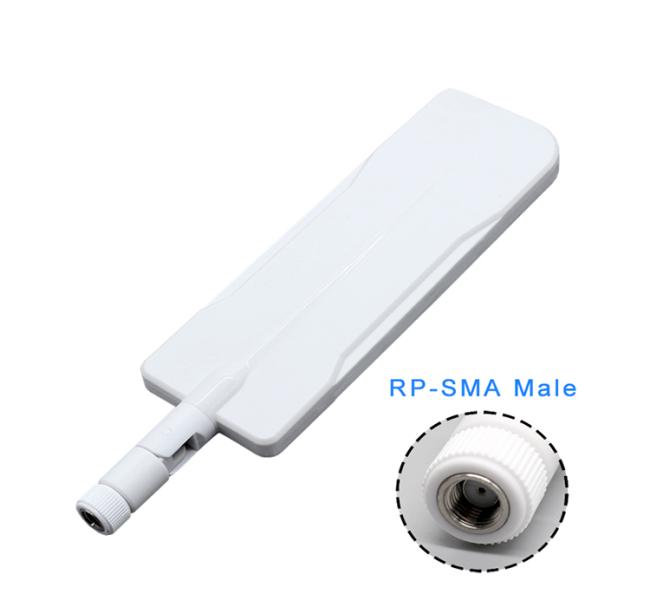

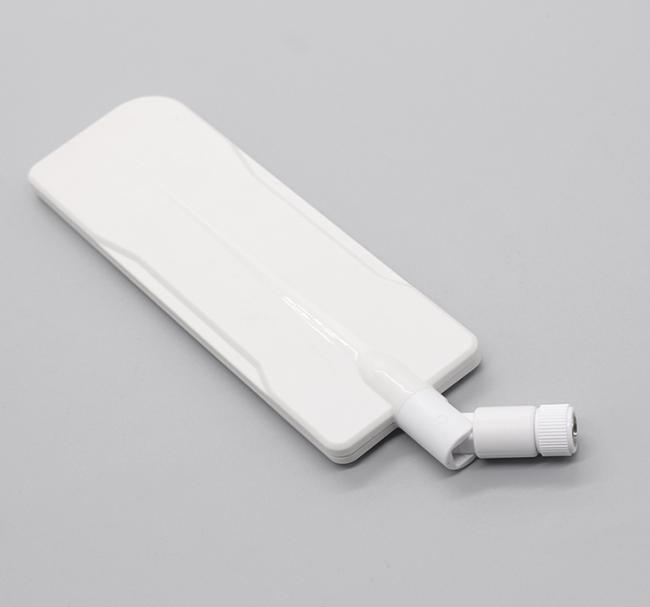

Detailed Images
FAQ
|
Q:Are you a manufacturer or a trading company? |
|
A:We are a manufacturer since year 2008 and have been in RF fields for more than 10 years. |
|
Q: Can I get some samples? |
|
A: Yes, sample order is available for quality check and market test, and it will be freight collect payment. |
|
Q: Can your company accept customize? |
|
A: Welcome OEM & ODM.As you know, many antennas are customized based on project and application,and we have R&D capability to meet customization requirements. |
|
Q:What's your company MOQ? |
|
A: This we can discuss according to different product. Most of our standard products, MOQ will be 1000PCS. |
|
Q: What’s your payment term? |
|
A: We usually accept T/T,PAYPAL and Western Union as the main payment term, and other payments can also be negotiated. |
