6dBi 2.4G Long Range External Omni Wifi Antenna Outdoor Waterproof IP65
6dBi 2.4G Long Range External Omni Wifi Antenna Outdoor Waterproof IP65
China Factory 2.4G Long Range External Wireless Wifi Antenna
wifi receiver antenna Features:
High Efficiency-with and without ground plane
Use in indoor and outdoor, waterproof IP65,UV resistant.
Aesthetic look and feel Unique can rotate 360 degrees and articulate through 180 degrees
Max peak gain compliant with most Wi-Fi modules
Connector:SMA(M),other connector available

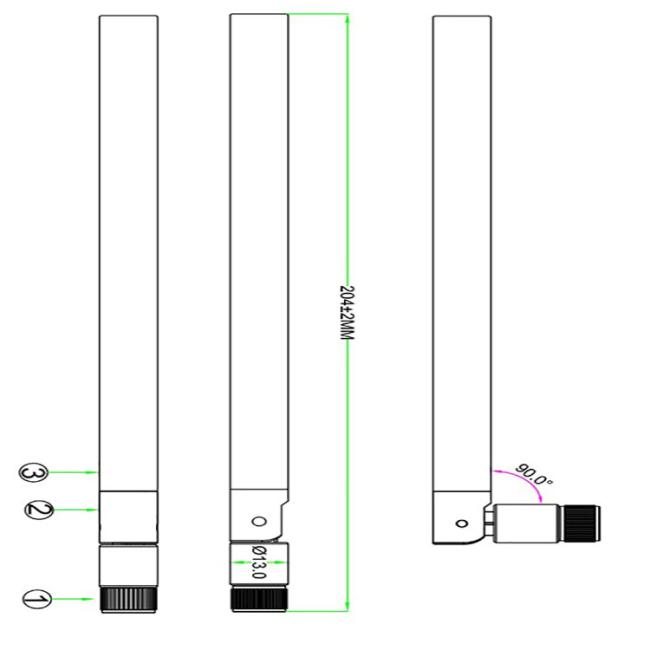

Dimensions:Ф13*200mm
RoHS&Reach CE/FCC/ BSCI Compliant long range wifi antenna
|
Electrical Specifications |
|
|
Antenna Name |
Wifi Antenna long range wifi antenna |
|
Frequency range |
2400-2500MHz |
|
Gain (dBi) |
6 |
|
VSWR |
≤2.0 |
|
Input impedance(Ω) |
50 |
|
Polarization Type |
Vertical |
|
Iput connector type |
SMA Male |
|
Mechanical Specifications |
|
|
Antenna length(mm) |
205x13 |
|
Openrating temperature(℃) |
-20~+85 |
|
Antenna color |
Black,White |

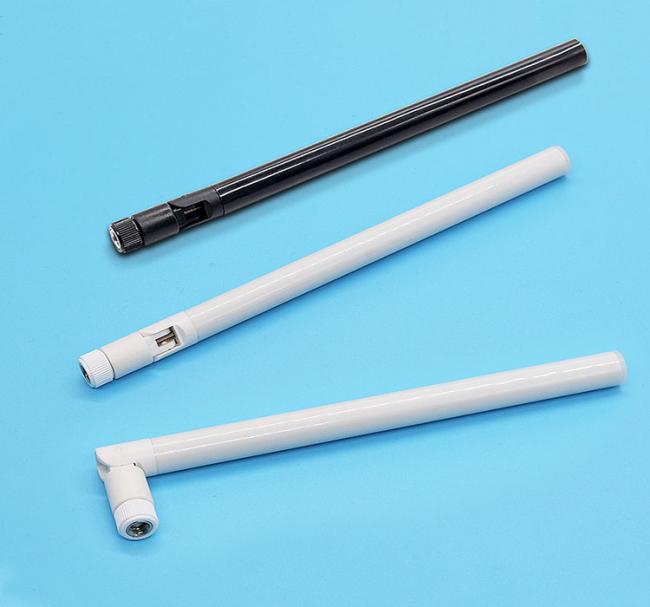

Detailed Images
FAQ
|
Q:Are you a manufacturer or a trading company? |
|
A:We are a manufacturer since year 2008 and have been in RF fields for more than 10 years. |
|
Q: Can I get some samples? |
|
A: Yes, sample order is available for quality check and market test, and it will be freight collect payment. |
|
Q: Can your company accept customize? |
|
A: Welcome OEM & ODM.As you know, many antennas are customized based on project and application, and we have R&D capability to meet customization requirements. |
|
Q:What's your company MOQ? |
|
A: This we can discuss according to different product. Most of our standard products, MOQ will be 1000PCS. |
|
Q: What’s your payment term? |
|
A: We usually accept T/T,PAYPAL and Western Union as the main payment term, and other payments can also be negotiated. |
