Extension Cable Wifi Marine Gps Antenna 2500MHz Wireless Gps Antenna
Extension Cable Wifi Marine Gps Antenna 2500MHz Wireless Gps Antenna
Factory Supply Extension Cable Wifi GPS Combination Black Antenna For Car
|
GPS |
|
|
Product Name |
Factory Supply Extension Cable Wifi GPS Combination Black Antenna For Car Marine Gps Antenna |
|
Frequency range |
1575.42±3MHz |
|
Band Width |
CF±5MHz |
|
Gain (dBi) |
28±2 |
|
VSWR |
≤2.0 |
|
Polarization |
RHCP |
|
Input Impedance(Ω) |
50 |
|
Current Consumption(mA) |
30-60mA |
|
Supply Voltage |
3~5V DC |
|
Radiation Pattern |
Directional |
|
Connector type |
SMA,BNC or others |
|
WIFI |
|
|
Frequency range |
2400-2500MHz |
|
Band Width |
100MHz |
|
Gain (dBi) |
2dBi |
|
VSWR |
≤2.0 |
|
Polarization |
Linear |
|
Input Impedance(Ω) |
50 |
|
Radiation Pattern |
Directional |
|
Input Connetcor type |
SMA,BNC or others |
|
Mechanica Specifications |
|
|
Cable |
RG174 |
|
Material |
ABS |
|
Noise Figure(dB) |
<1.5 |
|
Operation Temperature(℃) |
-20~+85 |
|
Storage Temperature(℃) |
-20~+85 |
|
Radone color |
Black or request |

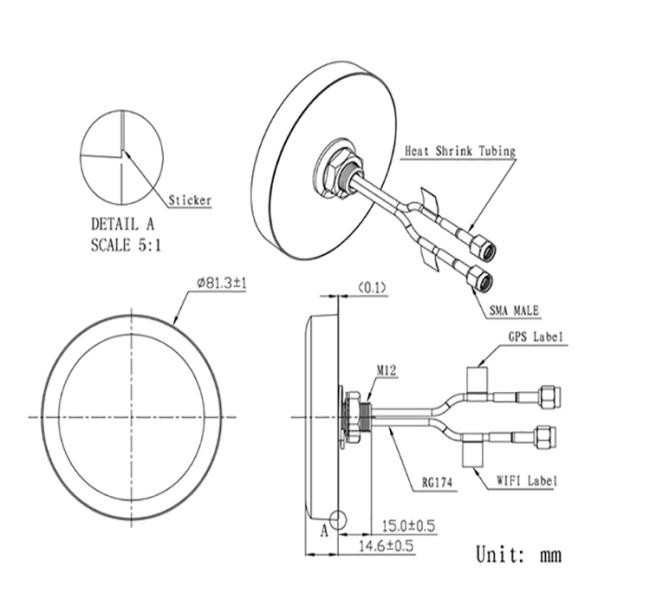

Detailed Images
FAQ
FAQ
1 Q: What is you brand ?A ODMOEM
2 Q: Can I choose a different connector?
A: We can customize dfferent connector according to your requirements 3 Q: Can you proyide customization?
A Of course.Persnalized designs of the preducts accoraing to custome's requiremens are welcomed.
4 Q:Can you send a sample for us to develop?
A Yes,normally we can provide 1 cr 2samples of the small antenna for free,to be fair buyers need to bear the freight.
5 Q: How much the shipping cost will be for sample ?A It depends on the specifc weight and packing size of the goods
6 Q How can Iget the cable price list ?
A Please contact us with detal inquiry information,so we can cffer the latest price for you
7 Q: What's your MOQ?
A In generally,we will sk at least 100pcs for the Antenna which we can make further negtitio.
8 Q:What's the dellvery time?
A Generally, we can deliver the cables in 3-5working days cnce the paymentis confimed. Mas5 production can be negotiated 9Q:How do you solve after sale service?
A Afer the receip of goods, iyou are not satisfied or any other problems,please contact us to communicate as soon as possible,we will give you a quicky and reasonable solution.Thanks a lot!
