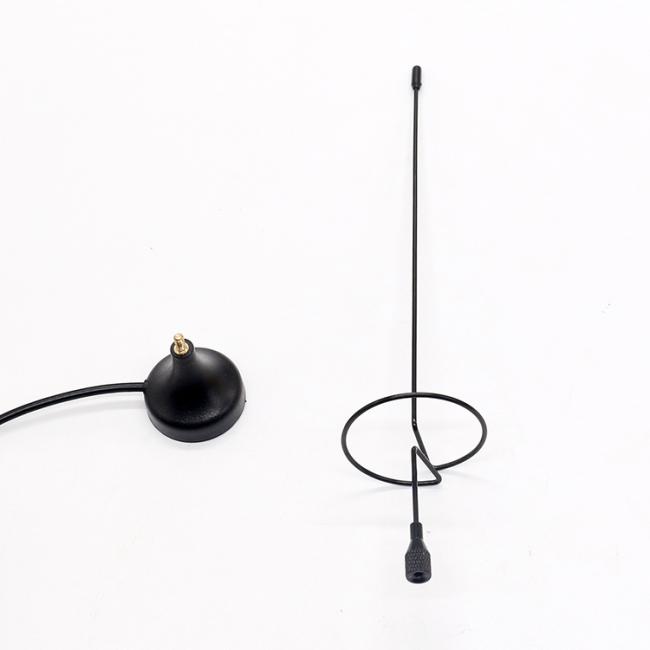

5dBi Mobile Phone 3G 4G 5G Antenna Vertical Magnetic Based 700MHz
5dBi Mobile Phone 3G 4G 5G Antenna Vertical Magnetic Based 700MHz
Factory Price 5dBi Mobile Phone Magnetic Based Antenna For 4G 3G
A 3G network is a communication network that uses the lines and equipment of the third generation mobile communication technology, which supports high-speed data transmission. 3G network is a new generation of mobile communication system, which combines wireless communication with multimedia communication means such as the Internet.
4G is a combination of 3G and WLAN, and enables fast data, high-quality audio, video, and image transmission. 4G can download at speeds of more than 100Mbps, which is 25 times faster than the current home broadband ADSL (4 MBPS), and can meet the requirements of almost all users for wireless services.
|
Electrical Specifications |
|
|
Product Name |
Factory Price 5dBi Mobile Phone Magnetic Based Antenna For 4G 3G mobile phone antenna |
|
Frequency range |
824-960/700-2700MHz |
|
Gain (dBi)3 |
3dBi |
|
VSWR |
≤2.0 |
|
Polarization |
Vertical |
|
Input Impedance(Ω) |
50Ω |
|
Connector type |
SMA Male or Requested |
|
Cable |
RG174U |
|
Mechanica Specifications |
|
|
Dimensions(mm) |
30x200 |
|
Material of Radiator |
CU |
|
Operation Temperature(℃) |
-20~+85 |
|
Storage Temperature |
-20~+85 |
|
Radone color |
Black or Requested |
