FPV UAV Drone Panel Patch Antenna 5.8GHz 12dBi With SMA Connector
Fpv UAV Drone Panel Patch Antenna 5.8GHz 12dBi With SMA Connector
Best Selling 5.8GHz 12dBi Fpv Drone Panel Patch Antenna With SMA Connector
|
Electrical Specifications |
|
|
Antenna Name |
Best Selling 5.8GHz 8dBi Fpv Drone Panel Patch Antenna With SMA Connector |
|
Frequency Range |
5.8GHz |
|
Gain (dBi) |
8 |
|
VSWR |
≤1.8 |
|
Input impedance(Ω) |
50 |
|
Polarization |
vertical |
|
Lightning Protection |
DC Ground |
|
connector type |
SMA male, or female (or customized) |
|
Mechanical Specifications |
|
|
Dimensions |
90x40mm |
|
Wire/length(m) |
RG141/0.15m or customized |
|
Openrating temperature(℃) |
-40~+85 |
|
Reted wind velocity(m/s) |
60 |
|
Antenna color |
white |

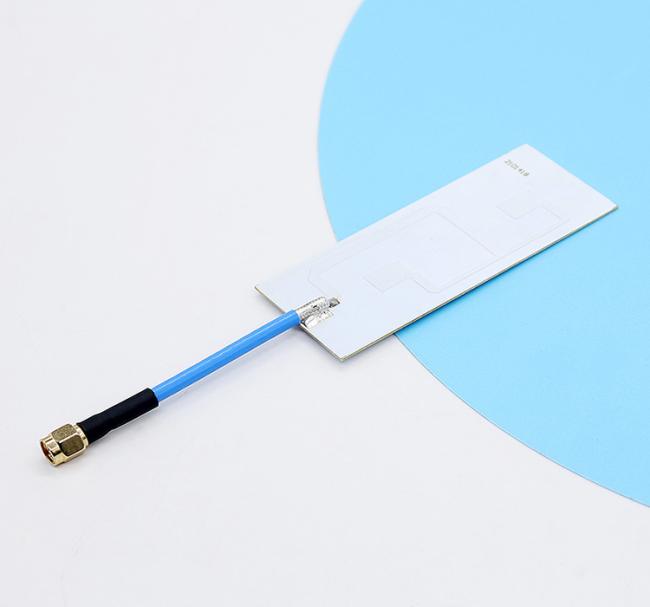

Detailed Images
Company Information
Dongguan Chaowei Electronics Co., Ltd. was established on July13,2008,
Located at Dongguan City, Guangdong Province China,perfection is our main
objective.
We design and develop high performance antenna solutions for M2M and IoT applications. The ChaoWei R&D center is equipped with network analyzers and in-house anechoic chamber capable to perform radiated measurements ranging from
100 MHz up to 8.5 GHz.
Our R&D team has more than 11 years of experience in antenna design gained from a large number of customer specific and internal development projects. Whether you require a customized antenna solution for your application or want to integrate
one of our available standard antenna products – ChaoWei is your right partner when
it comes to antenna solutions for wireless applications.
Detailed documentation and development support is available for our standard products to ensure an easy integration. At ChaoWei we are prepared for the requirements of today´s and tomorrow´s wireless systems. Let us know your application and contact us today.
Equipment
FAQ
|
Q:Are you a manufacturer or a trading company? |
|
A:We are a manufacturer since year 2008 and have been in RF fields for more than 10 years. |
|
Q: Can I get some samples? |
|
A: Yes, The samples are free, but the express fee should be paid. |
|
Q: Can your company accept customize? |
|
A: Welcome OEM & ODM.As you know, many antennas are customized based on project and application,and we have R&D capability to meet customization requirements. |
|
Q:What's your company MOQ? |
|
A: This we can discuss according to different product. Most of our standard products, MOQ will be 1000PCS. |
|
Q: What’s your payment term? |
|
A: We usually accept T/T,PAYPAL and Western Union as the main payment term, and other payments can also be negotiated. |
