Features:

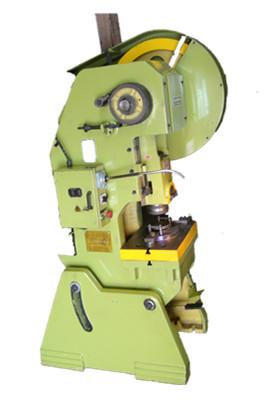

- Dies & die frame are not displayed in photo of the press machine
- Basic technical specifications: see table 2-2 - Position: the machine is horizontally set on the floor - Capacity for domed nail heads : 125pcs x 2/min - 2 domed nail heads are made in each stroke - The automatic air feeder is fixed above the worktable - The sizes of the steel strip applied in the feeder are suggested as follows:
| Table 2-1 | ||
| No. | Dia. of domed head | Width x Thickness |
| 1 | 20mm | 45 x 1.2mm |
| 2 | 18mm | 41 x 1.1mm |
| 3 | 14mm | 34 x 1.0mm |
- Dies/moulds set for only one of above sizes is covered in seller’s price.
| Table 2-2 | |||
| Model And Descriptions | Unit | BJ23-16B | BJ23-40 |
| Nominal force | KN | 160 | 400 |
| Slide block stroke | mm | 70 | 100 |
| Number of stroke | Min. | 125*2(250) | 55*5(275) |
| Max. die set height | mm | 170 | 220 |
| Die set height adjustment | mm | 45 | 80 |
| Distance from slide block centre to the frame | mm | 170 | 240 |
| Worktable dimensions (W x L) | mm | 320 x 480 | 460x700 |
| Hole dimensions in bed: Dia. x Depth x Width |
mm | Ø210 x 160 x 240 | Ø150 x 320 x 270 |
| Thickness of worktable | mm | 60 | 80 |
| Sizes of slide block bottom (W x L) | mm | 180 x 200 | x270 |
| Sizes of the handle hole : Dia. x Depth |
mm | Ø40 x 60 | Ø50 x 60 |
| Max. tilting angle of body | Deg. | 25° | 25° |
| Motor power (Type: Y2 100L-6) | kw | 1.5KW | 4KW |
| Net weight(approx.) | kg | 1080 | 3400 |
| Overall dimensions (L×W×H) | mm | 1150 x 900 x 1055 | 1500 x 1180 x 2300 |
Roofing Nail Production Flow:
Cap forming(Domed nail head press machine/cap former) → cap polishing(polishing machine) → roofing nail making(roofing nail making machine) → galvanizing(galvanizing equipment) → packing.
*Device for making twist/threaded roofing nails is available under request.
Roofing nail making machine, polishing machine and other machine and accessories are available.
