E320 E312C Planetary Swing Gearbox 2nd Washer Swing Reduction 0941528 6V5841 0966467 7Y1094

Price Negotiable
Price: Negotiated
MOQ: 1pc
Delivery Time: 1-3 working Days
Brand: MENZEH GEARS
Product Description

0941528 6V5841 0966467 7Y1094 E320 E312C Planetary Gear Parts Swing Gearbox 2nd Washer Swing Reduction

Part Name 2nd Washer
Part No. 0941528 6V5841 0966467 7Y1094
Used For E320 E312C
Warrenty 3 months
After Warranty

Video technical support Online support Free Spare parts

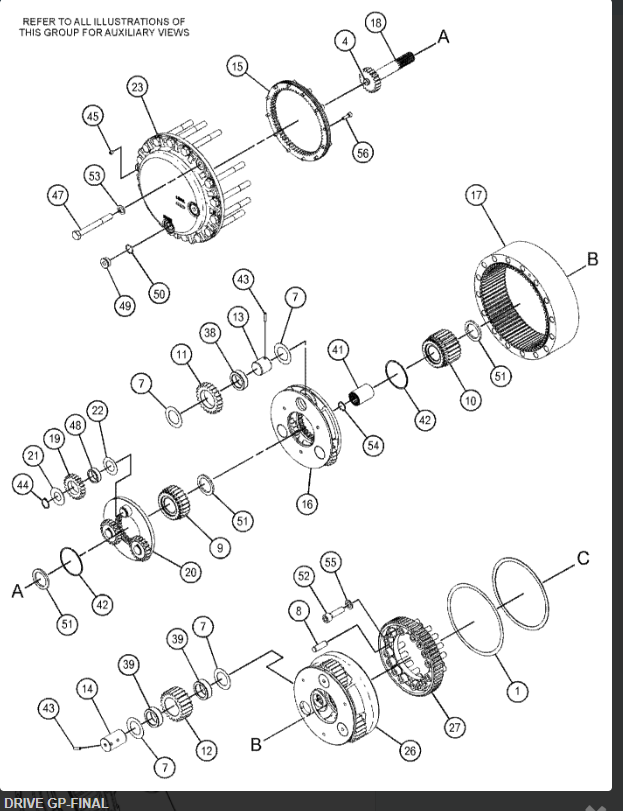

Pos. Part No Qty Parts name Comments
1 7Y-0752 B [1] SHIM (0.8-MM THK)
  7Y-0753 B [1] SHIM (1-MM THK)
  7Y-0754 B [1] SHIM (1.6-MM THK)
  267-6863 B [1] SHIM (0.75-MM THK)
  267-6864 B [1] SHIM (0.85-MM THK)
  267-6865 B [1] SHIM (0.9-MM THK)
  267-6866 B [1] SHIM (0.95-MM THK)
  267-6867 B [1] SHIM (1.2-MM THK)
  267-6868 B [1] SHIM (1.4-MM THK)
  267-6869 B [1] SHIM (1.8-MM THK)
  267-6870 B [1] SHIM (2-MM THK)
  267-6871 B [1] SHIM (2.3-MM THK)
4 094-0578 B [1] PLATE (8-MM THK)
  094-0579 B [1] PLATE (9-MM THK)
  094-0580 B [1] PLATE (10-MM THK)
7 094-1528 [12] WASHER (53X84X1-MM THK)
8 114-1540 [4] PIN-DOWEL
9 169-5589 [1] GEAR-SUN (24-TEETH)
10 169-5590 [1] GEAR-SUN (24-TEETH)
11 169-5592 [3] GEAR-PLANETARY (23-TEETH)
12 169-5593 [3] GEAR-PLANETARY (23-TEETH)
13 169-5601 [3] SHAFT-PLANETARY
14 169-5602 [3] SHAFT-PLANETARY
15 171-9387 [1] GEAR-RING (64-TEETH)
16 191-2571 [1] CARRIER-PLANETARY
17 191-2676 [1] GEAR-RING (72-TEETH)
18 191-2683 [1] GEAR-SUN (20-TEETH)
19 191-2684 [3] GEAR-PLANETARY (21-TEETH)
20 191-2686 [1] CARRIER AS
21 191-2689 [3] WASHER (34X70X1-MM THK)
22 191-2690 [3] WASHER (42.3X70X1-MM THK)
23 199-4503 [1] COVER
24 207-1571 [1] SEAL GP-DUO-CONE
  214-3570 [2] RING-TORIC
25 267-6798 [1] HOUSING
26 267-6799 [1] CARRIER-PLANETARY
27 267-6800 [1] GEAR-COUPLING
37 333-2914 [2] BALL BEARING
38 333-2916 [3] BEARING AS
39 333-2917 [6] BEARING AS
40 452-3517 [1] HOUSING-MOTOR
41 509-1886 [1] COUPLING
42 093-1731 [2] RING-RETAINING
43 095-0891 [6] PIN-SPRING
44 096-0433 [3] RING-RETAINING
45 096-3216 M [2] SETSCREW-SOCKET (M12X1.75X12-MM)
46 171-9298 [1] SEAL-O-RING
47 179-8733 M [16] BOLT (M20X2.5X170-MM)
48 296-6248 [3] BEARING AS-ROLLER
49 3E-2338 [2] PLUG-PIPE
50 7M-8485 [2] SEAL-O-RING
51 7Y-0595 [3] SPACER (58X79.6X6-MM THK)
52 7Y-5217 M [16] BOLT-SOCKET HEAD (M20X2.5X70-MM)
53 451-2176 [16] WASHER-HARD (22X35X3.5-MM THK)
54 8C-8840 [1] RING-RETAINING
55 8T-3282 [16] WASHER-HARD (22X35X3.5-MM THK)
56 101-7404 M [12] BOLT-SOCKET HEAD (M10X1.5X30-MM)

  1U-8846 BF [4] SEALANT-GASKET

      PARTS SHOWN IN GRAPHIC(S) WITHOUT A REFERENCE NUMBER ARE NOT SERVICED SEPARATELY
  B   USE AS REQUIRED
  F   NOT SHOWN
  M   METRIC PART
