31E9-01050 31N8-12010 31Q9-19140 XKAH-01597 31Q8-10142 31N8-10123 R290 R330 R320 Excavator Swing Reduction Gearbox
Price:
Negotiated
MOQ:
1pc
Delivery Time:
1-3 working Days
Brand:
MENZEH GEARS
Product Description

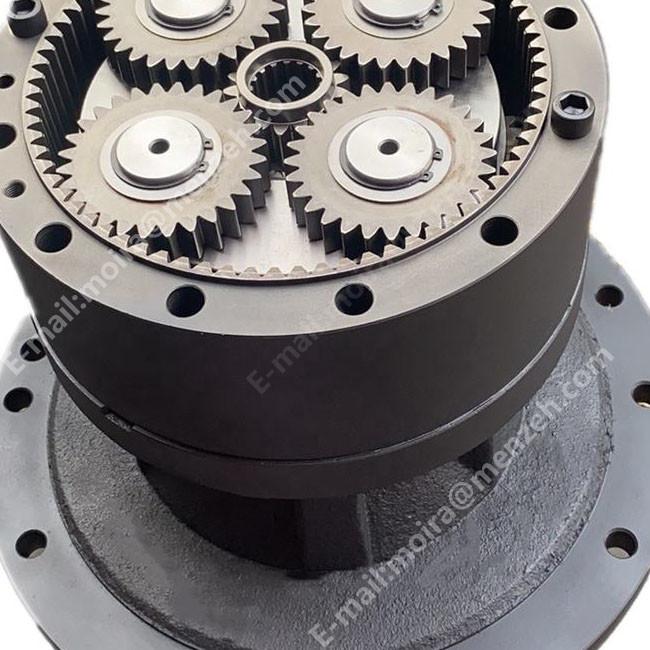

31E9-01050 31N8-12010 31Q9-19140 XKAH-01597 31Q8-10142 31N8-10123 R290 R330 R320 Excavator Swing Reduction Gearbox
| Part Name | Swing Gearbox |
| Part No. | 31E9-01050 31N8-12010 31Q9-19140 XKAH-01597 31Q8-10142 31N8-10123 |
| Used For | R290 R330 R320 |
| Warrenty | 3 months |
| After Warranty | Video technical support Online support Free Spare parts |

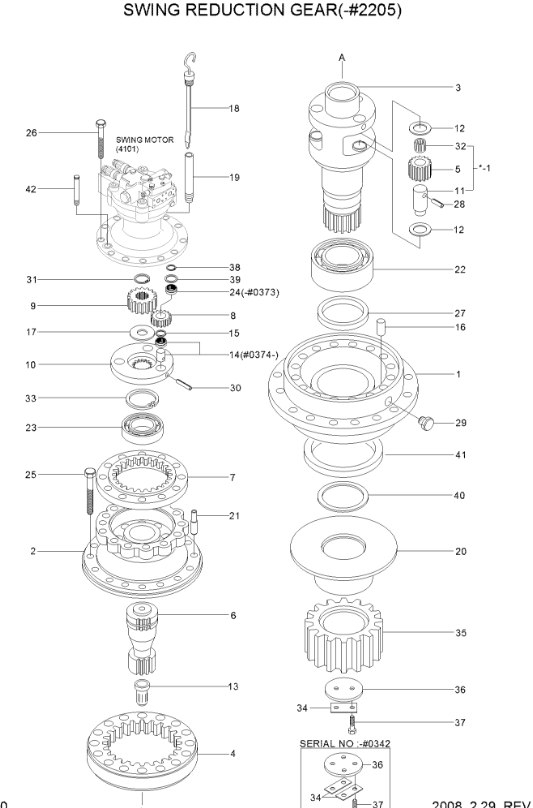

| Pos. | Part No | Qty | Parts name | Comments |
| *. | @ | [1] | SWING MOTOR ASSY | SEE 4100 |
| N*-2. | 31E9-01050 | [1] | SWING REDUCTION GEAR | SB-I-2008-008.PDF |
| N*-2. | 31E9-01051 | [1] | SWING REDUCTION GEAR | SB-I-2008-008.PDF |
| N*-2. | 31E9-01052 | [1] | SWING REDUCTION GEAR | SB-I-2008-008.PDF |
| N1. | XKAQ-00063 | [1] | CASING-FRONT | |
| 1 | XKAQ-00112 | [1] | CASING-FRONT | |
| 1 | XKAQ-00141 | [1] | CASING-FRONT | |
| 1 | XKAQ-00279 | [1] | CASING-FRONT | |
| 1 | XKAQ-00329 | [1] | CASING-FRONT | |
| 2 | XKAQ-00003 | [1] | CASING-MIDDLE | |
| 3 | XKAQ-00004 | [1] | SHAFT-DRIVE | |
| 3 | XKAQ-00328 | [1] | SHAFT-DRIVE | |
| 4 | XKAQ-00006 | [1] | GEAR-RING 2 | |
| 5 | XKAQ-00022 | [3] | GEAR-PLANET 2 | |
| 6 | XKAQ-00062 | [1] | GEAR-2 SUN | |
| 6 | XKAQ-00012 | [1] | GEAR-2 SUN | |
| 7 | XKAQ-00008 | [1] | GEAR-RING 1 | |
| 8 | XKAQ-00024 | [3] | GEAR-PLANET 1 | |
| 8 | XKAQ-00137 | [3] | GEAR-PLANET 1 | |
| 9 | XKAQ-00009 | [1] | GEAR-1 SUN | |
| 9 | XKAQ-00061 | [1] | GEAR-1 SUN | |
| 10 | XKAQ-00016 | [1] | CARRIER | |
| *-1. | XKAQ-00021 | [3] | PIN ASSY NO.2 | |
| N11. | XKAQ-00060 | [3] | PIN ASSY-2 | |
| N32. | XKAQ-00046 | [3] | BUSHING 2 | |
| 12 | XKAQ-00059 | [6] | WASHER-THRUST | |
| 13 | XKAQ-00058 | [1] | BUTTON-THRUST | |
| 14 | XKAQ-00019 | [3] | PIN 1 | |
| 14 | XKAQ-00136 | [3] | PIN ASSY 1 | INC NEEDLE CAGE |
| 15 | XKAQ-00057 | [3] | PLATE-SIDE 1 | |
| 16 | XKAQ-00056 | [4] | MAGNET | |
| 17 | XKAQ-00055 | [1] | PLATE-SIDE 3 | |
| 18 | XKAQ-00054 | [1] | BAR-GAUGE | |
| 18 | XKAQ-00034 | [1] | BAR-GAUGE | |
| 19 | XKAQ-00035 | [1] | PIPE-GAUGE | |
| 20 | XKAQ-00017 | [1] | RING-SPACER | |
| 20 | XKAQ-00111 | [1] | RING-SPACER | |
| 21 | XKAQ-00053 | [4] | PIN-KNOCK | |
| 21 | XKAQ-00053 | [2] | PIN-KNOCK | |
| 22 | XKAQ-00028 | [1] | BEARING-ROLLER | |
| 23 | XKAQ-00027 | [1] | BEARING-ROLLER | |
| 24 | XKAQ-00030 | [3] | CAGE-NEEDLE | |
| 25 | XKAQ-00052 | [16] | BOLT-SOCKET | |
| 26 | XKAQ-00051 | [12] | BOLT-SOCKET | |
| 27 | XKAQ-00033 | [1] | SEAL-OIL | |
| 27 | XKAQ-00138 | [1] | SEAL-OIL | |
| 27 | XKAQ-00280 | [1] | SEAL-OIL | |
| 27 | XKAQ-00330 | [1] | SEAL-OIL | |
| 28 | XKAQ-00050 | [3] | PIN-SPRING | |
| 29 | XKAQ-00049 | [1] | PLUG | |
| 30 | XKAQ-00048 | [3] | PIN-SPRING | |
| 31 | XKAQ-00047 | [1] | RING-STOP | |
| 33 | XKAQ-00045 | [1] | RING-STOP | |
| 34 | XKAQ-00044 | [2] | WASHER-LOCK | |
| 34 | XKAQ-00292 | [1] | WASHER-LOCK | |
| 35 | XKAQ-00013 | [1] | GEAR-PINION | |
| 36 | XKAQ-00043 | [1] | PLATE-LOCK | |
| 36 | XKAQ-00296 | [1] | PLATE-LOCK | |
| 37 | XKAQ-00042 | [4] | BOLT-HEX | |
| 37 | XKAQ-00042 | [2] | BOLT-HEX | |
| 38 | XKAQ-00041 | [3] | RING-STOP | |
| 39 | XKAQ-00040 | [3] | PLATE-SIDE 2 | |
| 40 | XKAQ-00109 | [1] | CIRCLIP | |
| 41 | XKAQ-00110 | [1] | V-SEAL | |
| 42 | XKAQ-00143 | [1] | POST-AIR BREATHER | |
| N. | @ | [1] | NOT SUPPLIED PARTS |
FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.
