31Q6-40020 31Q6-40032 31Q6-40030 39Q6-40101 R220Lc-9S R210-9 Final Drive Reducion Travel Gearbox Parts

Price Negotiable
Price: Negotiated
MOQ: 1pc
Delivery Time: 1-3 working Days
Brand: MENZEH GEARS
Product Description

31Q6-40020 31Q6-40032 31Q6-40030 39Q6-40101 R220Lc-9S R210-9 Final Drive Reducion Travel Gearbox Parts

Part Name Travel Gearbox
Part No. 31Q6-40020 31Q6-40032 31Q6-40030 39Q6-40101
Used For R220Lc-9S R210-9
Warrenty 3 months
After Warranty

Video technical support Online support Free Spare parts

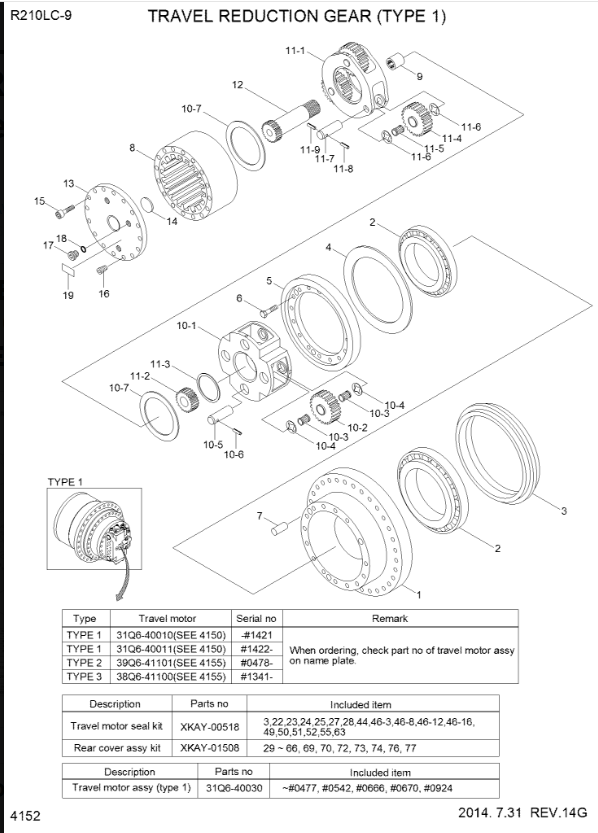

Pos. Part No Qty Parts name Comments
*. @ [1] TRAVEL MOTOR ASSY SEE 4150
*. @ [1] TRAVEL MOTOR ASSY SEE 4150
*-2. 31Q6-40020 [1] TRAVEL REDUCTION GEAR
*-2. 31Q6-40021 [1] TRAVEL REDUCTION GEAR
*-2. 31Q6-40022 [1] T/REDUCTION GEAR
N1. XKAQ-00217 [1] HOUSING
2 XKAQ-00218 [2] BEARING-MAIN
2 XKAQ-00986 [2] BEARING-MAIN
3 XKAQ-00219 [1] SEAL-FLOATING
4 XKAQ-00220 [1] SHIM
5 XKAQ-00221 [1] RETAINER
6 XKAQ-00222 [12] BOLT-HEX
7 XKAQ-00223 [2] PIN-PARALLEL
8 XKAQ-00224 [1] GEAR-RING
9 XKAQ-00225 [1] COUPLING
9 39Q6-42170 [1] COUPLING
10 XKAQ-00226 [1] CARRIER 2 ASSY
10-1. XKAQ-00227 [1] CARRIER 2
10-2. XKAQ-00228 [4] GEAR-PLANET 2
10-3. XKAQ-00229 [8] BEARING-NEEDLE 2
10-4. XKAQ-00230 [8] WASHER-THRUST
10-5. XKAQ-00231 [4] PIN 2
10-6. XKAQ-00232 [4] PIN-SPRING
10-7. XKAQ-00208 [2] RING-THRUST
11 XKAQ-00653 [1] CARRIER ASSY 1
11-1. XKAQ-00234 [1] CARRIER 1
11-2. XKAQ-00235 [1] GEAR-SUN 2
11-3. XKAQ-00236 [1] RING-RETAINING
11-4. XKAQ-00237 [3] GEAR-PLANET 1
11-5. XKAQ-00238 [3] BEARNG-NEEDLE 1
11-6. XKAQ-00657 [6] WASHER-THRUST
11-7. XKAQ-00240 [3] PIN 1
11-8. XKAQ-00241 [3] PIN-SPRING
11-9. XKAQ-00655 [1] PIN-SPRING
12 XKAQ-00402 [1] GEAR-SUN 1
12 XKAQ-00795 [1] GEAR-SUN 1
13 XKAQ-00243 [1] COVER
14 XKAQ-00214 [1] PAD
15 XKAQ-00244 [20] BOLT-SOCKET
16 XKAQ-00245 [2] SCREW-HEX SOCKET
17 XKAQ-00246 [3] PLUG-HYDRAULIC
18 XKAQ-00247 [3] O-RING
19 XKAQ-00248 [1] NAME PLATE
19 XKAQ-00990 [1] NAME PLATE
N. @ [AR] NOT SUPPLIED PARTS












FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.
