708-7T-00160 22H-60-13201 20T-26-00110 PC56 PC55 PC55UU PC50UU PC40 Swing Reduction Gearbox
Price:
Negotiated
MOQ:
1pc
Delivery Time:
1-3 working Days
Brand:
MENZEH GEARS
Product Description

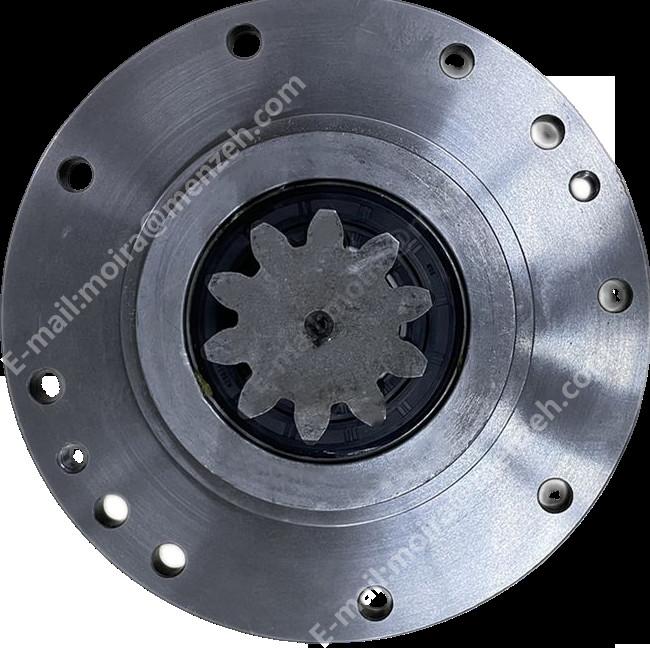

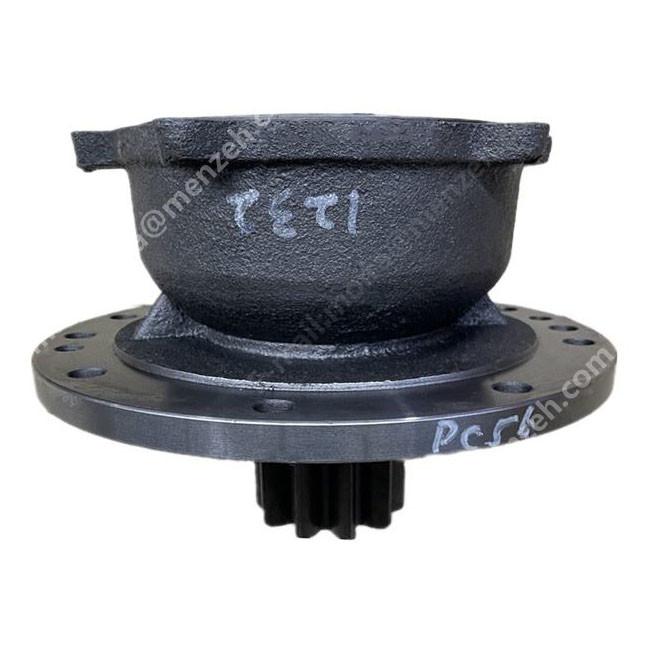

708-7T-00160 22H-60-13201 20T-26-00110 PC56 PC55 PC55UU PC50UU PC40 Swing Reduction Gearbox
| Part Name | Swing Gearbox |
| Part No. | 708-7T-00160 22h-60-13201 20T-26-00110 |
| Used For | PC56 PC55 PC55UU PC50UU PC40 |
| Warrenty | 3 months |
| After Warranty | Video technical support Online support Free Spare parts |

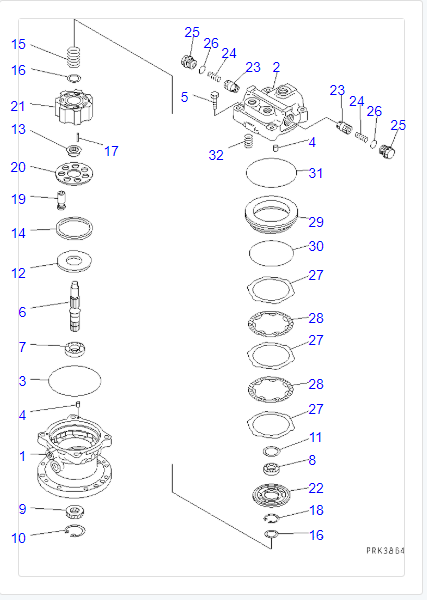

| Pos. | Part No | Qty | Parts name | Comments |
| 708-7T-00160 | [1] | SWING MOTOR ASS'Y Komatsu China | ||
| ["SN: 10835-14992"] |$1. | ||||
| 1. | 708-7T-11240 | [1] | ,MOTOR Komatsu | 7.932 kg. |
| ["SN: 10835-14992"] | ||||
| 2. | 708-7T-11650 | [1] | COVER,END Komatsu China | |
| ["SN: 10835-14992"] | ||||
| 3. | 708-7T-51210 | [1] | O-RING Komatsu | 0.01 kg. |
| ["SN: 10835-14992"] | ||||
| 4. | 720-68-19610 | [3] | PIN Komatsu | 0.002 kg. |
| ["SN: 10835-14992"] | ||||
| 5. | 01010-81250 | [4] | BOLT Komatsu | 0.061 kg. |
| ["SN: 10835-14992"] analogs:["0101051250"] | ||||
| 6. | 708-7T-12310 | [1] | SHAFT Komatsu China | |
| ["SN: 10835-14992"] | ||||
| 7. | 708-7T-12240 | [1] | BEARING Komatsu China | |
| ["SN: 10835-14992"] analogs:["890001364"] | ||||
| 8. | 708-7T-12250 | [1] | BEARING Komatsu China | |
| ["SN: 10835-14992"] analogs:["890001365"] | ||||
| 9. | 708-7T-12230 | [1] | SEAL,OIL Komatsu | 0.04 kg. |
| ["SN: 10835-14992"] | ||||
| 10. | 04065-04518 | [1] | RING,SNAP Komatsu | 0.006 kg. |
| ["SN: 10835-14992"] | ||||
| 11. | 708-7T-05020 | [1] | SPACER KIT Komatsu | 0.01 kg. |
| ["SN: 10835-14992"] | ||||
| 12. | 708-7T-13421 | [1] | PLATE,THRUST Komatsu | 0.33 kg. |
| ["SN: 10835-14992"] | ||||
| 13. | 708-7T-13510 | [1] | GUIDE,RETAINER Komatsu China | |
| ["SN: 10835-14992"] analogs:["890001157", "PZF890001157"] | ||||
| 14. | 708-7T-13710 | [1] | SPACER Komatsu China | |
| ["SN: 10835-14992"] analogs:["890001381"] | ||||
| 15. | 708-7T-13570 | [1] | SPRING Komatsu China | |
| ["SN: 10835-14992"] analogs:["890001378"] | ||||
| 16. | 708-7T-13530 | [2] | WASHER Komatsu China | |
| ["SN: 10835-14992"] analogs:["890001158", "PZF890001158"] | ||||
| 17. | 708-7T-13540 | [3] | PIN Komatsu China | |
| ["SN: 10835-14992"] analogs:["890001159", "PZF890001159"] | ||||
| 18. | 04065-03815 | [1] | RING,SNAP Komatsu | 0.004 kg. |
| ["SN: 10835-14992"] | ||||
| 19. | 708-7T-13611 | [7] | PISTON SUB ASS'Y Komatsu China | |
| ["SN: 10835-14992"] | ||||
| 20. | 708-7T-13342 | [1] | RETAINER,SHOE Komatsu China | |
| ["SN: 10835-14992"] analogs:["890001163", "PZF890001163", "R7087T13342"] | ||||
| 21. | 708-7T-13140 | [1] | BLOCK,CYLINDER Komatsu China | |
| ["SN: 10835-14992"] analogs:["890001170", "890001376", "PZF890001170", "7087T13121", "7087T13120"] | ||||
| 22. | 708-7T-13261 | [1] | PLATE,VALVE Komatsu China | |
| ["SN: 10835-14992"] analogs:["7087T13260"] | ||||
| 23. | 706-73-72420 | [2] | VALVE Komatsu China | |
| ["SN: 10835-14992"] | ||||
| 24. | 706-73-72440 | [2] | SPRING Komatsu China | |
| ["SN: 10835-14992"] | ||||
| 25. | 706-73-72430 | [2] | PLUG Komatsu China | |
| ["SN: 10835-14992"] | ||||
| 26. | 07002-12434 | [2] | O-RING Komatsu China | 0.01 kg. |
| ["SN: 10835-14992"] analogs:["0700202434", "0700213434"] | ||||
| 27. | 708-7T-52512 | [3] | PLATE Komatsu China | |
| ["SN: 10835-14992"] analogs:["890001382"] | ||||
| 28. | 708-7T-15120 | [2] | DISC Komatsu China | |
| ["SN: 10835-14992"] analogs:["890001383"] | ||||
| 29. | 708-7T-15140 | [1] | PISTON,BRAKE Komatsu China | |
| ["SN: 10835-14992"] analogs:["890001384"] | ||||
| 30. | 07000-12130 | [1] | O-RING Komatsu OEM | 0.004 kg. |
| ["SN: 10835-14992"] analogs:["0700002130E", "0700002130", "0700012030", "R0700012130"] | ||||
| 31. | 708-7T-55220 | [1] | O-RING Komatsu | 0.012 kg. |
| ["SN: 10835-14992"] | ||||
| 32. | 708-7T-15150 | [4] | SPRING Komatsu China | |
| ["SN: 10835-14992"] analogs:["890001387"] | ||||
FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.
