9148921 2028036 4486217 2031003 2031108 EX100-5 EX120-5 Swing Device Without Motor Slew Gearbox

Price Negotiable
Price: Negotiated
MOQ: 1pc
Delivery Time: 1-3 working Days
Brand: MENZEH GEARS
Product Description

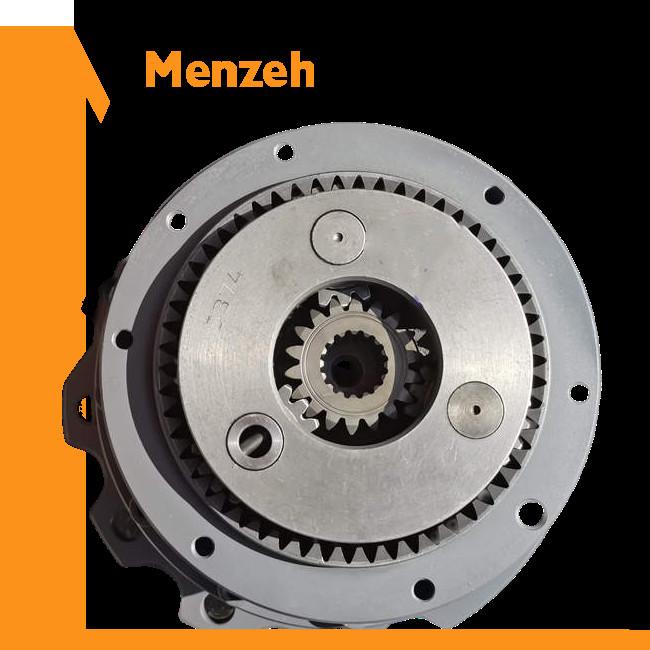

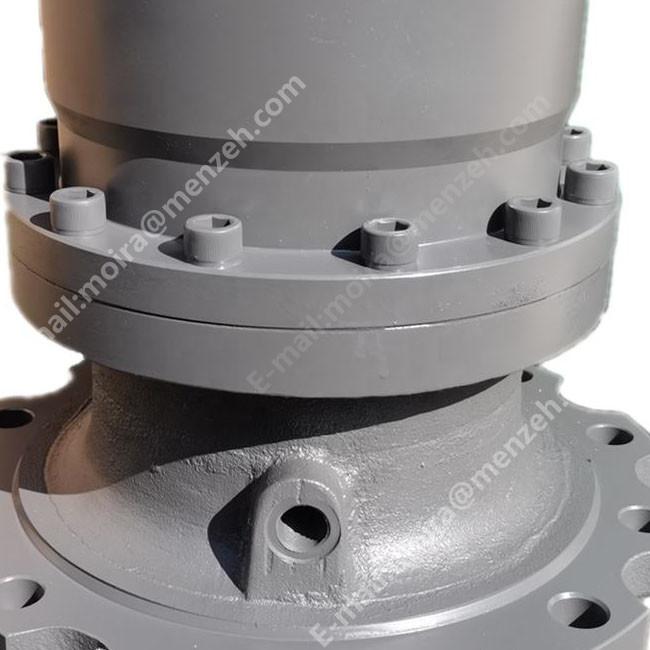

9148921 2028036 4486217 2031003 2031108 EX100-5 EX120-5 Swing Device Without Motor Slew Gearbox

Part Name Swing Gearbox
Part No. 9148921 2028036 2031003 2031108
Used For EX100-5 EX120-5
Warrenty 3 months
After Warranty Video technical support Online support Free Spare parts

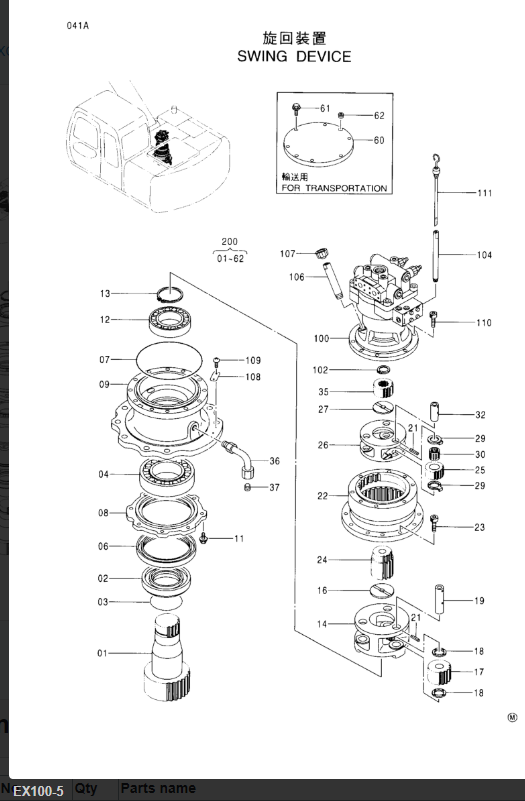

Pos. Part No Qty Parts name Comments
1 2028036 [1] SHAFT;PROP.
1 2036830 [1] SHAFT;PROP. Y 2028036
2 4244693 [1] SLEEVE
3 A811100 [1] O-RING
4 4248609 [1] BRG.;SPH.ROL.
6 4244691 [1] SEAL;OIL
7 4247567 [1] O-RING
8 3058620 [1] COVER
9 1020380 [1] HOUSING
11 J011035 [8] BOLT;SEMS
12 4293424 [1] BRG.;SPH.ROL.
13 991350 [1] RING;RETAINING
14 2036804 [1] CARRIER
16 4258089 [1] PLATE;THRUST
17 9742788 [3] GEAR;PLANETARY
18 4266255 [6] PLATE;THRUST
19 4337638 [3] PIN
21 4116308 [6] PIN;SPRING
22 2036811 [1] GEAR;RING
23 M341440 [12] BOLT;SOCKET
24 3069697 [1] GEAR;SUN
25 3069725 [3] GEAR;PLANETARY
26 2036832 [1] CARRIER
27 4176070 [1] PLATE;THRUST
29 4269480 [6] PLATE;THRUST
30 4330377 [3] BRG.;NEEDLE
32 4337637 [3] PIN
35 3069727 [1] GEAR;SUN
36 8050210 [1] PIPE
37 94-2012 [1] PLUG
60 8065302 [1] COVER(for transportation)
61 J011050 [8] BOLT;SEMS(for transportation)
62 94-2011 [1] PLUG(for transportation)
100 4330218 [1] MOTOR;OIL
102 927488 [1] RING;RETAINING
104 4264452 [1] PIPE
106 4255227 [1] PIPE
107 4298608 [1] CAP
108 3053093 [1] NAME-PLATE
109 M492564 [2] SCREW;DRIVE
110 M341025 [7] BOLT;SOCKET
111 3074223 [1] GAUGE;LEVEL
200 9148921 [1] SWING DEVICE(WITHOUT MOTOR)













FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.
