YN32W01125P1 YN32W01132P1 YN15V00037S005 YN15V00037S007 SK210-9 SK230SR-3 Reduction Assy Swing Device Gearbox Parts
Price:
Negotiated
MOQ:
1pc
Delivery Time:
1-3 working Days
Brand:
MENZEH GEARS
Product Description
YN32W01125P1 YN32W01132P1 YN15V00037S005 YN15V00037S007 SK210-9 SK230SR-3 Reduction Assy Swing Device Gearbox Parts
| Part Name | Swing Gearbox |
| Part No. | YN32W01125P1 YN32W01132P1 YN15V00037S005 YN15V00037S007 |
| Used For | SK210-9 SK230SR-3 |
| Warrenty | 3 months |
| After Warranty | Video technical support Online support Free Spare parts |

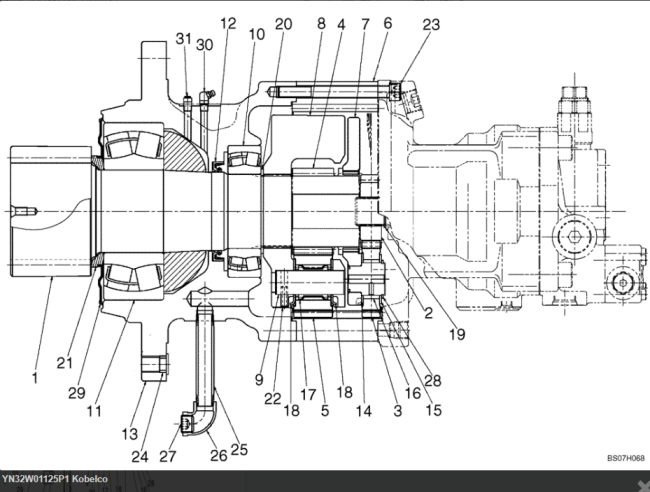

| Pos. | Part No | Qty | Parts name | Comments |
| 1 | YN32W01125P1 | [1] | GEAR | SM Shaft |
| 2 | YN32W01136P1 | [1] | GEAR | SM |
| 3 | YN32W01135P1 | [3] | GEAR | SM Pinion |
| 4 | YN32W01126P1 | [1] | GEAR | SM |
| 5 | YN32W01143P1 | [4] | GEAR | SM |
| 6 | YN32W01127P1 | [1] | GEAR | SM Ring |
| 7 | YN32W01123F1 | [1] | SPIDER | KOB Gear, Incl 7-1 - 7-2 |
| 7-1. | NSS | [1] | NOT SOLD SEPARAT | CON Spider, Incl in 7 |
| 7-2. | NSS | [3] | NOT SOLD SEPARAT | CON Shaft, Incl in 7 |
| 8 | YN32W01130P1 | [1] | PLANET CARRIER | SM |
| 9 | YN32W01131P1 | [4] | SHAFT | SM |
| 10 | YN32W01030P1 | [1] | SPHERICAL BEARING | KOB Superseded by part number: 25Z804D18 |
| 11 | YN32W01029P1 | [1] | SPHERICAL BEARING | KOB Superseded by part number: R25P0047D9 |
| 12 | YN32W01060P1 | [1] | OIL SEAL | SM |
| 13 | YN32W01132P1 | [1] | BOX | SM |
| 14 | YN32W01026P1 | [3] | THRUST WASHER | KOB |
| 15 | YN32W01028P1 | [3] | THRUST WASHER | KOB |
| 16 | YN32W01022P1 | [102] | ROLLER | KOB |
| 17 | YN32W01072P1 | [4] | NEEDLE BEARING | SM |
| 18 | YN32W01063P1 | [8] | WASHER | SM |
| 19 | 11068370 | [1] | SNAP RING | MKT Retaining, ID 32.20 x OD 35 x Th 1.6mm Superseded by part number: 11068375 |
| 20 | ZR16X09000 | [1] | RING | KOB Retaining, ID 84.50 x OD 108 x 3.0mm |
| 21 | YN32W01133P1 | [1] | SLEEVE | SM |
| 22 | 72210023 | [4] | PIN | SM Roll Superseded by part number: ZP26D08025 |
| 23 | 72210021 | [11] | SCREW,Hex Socket Head, M14 x 130mm | SM Screw M14x2.0x135mm, (ZS23C14130) Superseded by part number: ZS23C14130 |
| 24 | PV02B01073DB | [2] | CAP | KOB 18.4mm Plastic |
| 25 | YN32W01080D5 | [1] | RIGID TUBE | SM 1/2" PT x 112mm Long |
| 26 | ZG31U08000 | [1] | HYD CONNECTOR | SM Elbow, 90° -- 1/2" PT |
| 27 | 72210000 | [1] | PLUG | SM 1/2" PT, (ZE82T08000) Superseded by part number: ZE82T08000 |
| 28 | 72211282 | [3] | SNAP RING | SM Retaining, ID 37 x OD 40 x Th 1.8mm, (ZR16X04000) Superseded by part number: ZR16X04000 |
| 29 | YN32W01081P1 | [1] | OIL SEAL | SM |
| 30 | 72283072 | [1] | LUBE NIPPLE,67 Degree x 1/8" PT | IMO 67° x 1/8" PT, (ZG91V02000) Superseded by part number: ZG91V02000 |
| 31 | 72210250 | [1] | PLUG | IMO 1/8"PT, (ZE82T02000) Superseded by part number: ZE82T02000 |
FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.
