20Y-27-22160 20Y-26-21150 20Y-26-21160 PC200-6 6D102 BR200J BR200S BR200T BR250RG BR300J BR310JG 1St Travel Carrier Assy
Price:
Negotiated
MOQ:
1pc
Delivery Time:
1-3 working Days
Brand:
MENZEH GEARS
Product Description

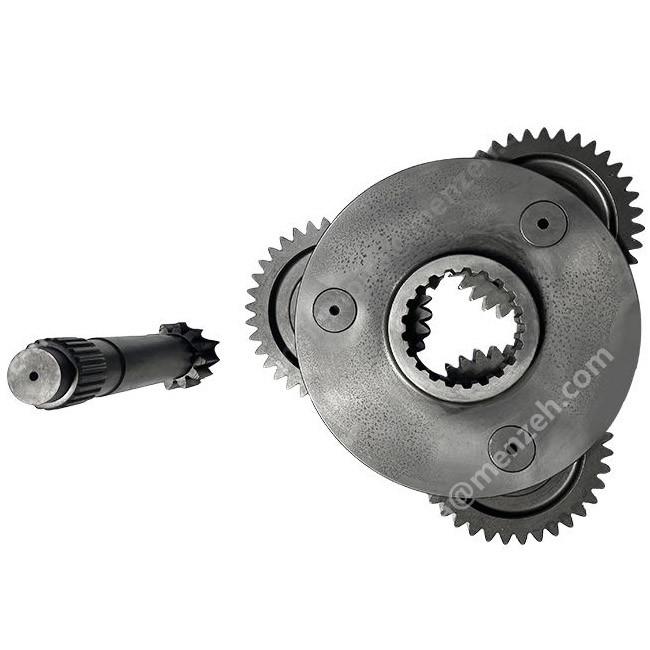

20Y-27-22160 20Y-26-21150 20Y-26-21160 PC200-6 6D102 BR200J BR200S BR200T BR250RG BR300J BR310JG 1St Travel Carrier Assy Final Drive Part Carrier Gear
| Part Name | Carrier Gear |
| Part No. | 20Y-27-22160 20Y-26-21150 20Y-26-21160 |
| Used For | PC200-6 6D102 BR200J BR200S BR200T BR250RG BR300J BR310JG |
| Warrenty | 3 months |
| After Warranty | Video technical support Online support Free Spare parts |

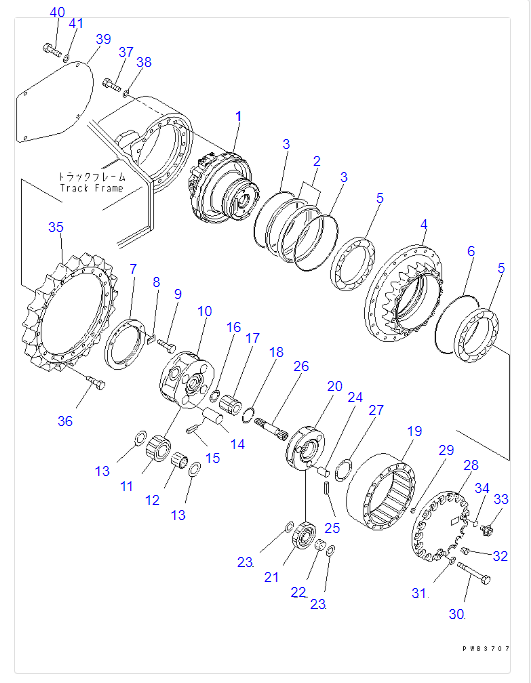

| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 708-8F-00111 | [2] | MOTOR ASS'Y Komatsu | 102.801 kg. |
| ["SN: 110673-UP"] analogs:["7088F00110"] | ||||
| 1 | 708-8F-00110 | [2] | MOTOR ASS'Y Komatsu | 102.801 kg. |
| ["SN: 98409-110672"] analogs:["7088F00111"] | ||||
| 1 | 708-8F-00061 | [2] | MOTOR ASS'Y Komatsu China | |
| ["SN: 97792-98408"] analogs:["7088F00060"] | ||||
| [-1] | (708-8F-00110,20Y-27-22181,20Y-27-22261) | |||
| |$$4. | ||||
| 1 | 708-8F-00060 | [2] | MOTOR ASS'Y Komatsu China | |
| ["SN: 91087-97791"] analogs:["7088F00061"] | ||||
| 150-27-00330 | [2] | FLOATING SEAL ASS'Y Komatsu China | 2.99 kg. | |
| ["SN: 99850-UP"] analogs:["1502700029", "1502700410"] |$17. | ||||
| 150-27-00029 | [2] | FLOATING SEAL ASS'Y Komatsu China | 2.99 kg. | |
| ["SN: 83115-99849"] analogs:["1502700330", "1502700410"] |$18. | ||||
| 4 | 20Y-27-22181 | [2] | HUB Komatsu | 78 kg. |
| ["SN: 98409-UP"] | ||||
| 4 | 20Y-27-22180 | [2] | HUB Komatsu China | |
| ["SN: 91087-98408"] | ||||
| 5 | 20Y-27-22230 | [4] | BEARING Komatsu | 4.6 kg. |
| ["SN: 91087-UP"] | ||||
| 6 | 20Y-27-22280 | [2] | O-RING Komatsu China | 0.02 kg. |
| ["SN: 91087-UP"] | ||||
| 7 | 20Y-27-22261 | [2] | LOCK Komatsu | 5.22 kg. |
| ["SN: 98409-UP"] | ||||
| 7 | 20Y-27-22260 | [2] | LOCK Komatsu | 4.05 kg. |
| ["SN: 91087-98408"] | ||||
| 8 | 20Y-27-22270 | [2] | LOCK Komatsu | 0.07 kg. |
| ["SN: 91087-UP"] | ||||
| 9 | 01010-81020 | [4] | BOLT Komatsu | 0.161 kg. |
| ["SN: 91087-UP"] analogs:["801014093", "0101051020", "801015108"] | ||||
| 10 | 20Y-27-22170 | [2] | CARRIER Komatsu China | 20.4 kg. |
| ["SN: 91087-UP"] | ||||
| 11 | 20Y-27-22140 | [8] | GEAR Komatsu China | 3.72 kg. |
| ["SN: 91087-UP"] | ||||
| 12 | 20Y-27-22220 | [8] | BEARING Komatsu China | 0.3 kg. |
| ["SN: 91087-UP"] analogs:["20Y2721270"] | ||||
| 13 | 20Y-27-21250 | [16] | WASHER Komatsu China | 0.03 kg. |
| ["SN: 91087-UP"] | ||||
| 14 | 20Y-27-21230 | [8] | PIN Komatsu | 1.54 kg. |
| ["SN: 91087-UP"] | ||||
| 15 | 20Y-27-21290 | [8] | PIN Komatsu OEM | 0.03 kg. |
| ["SN: 91087-UP"] | ||||
| 16 | 20Y-27-13310 | [2] | WASHER Komatsu China | 0.08 kg. |
| ["SN: 80001-UP"] | ||||
| 17 | 20Y-27-22130 | [2] | GEAR Komatsu China | 1.75 kg. |
| ["SN: 91087-UP"] | ||||
| 18 | 20Y-27-22240 | [2] | WASHER Komatsu China | 0.03 kg. |
| ["SN: 91087-UP"] | ||||
| 19 | 20Y-27-22150 | [2] | GEAR Komatsu | 43.7 kg. |
| ["SN: 91087-UP"] analogs:["20Y2722151"] | ||||
| 20 | 20Y-27-22160 | [2] | CARRIER Komatsu OEM | 6 kg. |
| ["SN: 91087-UP"] | ||||
| 21 | 20Y-27-22120 | [6] | GEAR Komatsu China | 2.5 kg. |
| ["SN: 91087-UP"] | ||||
| 22 | 20Y-27-22210 | [6] | BEARING Komatsu China | 0.12 kg. |
| ["SN: 91087-UP"] analogs:["20Y2721260"] | ||||
| 23 | 20Y-27-21240 | [12] | WASHER Komatsu China | 0.02 kg. |
| ["SN: 80001-UP"] | ||||
| 24 | 20Y-27-21220 | [6] | PIN Komatsu China | 0.411 kg. |
| ["SN: 80001-UP"] | ||||
| 25 | 20Y-27-21280 | [6] | PIN Komatsu China | 0.01 kg. |
| ["SN: 80001-UP"] | ||||
| 26 | 20Y-27-22110 | [2] | SHAFT Komatsu China | 1.4 kg. |
| ["SN: 91087-UP"] analogs:["20Y2731140"] | ||||
| 27 | 20Y-27-21310 | [2] | WASHER Komatsu China | 0.17 kg. |
| ["SN: 80001-UP"] | ||||
| 28 | 20Y-27-22250 | [2] | BUTTON Komatsu China | 0.05 kg. |
| ["SN: 91087-UP"] | ||||
| 29 | 20Y-27-22190 | [2] | COVER Komatsu | 17.6 kg. |
| ["SN: 91087-UP"] | ||||
| 30 | 20Y-27-13281 | [36] | BOLT Komatsu | 0.31 kg. |
| ["SN: 91087-UP"] | ||||
| 31 | 01643-31645 | [36] | WASHER Komatsu | 0.072 kg. |
| ["SN: 80001-UP"] analogs:["802170005", "0164301645"] | ||||
| 32 | 07049-01012 | [4] | PLUG Komatsu | 0.001 kg. |
| ["SN: 91087-UP"] | ||||
| 33 | 07044-12412 | [4] | PLUG Komatsu | 0.09 kg. |
| ["SN: 80001-UP"] analogs:["0704402412", "R0704412412"] | ||||
| 34 | 07002-02434 | [4] | O-RING Komatsu China | 0.01 kg. |
| ["SN: 80001-UP"] analogs:["0700212434", "0700213434"] | ||||
| 35 | 20Y-27-11582 | [2] | SPROCKET Komatsu China | 36.2 kg. |
| ["SN: 108386-UP"] analogs:["20Y2711581", "20Y27K1110", "20Y2777110"] | ||||
| 35 | 20Y-27-11581 | [2] | SPROCKET Komatsu China | 36.2 kg. |
| ["SN: 80001-108385"] analogs:["20Y2711582", "20Y27K1110", "20Y2777110"] | ||||
| 36 | 20Y-27-11561 | [40] | BOLT Komatsu China | 0.14 kg. |
| ["SN: 80001-UP"] | ||||
| 37 | 01010-61660 | [36] | BOLT Komatsu | 0.127 kg. |
| ["SN: 92578-UP"] analogs:["0101031660", "0101081660"] | ||||
| 37 | 01010-61670 | [36] | BOLT Komatsu | 0.142 kg. |
| ["SN: 91087-92577"] analogs:["0101031670", "0101051670", "0101081670"] | ||||
| 39 | 20Y-30-21191 | [2] | COVER Komatsu | 12.25 kg. |
| ["SN: 106778-UP"] | ||||
| 39 | 20Y-30-21190 | [2] | COVER Komatsu China | |
| ["SN: 91087-106777"] | ||||
| 40 | 01010-81230 | [8] | BOLT Komatsu | 0.043 kg. |
| ["SN: 91087-UP"] analogs:["0101051230", "01010B1230"] | ||||
| 41 | 01643-31232 | [8] | WASHER Komatsu | 0.027 kg. |
| ["SN: 91087-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"] | ||||
FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount),Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all ,we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely , or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass’y/parts, swing gearbox/ass’y. If you need other excavator parts, we also can supply as your requirements.
