22U-26-21570 22U-26-21572 203-26-51142 Pc200-7 PC200 PC210 PC228 PC228US Swing Gear Carrier Assy
Price:
Negotiated
MOQ:
1pc
Delivery Time:
1-3 working Days
Brand:
MENZEH GEARS
Product Description

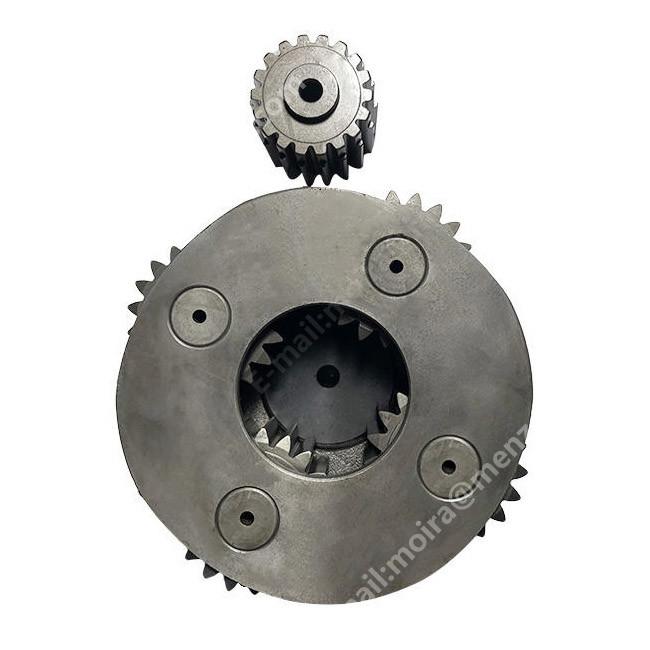

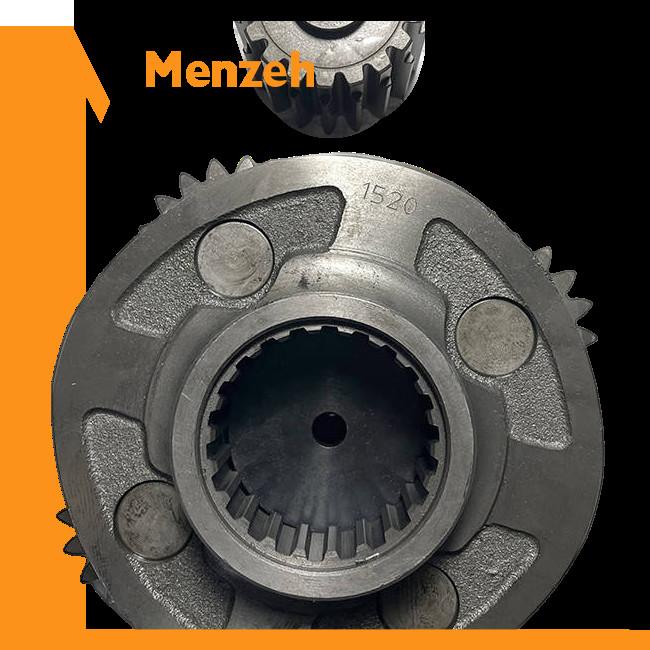

22U-26-21570 22U-26-21572 203-26-51142 Pc200-7 PC200 PC210 PC228 PC228US Swing Gear Carrier Assy And Sun Gear 1st Carrier Planet
| Part Name | Swing Gear Carrier Assy |
| Part No. | 22U-26-21570 22U-26-21572 203-26-51142 |
| Used For | Pc200-7 PC200 PC210 PC228 PC228US |
| Warrenty | 3 months |
| After Warranty | Video technical support Online support Free Spare parts |

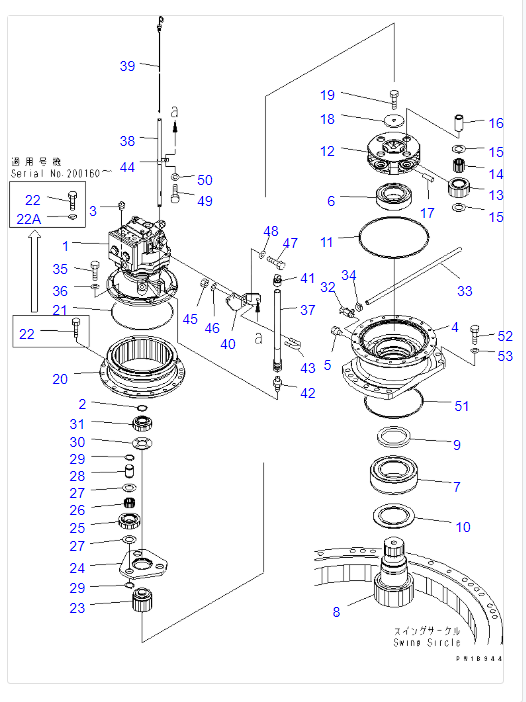

| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 706-7G-01050 | [1] | MOTOR ASS'Y Komatsu China | |
| ["SN: C70001--UP"] | ||||
| 2 | 22U-26-21280 | [1] | RING Komatsu | 0.001 kg. |
| ["SN: C70001--UP"] analogs:["20Y2622270"] | ||||
| 3 | 07042-00312 | [1] | PLUG Komatsu | 0.031 kg. |
| ["SN: C70001--UP"] analogs:["0704210312"] | ||||
| 4 | 22U-26-21190 | [1] | Komatsu China | |
| ["SN: C70001--UP"] | ||||
| 5 | 07029-00000 | [1] | VALVE Komatsu | 0.09 kg. |
| ["SN: C70001--UP"] analogs:["6127613890"] | ||||
| 6 | 20Y-26-22330 | [1] | BEARING Komatsu China | 3.28 kg. |
| ["SN: C70001--UP"] analogs:["20Y2622331", "20Y2622430"] | ||||
| 7 | 22U-26-21340 | [1] | BEARING Komatsu China | |
| ["SN: C70001--UP"] | ||||
| 8 | 22U-26-21560 | [1] | SHAFT, 15 TEETH Komatsu China | |
| ["SN: C70001--UP"] | ||||
| 9 | 07012-00115 | [1] | OIL SEAL Komatsu | 0.127 kg. |
| ["SN: C70001--UP"] | ||||
| 10 | 22U-26-21270 | [1] | SPACER Komatsu China | |
| ["SN: C70001--UP"] | ||||
| 11 | 07000-15310 | [1] | O-RING Komatsu China | 0.035 kg. |
| ["SN: C70001--UP"] analogs:["0700005310"] | ||||
| 12 | 22U-26-21580 | [1] | CARRIER Komatsu | 8.7 kg. |
| ["SN: C70001--UP"] | ||||
| 13 | 22U-26-21540 | [4] | GEAR Komatsu | 2.46 kg. |
| ["SN: C70001--UP"] | ||||
| 14 | 20G-26-11240 | [4] | BEARING Komatsu China | 0.24 kg. |
| ["SN: C70001--UP"] analogs:["20G2611241", "20G2611410"] | ||||
| 15 | 20Y-27-21240 | [8] | WASHER Komatsu China | 0.02 kg. |
| ["SN: C70001--UP"] | ||||
| 16 | 20Y-26-22250 | [4] | PIN Komatsu China | 0.52 kg. |
| ["SN: C70001--UP"] | ||||
| 17 | 20Y-27-21280 | [4] | PIN Komatsu China | 0.01 kg. |
| ["SN: C70001--UP"] | ||||
| 18 | 20Y-26-21240 | [1] | PLATE Komatsu | 5.1 kg. |
| ["SN: C70001--UP"] | ||||
| 19 | 112-32-11211 | [1] | BOLT, SHOE Komatsu | 0.09 kg. |
| ["SN: C70001--UP"] | ||||
| 20 | 22U-26-21550 | [1] | GEAR Komatsu | 25.41 kg. |
| ["SN: C70001--UP"] analogs:["22U2621551K2", "22U2621551"] | ||||
| 21 | 20K-22-11190 | [1] | O-RING Komatsu | 0.02 kg. |
| ["SN: C70001--UP"] analogs:["20G2211190"] | ||||
| 22 | 01010-81440 | [18] | BOLT Komatsu | 0.073 kg. |
| ["SN: C70001--UP"] analogs:["0101061440", "0101031440", "0101051440", "0104031440"] | ||||
| 22A. | 01643-31445 | [18] | WASHER Komatsu | 0.019 kg. |
| ["SN: C70001--UP"] analogs:["0164301432"] | ||||
| 23 | 22U-26-21530 | [1] | GEAR Komatsu | 5.8 kg. |
| ["SN: C70001--UP"] | ||||
| 24 | 22U-26-21570 | [1] | CARRIER Komatsu | 2.96 kg. |
| ["SN: C70001--UP"] analogs:["22U2621572"] | ||||
| 25 | 22U-26-21520 | [3] | GEAR Komatsu | 1.54 kg. |
| ["SN: C70001--UP"] | ||||
| 26 | 20Y-26-21281 | [3] | BEARING Komatsu | 0.1 kg. |
| ["SN: C70001--UP"] analogs:["20Y2621280", "20X2621240", "20Y2621510"] | ||||
| 27 | 22U-26-21230 | [6] | WASHER, THRUST Komatsu | 1 kg. |
| ["SN: C70001--UP"] | ||||
| 28 | 22U-26-21210 | [3] | PIN Komatsu | 0.81 kg. |
| ["SN: C70001--UP"] | ||||
| 29 | 04064-03515 | [6] | SNAP RING Komatsu | 0.005 kg. |
| ["SN: C70001--UP"] | ||||
| 30 | 22U-26-21250 | [1] | WASHER, THRUST Komatsu | 1 kg. |
| ["SN: C70001--UP"] | ||||
| 31 | 22U-26-21510 | [1] | GEAR Komatsu | 1.56 kg. |
| ["SN: C70001--UP"] | ||||
| 32 | 195-03-13241 | [1] | VALVE Komatsu | 0.9 kg. |
| ["SN: C70001--UP"] | ||||
| 33 | 07270-21560 | [1] | TUBE Komatsu | 0.336 kg. |
| ["SN: C70001--UP"] | ||||
| 34 | 07281-00197 | [1] | CLAMP Komatsu | 0.015 kg. |
| ["SN: C70001--UP"] analogs:["1950313250"] | ||||
| 35 | 01010-81035 | [6] | BOLT Komatsu | 0.033 kg. |
| ["SN: C70001--UP"] analogs:["801015556", "01010D1035", "0101051035"] | ||||
| 36 | 01643-51032 | [6] | WASHER Komatsu | 0.17 kg. |
| ["SN: C70001--UP"] analogs:["R0164351032"] | ||||
| 37 | 20Y-26-31410 | [1] | TUBE Komatsu China | |
| ["SN: C70001--UP"] | ||||
| 38 | 20Y-26-31420 | [1] | FILLER Komatsu China | |
| ["SN: C70001--UP"] | ||||
| 39 | 20Y-26-31430 | [1] | GAUGE Komatsu | 0.15 kg. |
| ["SN: C70001--UP"] | ||||
| 40 | 20Y-26-31441 | [1] | BRACKET Komatsu | 0.88 kg. |
| ["SN: C70001--UP"] | ||||
| 41 | 22U-26-21460 | [1] | CAP Komatsu | 0.06 kg. |
| ["SN: C70001--UP"] analogs:["22U2621920"] | ||||
| 42 | 07238-10630 | [1] | CONNECTOR Komatsu | 0.24 kg. |
| ["SN: C70001--UP"] | ||||
| 43 | 07283-32738 | [1] | CLIP Komatsu | 0.084 kg. |
| ["SN: C70001--UP"] | ||||
| 44 | 04434-51710 | [1] | CLIP Komatsu | 0.02 kg. |
| ["SN: C70001--UP"] | ||||
| 45 | 01597-01009 | [2] | NUT Komatsu | 0.011 kg. |
| ["SN: C70001--UP"] | ||||
| 46 | 01643-31032 | [2] | WASHER Komatsu | 0.054 kg. |
| ["SN: C70001--UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"] | ||||
| 47 | 01010-81030 | [2] | BOLT Komatsu OEM | 0.03 kg. |
| ["SN: C70001--UP"] analogs:["801015110", "M018011000306", "YM26116100302", "0101051030"] | ||||
| 49 | 01010-81025 | [1] | BOLT Komatsu | 0.36 kg. |
| ["SN: C70001--UP"] analogs:["0101051025", "0101651025", "801015109"] | ||||
| 51 | 07000-15240 | [1] | O-RING Komatsu OEM | 0.055 kg. |
| ["SN: C70001--UP"] analogs:["0700005240"] | ||||
| 52 | 01010-82060 | [12] | BOLT Komatsu China | 0.2 kg. |
| ["SN: C70001--UP"] analogs:["0101062060", "0101052060", "0101032060"] | ||||
| 53 | 01643-32060 | [12] | WASHER Komatsu China | 0.044 kg. |
| ["SN: C70001--UP"] analogs:["802170007", "0164322045", "0164302045"] | ||||
FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.
