203-26-61130 20Y-27-21153 20Y-27-21140 20N-35-71200 Pc120-6 Pc130-7 Sy135 Swing Reducton Gear 2nd Swing Carrier Assy
Price:
Negotiated
MOQ:
1pc
Delivery Time:
1-3 working Days
Brand:
MENZEH GEARS
Product Description

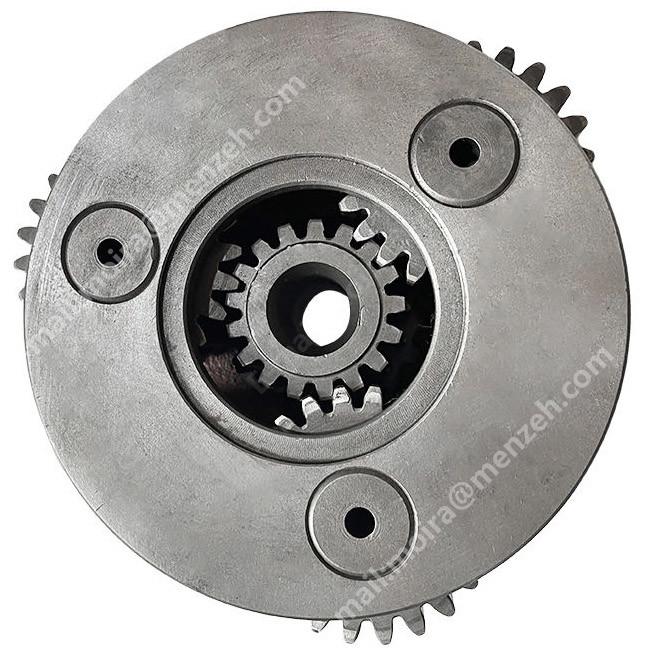

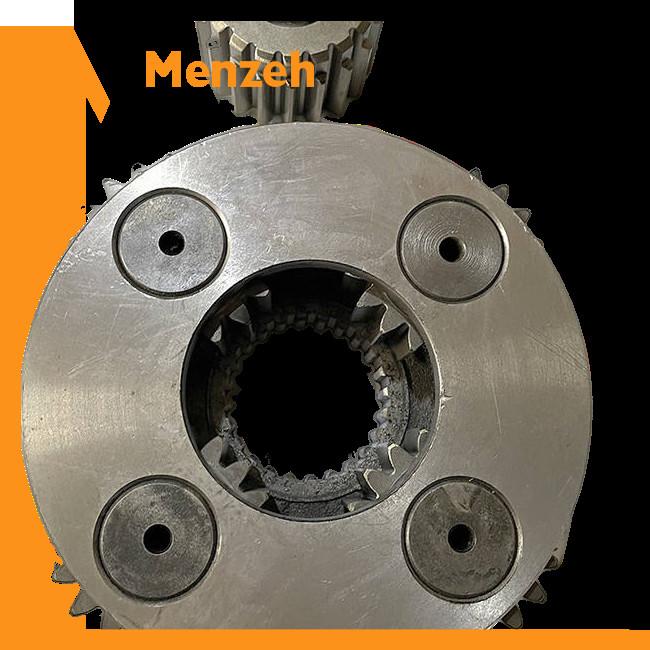

203-26-61130 20Y-27-21153 20Y-27-21140 20N-35-71200 Pc120-6 Pc130-7 Sy135 Swing Reducton Gear 2nd Swing Carrier Assy
| Part Name | Carrier |
| Part No. | 203-26-61130 20Y-27-21153 20Y-27-21140 20N-35-71200 |
| Used For | Pc120-6 Pc130-7 Sy135 |
| Warrenty | 3 months |
| After Warranty | Video technical support Online support Free Spare parts |

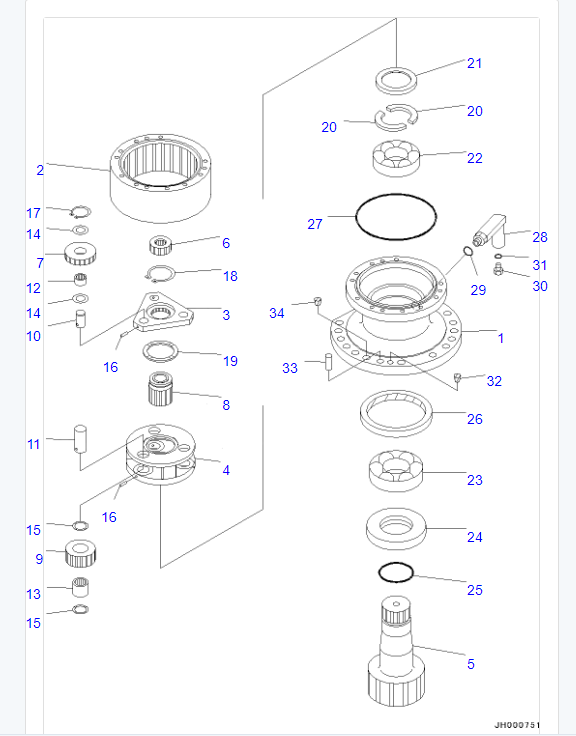

| Pos. | Part No | Qty | Parts name | Comments |
| 203-26-81000 | [1] | Swing Machinery Assembly Komatsu China | ||
| ["SN: 80001-UP"] |$0. | ||||
| 1. | 203-26-81111 | [1] | Komatsu China | |
| ["SN: 80001-UP"] | ||||
| 2. | 22B-26-21130 | [1] | Gear, Ring Komatsu China | |
| ["SN: 80001-UP"] | ||||
| 3. | 203-26-61120 | [1] | Carrier Komatsu | 1.1 kg. |
| ["SN: 80001-UP"] | ||||
| 4. | 203-26-61130 | [1] | Carrier Komatsu | 4.1 kg. |
| ["SN: 80001-UP"] | ||||
| 5. | 203-26-61220 | [1] | Shaft Komatsu | 12.81 kg. |
| ["SN: 80001-UP"] | ||||
| 6. | 203-26-61150 | [1] | Gear Komatsu | 0.2 kg. |
| ["SN: 80001-UP"] | ||||
| 7. | 203-26-61160 | [3] | Gear Komatsu | 0.4 kg. |
| ["SN: 80001-UP"] | ||||
| 8. | 203-26-61170 | [1] | Gear Komatsu | 0.9 kg. |
| ["SN: 80001-UP"] | ||||
| 9. | 203-26-61180 | [3] | Gear Komatsu | 0.6 kg. |
| ["SN: 80001-UP"] | ||||
| 10. | 201-26-62240 | [3] | Shaft Komatsu China | |
| ["SN: 80001-UP"] | ||||
| 11. | 203-26-61250 | [3] | Shaft Komatsu China | |
| ["SN: 80001-UP"] | ||||
| 12. | 201-26-62270 | [3] | Bearing Komatsu | 0.044 kg. |
| ["SN: 80001-UP"] | ||||
| 13. | 203-26-61270 | [3] | Bearing Komatsu China | |
| ["SN: 80001-UP"] | ||||
| 14. | 20S-26-71160 | [6] | Washer Komatsu | 0.01 kg. |
| ["SN: 80001-UP"] | ||||
| 15. | 09233-12920 | [6] | Washer, Thrust Komatsu China | 0.02 kg. |
| ["SN: 80001-UP"] | ||||
| 16. | 20S-26-71250 | [6] | Pin Komatsu China | |
| ["SN: 80001-UP"] analogs:["890001458"] | ||||
| 17. | 20S-26-71190 | [3] | Ring, Snap Komatsu | 0.01 kg. |
| ["SN: 80001-UP"] | ||||
| 18. | 04064-05520 | [1] | Ring, Snap, for Shaft Side Komatsu | 0.01 kg. |
| ["SN: 80001-UP"] | ||||
| 19. | 203-26-61280 | [1] | Spacer Komatsu China | |
| ["SN: 80001-UP"] | ||||
| 20. | 203-26-61391 | [2] | Spacer Komatsu China | |
| ["SN: 80001-UP"] | ||||
| 21. | 203-26-61310 | [1] | Collar Komatsu | 0.25 kg. |
| ["SN: 80001-UP"] | ||||
| 22. | 201-26-62330 | [1] | Bearing Komatsu | 1.71 kg. |
| ["SN: 80001-UP"] | ||||
| 23. | 203-26-61320 | [1] | Bearing Komatsu | 2.19 kg. |
| ["SN: 80001-UP"] | ||||
| 24. | 203-26-61340 | [1] | Collar Komatsu | 2.2 kg. |
| ["SN: 80001-UP"] | ||||
| 25. | 07000-12080 | [1] | O-ring Komatsu OEM | 0.003 kg. |
| ["SN: 80001-UP"] analogs:["0700002080"] | ||||
| 26. | 07012-00145 | [1] | Seal, Oil Komatsu China | 0.16 kg. |
| ["SN: 80001-UP"] | ||||
| 27. | 203-26-61360 | [2] | O-ring Komatsu China | |
| ["SN: 80001-UP"] | ||||
| 28. | 203-26-13111 | [1] | Elbow Komatsu China | |
| ["SN: 80001-UP"] | ||||
| 29. | 07002-12434 | [1] | O-ring Komatsu China | 0.01 kg. |
| ["SN: 80001-UP"] analogs:["0700202434", "0700213434"] | ||||
| 30. | 07040-11612 | [1] | Plug Komatsu | 0.05 kg. |
| ["SN: 80001-UP"] | ||||
| 31. | 07002-11623 | [1] | O-ring Komatsu China | 0.001 kg. |
| ["SN: 80001-UP"] analogs:["0700201623"] | ||||
| 32. | 07049-01620 | [2] | Plug, Cork Komatsu | 0.002 kg. |
| ["SN: 80001-UP"] | ||||
| 33. | 04020-01638 | [2] | Pin, Dowel Komatsu | 0.064 kg. |
| ["SN: 80001-UP"] | ||||
| 34. | 07049-02025 | [1] | Plug, Cork Komatsu | 0.002 kg. |
| ["SN: 80001-UP"] | ||||
FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.
