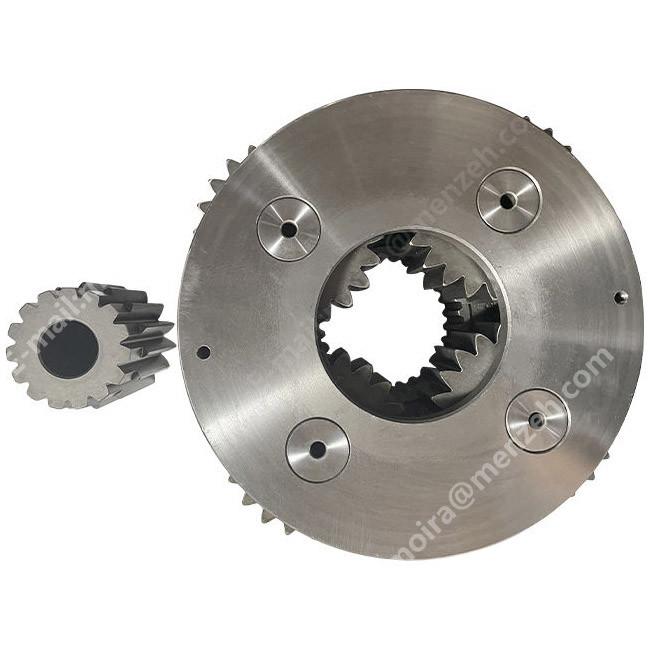

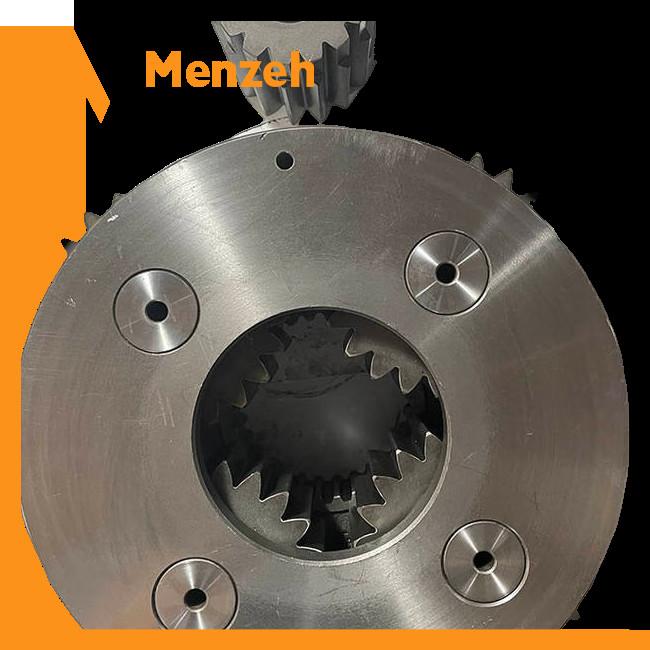

2413J376 2413T376 24100U1682S2 2413J380 Sk250-8 SK250 SK235SR-1E SK250LC SK485-8 Planetary 2nd Swing Spider Assy
Price:
Negotiated
MOQ:
1pc
Delivery Time:
1-3 working Days
Brand:
MENZEH GEARS
Product Description
2413J376 2413T376 24100U1682S2 2413J380 Sk250-8 SK250 SK235SR-1E SK250LC SK485-8 Planetary 2nd Swing Spider Assy
| Part Name | Gear |
| Part No. | 2413J376 2413T376 24100U1682S2 2413J380 |
| Used For | Sk250-8 SK250 SK235SR-1E SK250LC SK485-8 |
| Warrenty | 3 months |
| After Warranty | Video technical support Online support Free Spare parts |

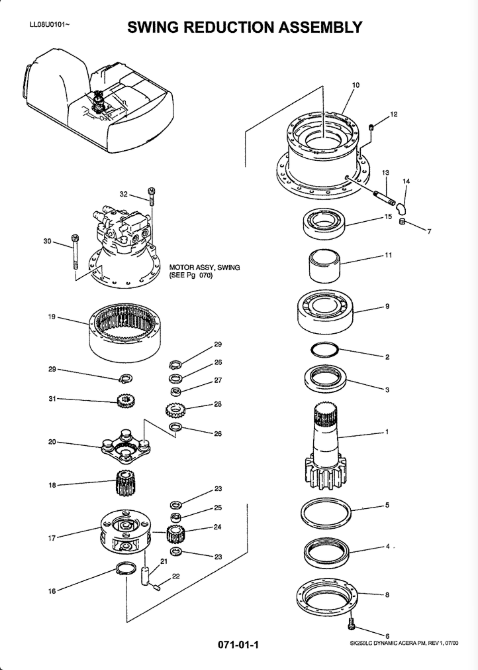

| Pos. | Part No | Qty | Parts name | Comments |
| . . | LQ32W00007F1 | [1] | HYDRAULIC MOTOR | KOB F1 ONLY, Serial Range: -5/2/00 Superseded by part number: LQ32W00007F3 |
| . . | LQ32W00007F3 | [1] | REDUCER | KOB REDUCTION ASSY, SWING (F2 ONLY), Start Serial: 5/2/00 |
| 1 | LQ32W01002P1 | [1] | DRIVEN SPROCKET | KOB SHAFT, PINION |
| 2 | ZD11G11000 | [1] | O-RING,109.40mm ID x 115.60mm OD x 3.10mm | KOB ID 109.40 ± 0.91 x OD 115mm |
| 3 | LQ32W01014P1 | [1] | BUSHING | KOB SLEEVE |
| 4 | LQ32W01021P1 | [1] | SEAL | KOB SEAL, OIL, (200.235.26) |
| 5 | 2418T17494 | [1] | SPACER | KOB |
| 6 | ZS23C10030 | [14] | SCREW,Hex Socket Head, M10 x 30mm | KOB M10x1.50x30mm Superseded by part number: ZS28C10030 |
| 7 | ZE82T12000 | [1] | PLUG | KOB 3/4" PT |
| 8 | LQ32W01003P1 | [1] | RETAINER | KOB |
| 9 | LQ32W01016P1 | [1] | SPHERICAL BEARING | KOB SPHERICAL, (110.240.80) |
| 10 | LQ32W01001P1 | [1] | HOUSING | HOUSING |
| 11 | LQ32W01012P1 | [1] | SPACER | KOB |
| 12 | ZS83C20030 | [2] | SCREW | KOB Set -- M20x2.50x30mm |
| 13 | 2420T6698D6 | [1] | PIPE | KOB |
| 14 | ZG31U12000 | [1] | ELBOW | KOB |
| 15 | LQ32W01015P1 | [1] | SPHERICAL BEARING | KOB SPHERICAL (100.180.46) |
| 16 | ZR16X10000 | [1] | RING | KOB Retaining -- ID 94.50 x OD 119 x Th 3.0mm |
| 17 | 2413J376 | [1] | DIFF. SPIDER | KOB |
| 18 | LQ32W01010P1 | [1] | GEAR | KOB SUN |
| 19 | LQ32W01005P1 | [1] | RING GEAR | KOB |
| 20 | LQ32W01007F1 | [1] | SPIDER | KOB ASSY |
| 21 | 2410T352 | [4] | ROLLER SHAFT | KOB |
| 22 | ZP26D08032 | [4] | PIN | KOB Roll -- OD 08 x 32mm Long |
| 23 | LQ32W01018P1 | [8] | WASHER | KOB THRUST |
| 24 | LQ32W01009P1 | [4] | DRIVEN SPROCKET | KOB PINION |
| 25 | 2425Z541 | [4] | NEEDLE BEARING,40mm ID x 54mm OD x 50mm W | KOB NEEDLE (40.54.50) |
| 26 | LQ32W01013P1 | [8] | WASHER | KOB THRUST |
| 27 | 2425Z540 | [4] | NEEDLE BEARING,40mm ID x 48mm OD x 25mm W | KOB NEEDLE (40.48.25) |
| 28 | LQ32W01011P1 | [4] | DRIVEN SPROCKET | KOB PINION |
| 29 | ZR16X04000 | [5] | RING | KOB Retaining -- ID 37 x OD 40 x Th 1.8mm |
| 30 | ZS23C14150 | [14] | SCREW,Hex Socket Head, M14 x 150mm | KOB M14x2.0x150mm, (F1 Only) |
| 31 | LQ32W01020P1 | [1] | SUN GEAR | KOB |
| 32 | 2420T4530 | [2] | SCREW,M14 x 2 x 185mm | KOB M14x2.0x185mm, (F1 ONLY) |
FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.
