132973 4230-7016 4230-7022 3232493 DH370 SOLAR290LC-V No.1 Travel Carrier Assembly Reducer Gearbox Part Carrier
Price:
Negotiated
MOQ:
1pc
Delivery Time:
1-3 working Days
Brand:
MENZEH GEARS
Product Description
132973 4230-7016 4230-7022 3232493 DH370 SOLAR290LC-V Long Life No.1 Travel Carrier Assembly Reducer Gearbox Part Carrier
| Part Name | Carrier |
| Part No. | 132973 4230-7016 4230-7022 3232493 |
| Used For | DH370 SOLAR290LC-V |
| Warrenty | 3 months |
| After Warranty | Video technical support Online support Free Spare parts |

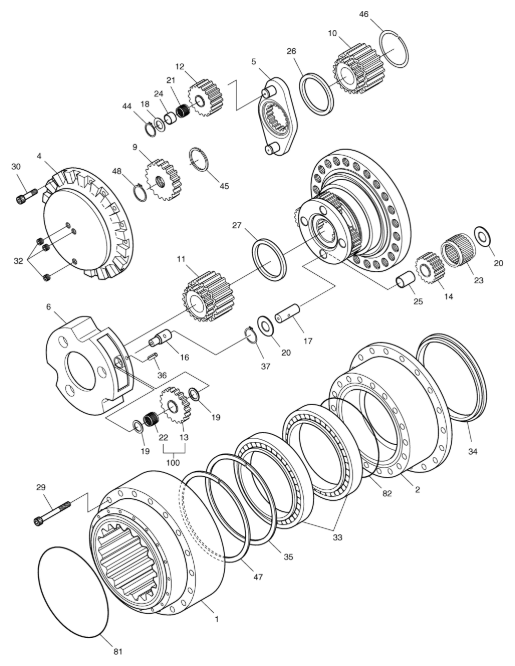

| Pos. | Part No | Qty | Parts name | Comments |
| -. | 2401-9269 | [2] | TRAVEL DEVICE | |
| 1 | 132970 | [1] | GEAR;RING | |
| 10 | 132984 | [1] | GEAR;SUN NO.2 | |
| 100 | 135392-K | [3] | PLANETARY GEAR 2 | |
| 11 | 132985 | [1] | GEAR;SUN NO.3 | |
| 12 | 132974 | [2] | GEAR;PLANETARY NO.1 | |
| 13 | 132977 | [3] | PLANETARY GEAR NO.2 | 135392-K |
| 13 | 135392 | [3] | GEAR;PLANETARY NO.2 | |
| 14 | 132980 | [4] | GEAR;PLANETARY NO.3 | |
| 16 | 132979 | [3] | PIN NO.2 | |
| 17 | 132981 | [4] | PIN NO.3 | |
| 18 | 132975 | [2] | SIDE PLATE E | |
| 19 | 132978 | [6] | PLATE;SIDE A | |
| 2 | 132971 | [1] | HOUSING(LH) | |
| 20 | 132960 | [8] | SIDE PLATE F | |
| 21 | 230581 | [2] | NEEDLE CAGE | |
| 22 | 230584 | [3] | NEEDLE CAGE | 135392-K |
| 22 | 234353 | [3] | CAGE;NEEDLE | |
| 23 | 230585 | [4] | NEEDLE CAGE | |
| 24 | 230582 | [2] | INNER RING | |
| 25 | 132982 | [4] | BUSH;FLOATING | |
| 26 | 132986 | [1] | RING;THRUST 60 | |
| 27 | 132987 | [1] | RING;THRUST 90 | |
| 29 | 230587 | [28] | BOLT;SOCKET M16X100 | |
| 30 | 230588 | [12] | BOLT;SOCKET M8X20 | |
| 32 | 230589 | [3] | PLUG | |
| 33 | 230590 | [2] | ANGULAR BEARING | |
| 34 | 132988 | [1] | SEAL;FLOATING | |
| 35 | 132989 | [1] | SHIM | |
| 36 | 101226 | [3] | SPRING PIN | |
| 37 | 230586 | [4] | RING;SNAP | |
| 4 | 132972 | [1] | SIDE COVER | |
| 44 | 230583 | [2] | RING;SNAP | |
| 45 | 230591 | [1] | CLIP | |
| 46 | 230592 | [1] | CLIP | |
| 47 | 230596 | [1] | RING;SNAP | |
| 48 | 230593 | [1] | RING;SNAP | |
| 5 | 132973 | [1] | CARRIER NO.1 | |
| 6 | 132976 | [1] | CARRIER NO.2 | |
| 81 | 230594-CPP323 | [1] | O-RING | |
| 82 | 230595 | [1] | O-RING | |
| 9 | 132983 | [1] | GEAR;SUN NO.1 |



FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.
