2047920 3094513 2047928 1032487 ZX160LC-3 ZX180LC ZX200 ZX160 Travel Drive Part Ear Sun Shaft First Carrier Assy

Price Negotiable
Price: Negotiated
MOQ: 1pc
Delivery Time: 1-3 working Days
Brand: MENZEH GEARS
Product Description

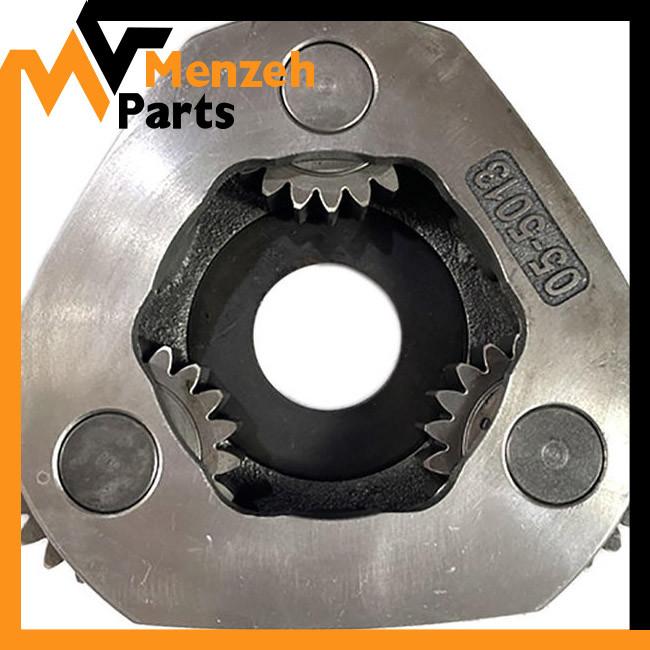

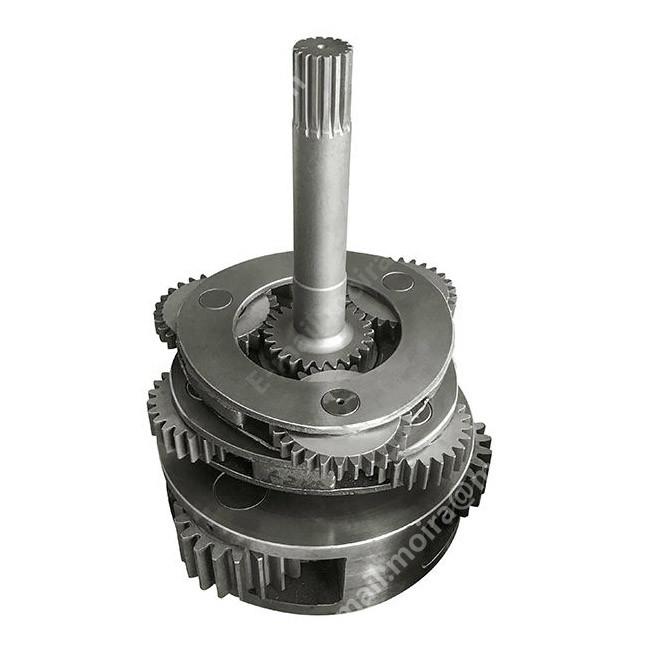

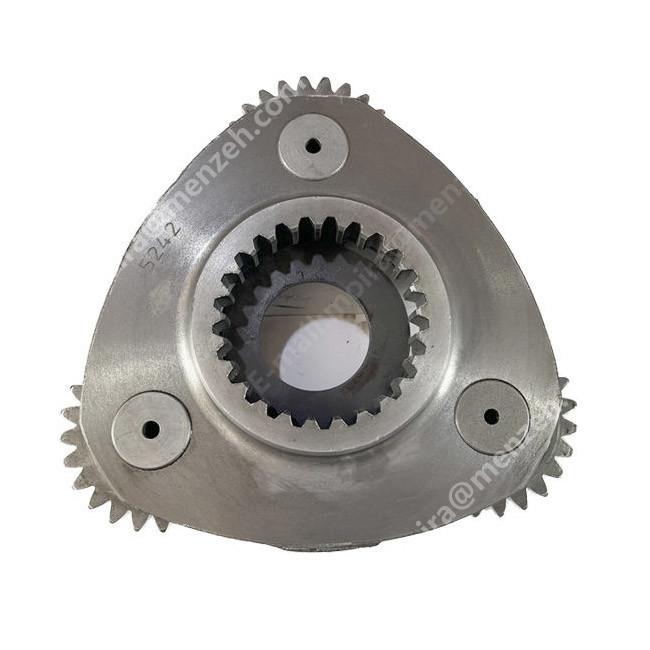

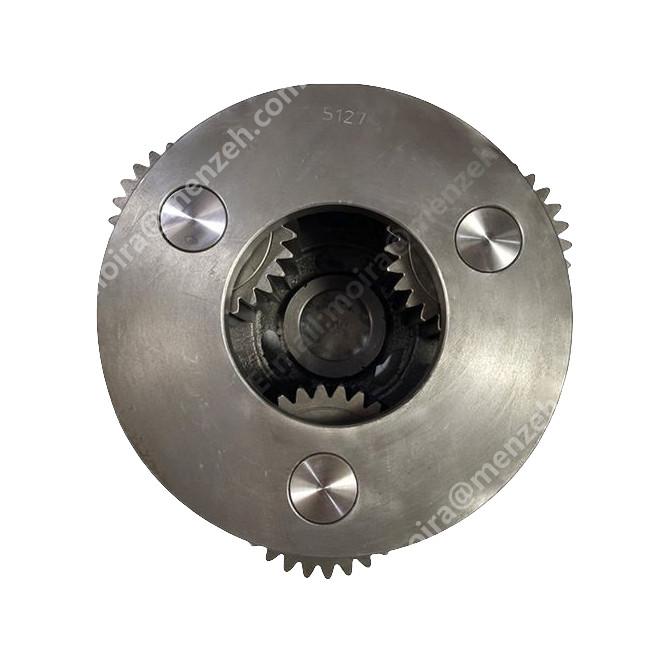

2047920 3094513 2047928 1032487 ZX160LC-3 ZX180LC ZX200 ZX160 Travel Drive Part EAR SUN SHAFT First Carrier Assy



Part Name Carrier
Part No. 2047920 3094513 2047928 1032487
Used For ZX160LC-3 ZX180LC ZX200 ZX160
Warrenty 3 months
After Warranty Video technical support Online support Free Spare parts

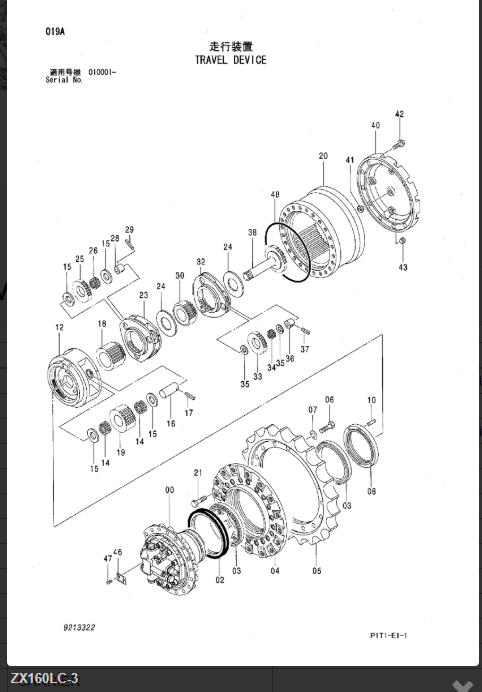

Pos. Part No Qty Parts name Comments
  9213322 [1] TRAVEL DEVICE I 9213445 (for assembly of machine)
  -9213445 [1] TRAVEL DEVICE (for transportation)
0 9213425 [1] MOTOR;OIL I 9213473 (for assembly of machine)
0 -9213473 [1] MOTOR;OIL (for transportation)
2 4634693 [1] SEAL;GROUP
3 4246793 [2] BRG.;ROL.
4 1030236 [1] DRUM
5 1018740 [1] SPROCKET
6 J932055 [16] BOLT
7 A590920 [16] WASHER;SPRING
8 3086531 [1] NUT
10 4436242 [1] PIN;KNOCK
12 1030221 [1] CARRIER
14 4445529 [6] BRG.;NEEDLE
15 4269295 [12] PLATE;THRUST
16 4246790 [3] PIN
17 4116309 [3] PIN;SPRING
18 3094515 [1] GEAR;SUN
19 3094536 [3] GEAR;PLANETARY
20 1030343 [1] GEAR;RING
21 J931660 [20] BOLT
23 1030230 [1] CARRIER
24 4246785 [2] SPACER
25 3094496 [3] GEAR;PLANETARY
26 4452480 [3] BRG.;NEEDLE
28 4246789 [3] PIN
29 4246358 [3] PIN;SPRING
30 3094513 [1] GEAR;SUN
32 2047920 [1] CARRIER
33 3094506 [3] GEAR;PLANETARY
34 4387383 [3] BRG.;NEEDLE
35 4192910 [6] PLATE;THRUST
36 4469309 [3] PIN
37 4173093 [3] PIN;SPRING
38 2047928 [1] SHAFT;PROP.
40 2028212 [1] COVER
41 4478346 [1] PIN;STOPPER
42 4609016 [16] BOLT;SEMS
43 4245797 [3] PLUG
46 +++++++ [1] NAME-PLATE
47 M492564 [2] SCREW;DRIVE
48 4246792 [1] O-RING












FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.
