Lq32W01031F1 Lq32W01008P1 LQ32W01007F1 LS53D00003S002 LC32W01019P1 Sk250-8 SK235SR-2 SK485-8 1St Swing Spider Assy
Price:
Negotiated
MOQ:
1pc
Delivery Time:
1-3 working Days
Brand:
MENZEH GEARS
Product Description

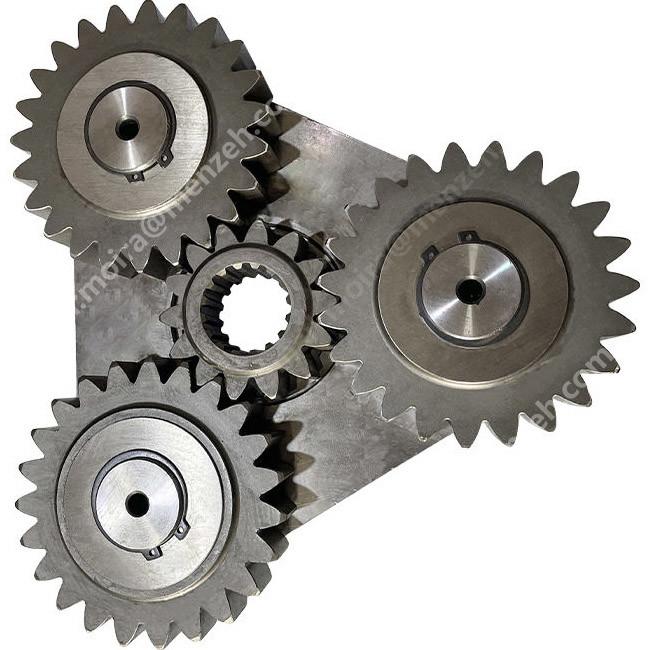

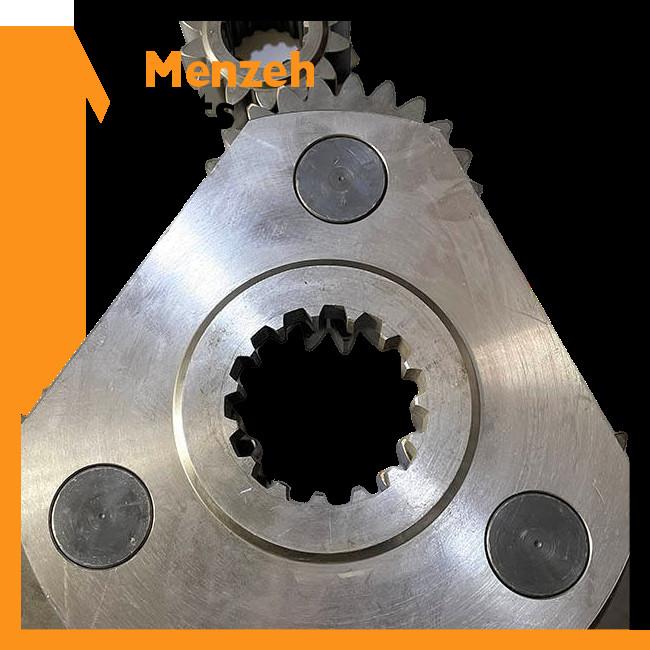

Lq32W01031F1 Lq32W01008P1 LQ32W01007F1 LS53D00003S002 LC32W01019P1 Sk250-8 SK235SR-2 SK485-8 Planetary Gear 1St Swing Spider Assy Carrier Ass'Y
| Part Name | Carrier Assy |
| Part No. | Lq32W01031F1 Lq32W01008P1 LQ32W01007F1 LS53D00003S002 LC32W01019P1 |
| Used For | Sk250-8 SK235SR-2 SK485-8 |
| Warrenty | 3 months |
| After Warranty | Video technical support Online support Free Spare parts |

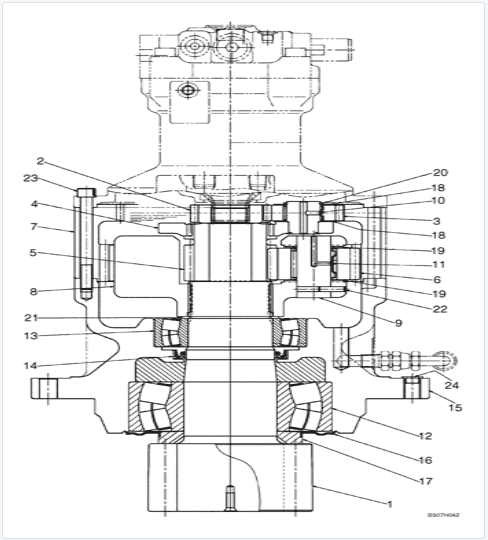

| Pos. | Part No | Qty | Parts name | Comments |
| . . | LS32W00012F1 | [1] | HYDRAULIC EQUIPMENT | KOB Swing Reduction Assembly |
| 1 | LQ32W01038P1 | [1] | FINGER ASSY. | KOB |
| 2 | LQ32W01027P1 | [1] | SHAFT, PLANETARY CAR | KOB |
| 3 | LQ32W01011P1 | [4] | DRIVEN SPROCKET | KOB |
| 4 | LQ32W01031F1 | [1] | SPIDER | KOB |
| 5 | LQ32W01010P1 | [1] | GEAR | KOB |
| 6 | LQ32W01009P1 | [4] | DRIVEN SPROCKET | KOB |
| 7 | LQ32W01005P1 | [1] | RING GEAR | KOB |
| 8 | 2413J376 | [1] | DIFF. SPIDER | KOB |
| 9 | 2410T352 | [4] | ROLLER SHAFT | KOB |
| 10 | 2425Z540 | [4] | NEEDLE BEARING,40mm ID x 48mm OD x 25mm W | KOB |
| 11 | 2425Z541 | [4] | NEEDLE BEARING,40mm ID x 54mm OD x 50mm W | KOB |
| 12 | LQ32W01016P1 | [1] | SPHERICAL BEARING | KOB |
| 13 | LQ32W01015P1 | [1] | SPHERICAL BEARING | KOB |
| 14 | LQ32W01035P1 | [1] | OIL SEAL | KOB |
| 15 | NA | [1] | NOT SERVICED | FOR Housing |
| 16 | LC32W01033P1 | [1] | OIL SEAL | KOB |
| 17 | LQ32W01036P1 | [1] | SLEEVE | KOB |
| 18 | LQ32W01037P1 | [8] | WASHER | KOB |
| 19 | LQ32W01018P1 | [8] | WASHER | KOB Thrust |
| 20 | ZR16X04000 | [4] | RING | KOB Retaining -- ID 37 x OD 40 x Th 1.8mm |
| 21 | ZR16X10000 | [1] | RING | KOB Retaining -- ID 94.50 x OD 119 x Th 3.0mm |
| 22 | ZP26D08032 | [4] | PIN | KOB Roll -- OD 08 x 32mm Long |
| 23 | ZS23C14150 | [16] | SCREW,Hex Socket Head, M14 x 150mm | KOB M14x2.0x150mm |
| 24 | PV02B01073DB | [2] | CAP | KOB 18.4mm Plastic |
FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.
