Lq15V00020S071 Lq15V00020S080 YT02C01115D3 YN50C01171P1 YN62H01015P1 Sk250-8 SK260-9 2Nd Travel Carrier Assy Gear

Price Negotiable
Price: Negotiated
MOQ: 1pc
Delivery Time: 1-3 working Days
Brand: MENZEH GEARS
Product Description

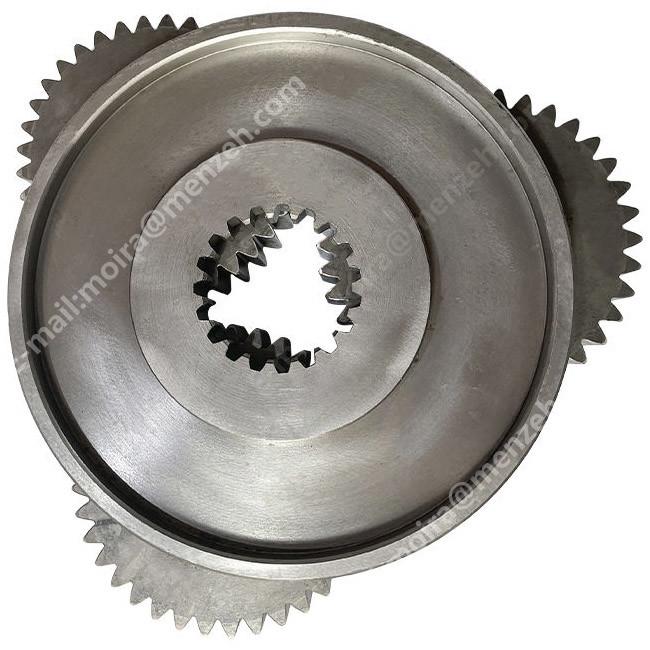

Lq15V00020S071 Lq15V00020S080 YT02C01115D3 YN50C01171P1 YN62H01015P1 Sk250-8 SK260-9 2Nd Travel Carrier Assy Gear Sun

Part Name Carrier Assy
Part No. Lq15V00020S071 Lq15V00020S080 YT02C01115D3 YN50C01171P1 YN62H01015P1
Used For Sk250-8 SK260-9
Warrenty 3 months
After Warranty Video technical support Online support Free Spare parts

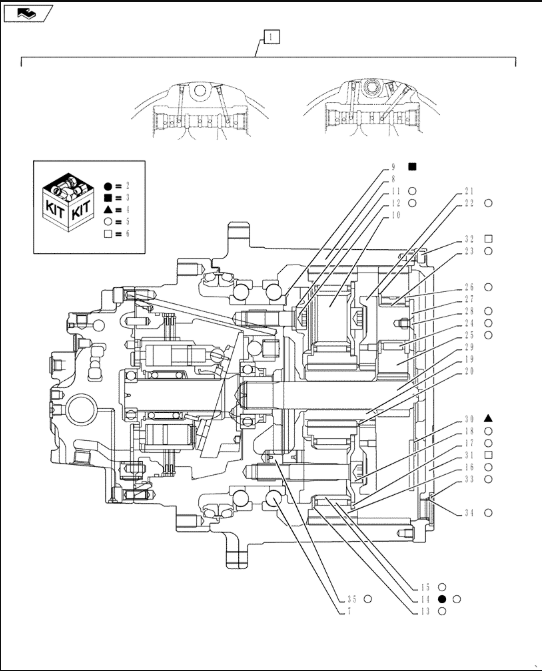

Pos. Part No Qty Parts name Comments
1 LQ15V00031F1 [2] HYDRAULIC MOTOR KOB Propel, Incl 2 - 35 Superseded by part number: LQ15V00031F3
2 LQ15V00031R200 [1] REPAIR KIT KOB Incl 14 (3)
3 72962412 [1] REPAIR KIT KOB Incl 9 Superseded by part number: LQ15V00007R700
4 72962413 [1] REPAIR KIT KOB Incl 30 Superseded by part number: LQ15V00007R800
5 LQ15V00020R910 [1] KIT SM Incl 11, 12, 13, 14, 15, 16, 17, 18, 22, 23, 24, 25, 26, 28, 33, 34, 35
6 LQ15V00020R920 [1] KIT SM Incl 31 (16), 32
7 LQ15V00007S077 [2] BEARING KOB Bearing
8 NSS [1] NOT SOLD SEPARAT CON Housing, Incl in 1
9 NSS [1] NOT SOLD SEPARAT CON Shim, Incl in 3
10 LQ15V00020S071 [1] RUBBER RING SM Holder
11 LQ15V00007S081 [8] FRICTION WASHER KOB
12 LQ15V00007S082 [8] SCREW KOB Cap
13 72962432 [4] THRUST PLATE KOB Superseded by part number: LQ15V00007S083
14 LQ15V00007S084 [4] RACE KOB Inner
15 LQ15V00020S076 [4] NEEDLE BEARING SM Needle
16 LQ15V00007S086 [4] DRIVEN GEAR KOB
17 LQ15V00020S078 [4] PLATE SM
18 LQ15V00007S088 [4] SCREW KOB Cap
19 LQ15V00020S080 [1] GEAR SM Sun
20 LQ15V00007S090 [1] RING KOB
21 LQ15V00020S082 [1] CARRIER SM Holder
22 LQ15V00007S092 [3] PLATE KOB
23 LQ15V00020S084 [3] RACE SM Inner
24 LQ15V00020S085 [3] NEEDLE BEARING SM Needle
25 LQ15V00020S086 [3] GEAR SM
26 LQ15V00007S096 [3] PLATE KOB
27 LQ15V00020S088 [1] PLATE SM
28 LQ15V00007S098 [3] SCREW KOB Cap
29 LQ15V00020S090 [1] GEAR SM
30 NSS [1] NOT SOLD SEPARAT CON Plate, Incl in 4
31 NSS [1] NOT SOLD SEPARAT CON Cover, Incl in 6
32 NSS [16] NOT SOLD SEPARAT CON Capscrew, Incl in 6
33 LQ15V00007S103 [3] PLUG KOB
34 ZD12P02400 [3] O-RING KOB
35 LQ15V00007S105 [4] PIN KOB













FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.
