2022683 3033593 9153390510 0360903 3035623 3035624 EX120-1 EX200 Excavator Final Drive Cover

Price Negotiable
Price: Negotiated
MOQ: 1pc
Delivery Time: 1-3 working Days
Brand: MENZEH GEARS
Product Description

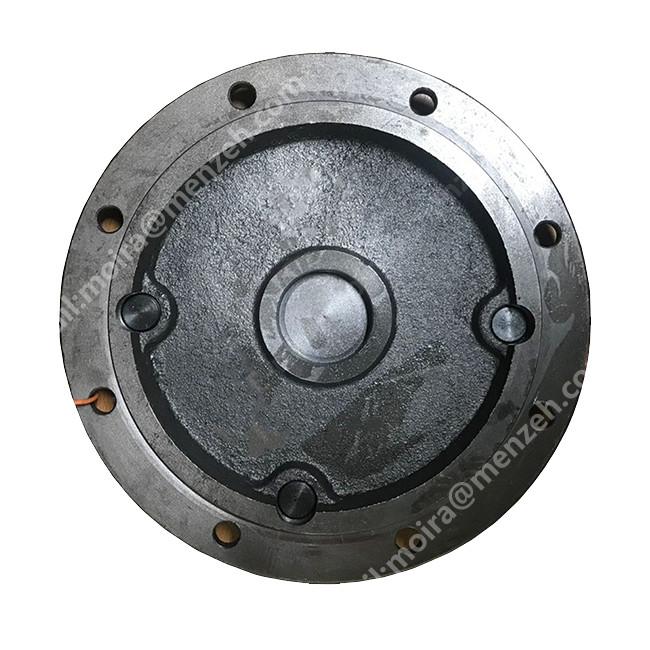

2022683 3033593 9153390510 0360903 3035623 3035624 EX120-1 EX200 Excavator Final drive cover

Part Name Cover
Part No. 2022683 3033593 9153390510 0360903 3035623 3035624
Used For EX120-1 EX200
Warrenty 3 months
After Warranty Video technical support Online support Free Spare parts

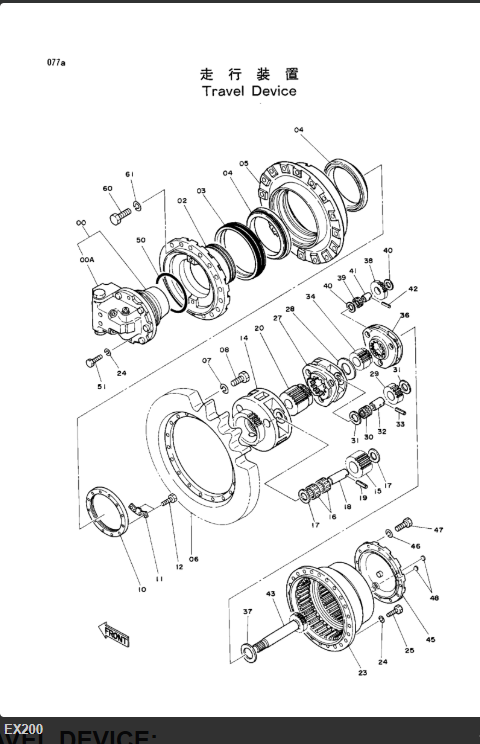

Pos. Part No Qty Parts name Comments
0 9065944 [1] MOTOR;OIL
00-51. 9066008 [2] TRAVEL DEVICE ASS'Y
00A. 9065943 [1] VALVE;BRAKE
2 1009855 [1] HOUSING
3 4514259 [1] SEAL;GROUP
4 4115169 [2] BRG.;ROL
5 1010010 [1] DRUM
6 1010204 [1] SPROCKET
7 A590920 [16] WASHER;SPRING
8 J932055 [16] BOLT
10 3032083 [1] NUT
11 4178862 [1] PLATE;LOCK
12 J901020 [2] BOLT
14 1009857 [1] CARRIER
15 3034323 [3] GEAR;PLANETARY
16 4183818 [6] BRG.;NEEDLE
17 4135227 [6] PLATE;THRUST
18 4139975 [3] PIN
19 4139998 [3] PIN;SPRING
20 3034324 [1] GEAR;SUN
23 1010509 [1] GEAR;RING
24 A590916 [26] WASHER;SPRING
25 J931645 [24] BOLT
27 2022210 [1] CARRIER
28 4183819 [1] SPACER
29 3034325 [3] GEAR;PLANETARY
30 4126657 [3] BRG.;NEEDLE
31 4192982 [6] PLATE;THRUST
32 4144558 [3] PIN
33 4169567 [3] PIN;SPRING
34 3034326 [1] GEAR;SUN
36 2020865 [1] CARRIER
37 4172391 [1] SPACER
38 3031946 [3] GEAR;PLANETARY
39 4172392 [3] BRG.;NEEDLE
40 4196488 [6] PLATE;THRUST
41 4172398 [3] PIN
42 4169566 [3] PIN;SPRING
43 2020862 [1] SHAFT;PROP.
45 2022683 [1] COVER
46 A590912 [12] WASHER;SPRING
47 M221228 [12] BOLT
48 94-2013 [2] PLUG
50 4174183 [1] O-RING
51 J931685 [2] BOLT
60 J932080 [28] BOLT
61 A590920 [28] WASHER;SPRING















FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.
