ZX670-3 Final Drive Housing Excavator Spare Part Rotary Shaft Housing

Price Negotiable
Price: Negotiated
MOQ: 1pc
Delivery Time: 1-3 working Days
Brand: MENZEH GEARS
Product Description

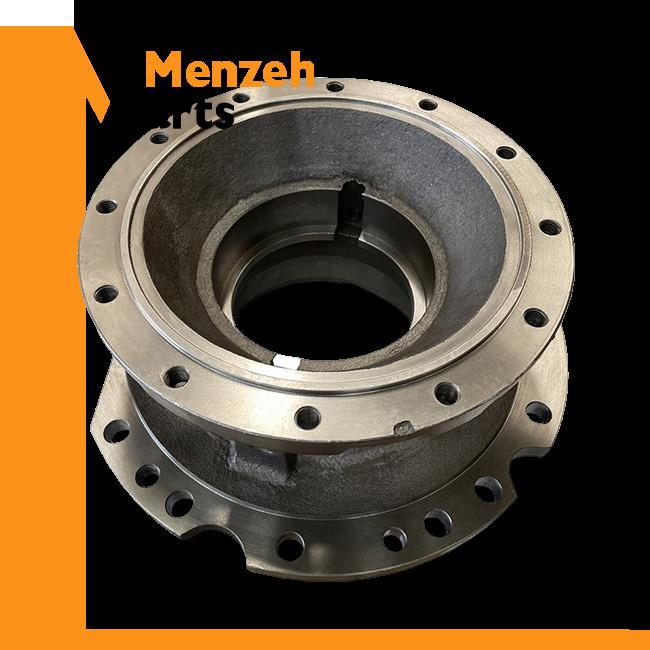

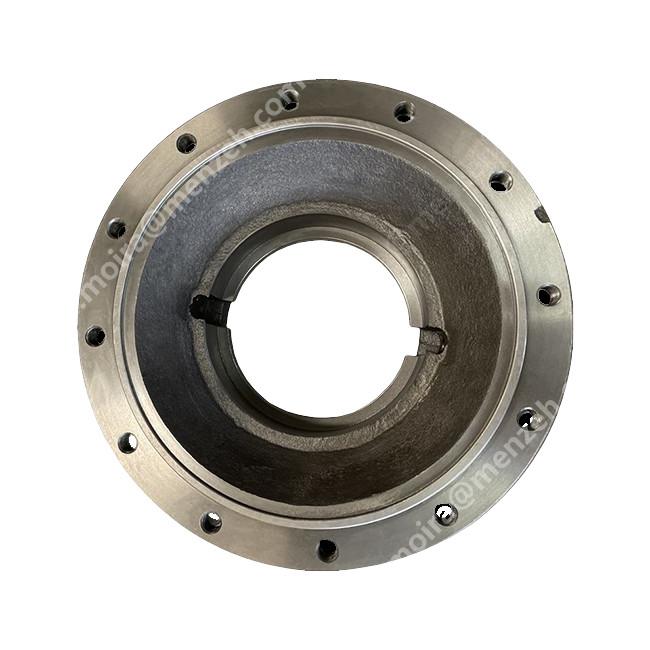

ZX670-3 Final Drive Housing Excavator Spare Part Rotary Shaft Housing



Part Name Housing
Part No. ZX670-3
Used For ZX670-3
Warrenty 3 months
After Warranty Video technical support Online support Free Spare parts

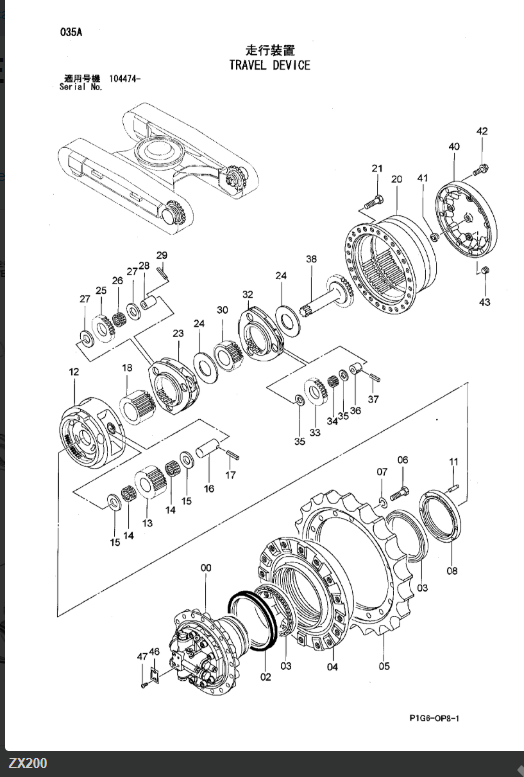

Pos. Part No Qty Parts name Comments
  9181678 [2] TRAVEL DEVICE I 9233689 (for assembly of machine)
  9195448 [2] TRAVEL DEVICE (for transportation)
  9233689 [2] TRAVEL DEVICE I 9233690 (for assembly of machine)
  9233690 [2] TRAVEL DEVICE (for transportation)
0 9190294 [1] MOTOR;OIL I 9196318 (for assembly of machine)
0 9196318 [1] MOTOR;OIL (for transportation)
0 9234159 [1] MOTOR;OIL I 9237803 (for assembly of machine)
0 9237803 [1] MOTOR;OIL (for transportation)
2 4114753 [1] SEAL;GROUP
3 4246793 [2] BRG.;ROL.
4 1027152 [1] DRUM
5 1010203 [1] SPROCKET
6 J932055 [16] BOLT
7 A590920 [16] WASHER;SPRING
8 3086531 [1] NUT
11 4436242 [1] PIN;KNOCK
12 1026779 [1] CARRIER
13 3085966 [3] GEAR;PLANETARY
14 4445531 [6] BRG.;NEEDLE
15 4284521 [6] PLATE;THRUST
16 4139975 [3] PIN
17 4116309 [3] PIN;SPRING
18 3085927 [1] GEAR;SUN
20 1027158 [1] GEAR;RING
21 J931640 [28] BOLT
23 1027161 [1] CARRIER
24 4401293 [2] SPACER
25 3085985 [3] GEAR;PLANETARY
26 4445529 [3] BRG.;NEEDLE
27 4210851 [6] PLATE;THRUST
28 4309995 [3] PIN
29 4246358 [3] PIN;SPRING
30 3085941 [1] GEAR;SUN
32 1027160 [1] CARRIER
33 3086006 [3] GEAR;PLANETARY
34 4406589 [3] BRG.;NEEDLE
35 4192910 [6] PLATE;THRUST
36 4210853 [3] PIN
37 4173093 [3] PIN;SPRING
38 2043851 [1] SHAFT;PROP.
40 2043868 [1] COVER
41 4285323 [1] PIN;STOPPER
42 J011230 [12] BOLT;SEMS
42 J271230 [12] BOLT;SEMS T J901230
        J222012
43 4245797 [3] PLUG
46 +++++++ [1] NAME-PLATE
47 M492564 [2] SCREW;DRIVE















FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.
