PCR-3B-12A-FP-8955A PC56 Rotary Shaft Housing Excavator Part Final Drive Housing
Price:
Negotiated
MOQ:
1pc
Delivery Time:
1-3 working Days
Brand:
MENZEH GEARS
Product Description

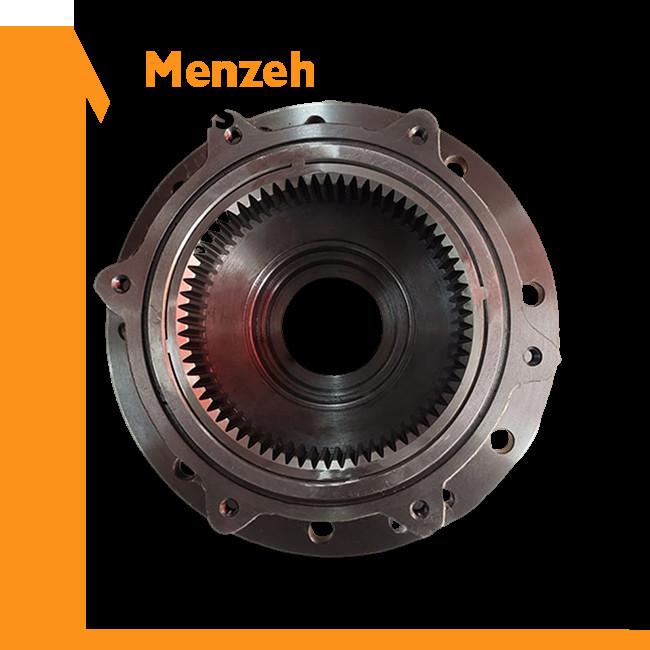

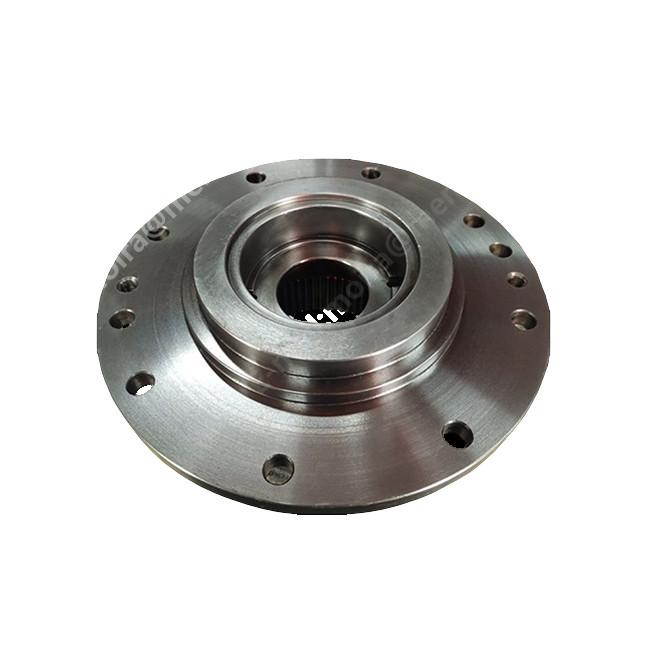

PCR-3B-12A-FP-8955A PC56 Rotary Shaft Housing Excavator Part Final Drive Housing
| Part Name | Swing Gearbox |
| Part No. | PCR-3B-12A-FP-8955A PC56 |
| Used For | PC56 |
| Warrenty | 3 months |
| After Warranty | Video technical support Online support Free Spare parts |

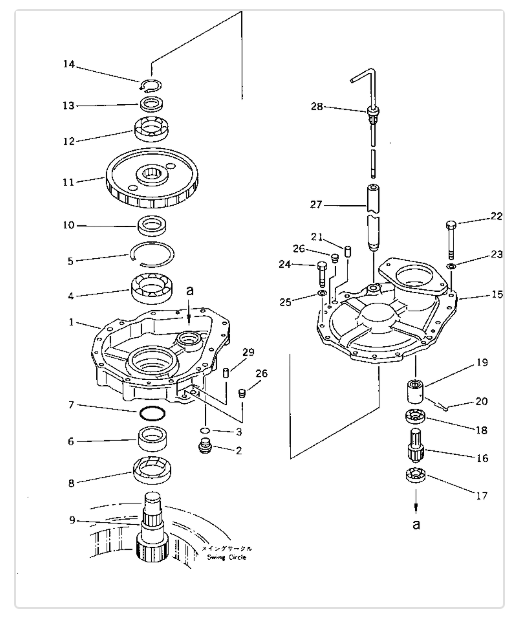

| Pos. | Part No | Qty | Parts name | Comments |
| 20T-26-00100 | [1] | SWING MACHINERY A. Komatsu | 50.2 kg. | |
| ["SN: 3401-UP"] analogs:["890000054", "PZF890000054"] |1. | ||||
| 20U-26-00010 | [1] | SWING MACHINERY A. Komatsu | 50.2 kg. | |
| ["SN: 1879-3400"] analogs:["890000054", "PZF890000054", "20T2600100"] |1. | ||||
| 20T-26-00080 | [1] | SWING MACHINERY A. Komatsu China | ||
| ["SN: 1001-1878"] |1. | ||||
| 1. | 20T-26-31220 | [1] | ,LOWER Komatsu | 16.81 kg. |
| ["SN: 1001-UP"] | ||||
| 2. | 07044-12412 | [1] | PLUG Komatsu | 0.09 kg. |
| ["SN: 1001-UP"] analogs:["0704402412", "R0704412412"] | ||||
| 3. | 07002-02434 | [1] | O-RING Komatsu China | 0.01 kg. |
| ["SN: 1001-UP"] analogs:["0700212434", "0700213434"] | ||||
| 4. | 06030-22212 | [1] | BEARING,ROLLER Komatsu | 1.143 kg. |
| ["SN: 1001-UP"] | ||||
| 5. | 04071-00110 | [1] | RING,SNAP Komatsu | 0.084 kg. |
| ["SN: 1001-UP"] | ||||
| 6. | 20T-26-31250 | [1] | COLLAR Komatsu | 0.3 kg. |
| ["SN: 1001-UP"] | ||||
| 7. | 07000-02060 | [1] | O-RING Komatsu China | 0.002 kg. |
| ["SN: 1001-UP"] analogs:["0700012060", "R0700002060"] | ||||
| 8. | 07012-00075 | [1] | SEAL,OIL Komatsu | 0.073 kg. |
| ["SN: 1001-UP"] | ||||
| 9. | 20T-26-41230 | [1] | SHAFT Komatsu | 3.69 kg. |
| ["SN: 1879-UP"] | ||||
| 20T-26-31230 | [1] | SHAFT Komatsu | 3.69 kg. | |
| ["SN: 1001-1878"] analogs:["20T2641230"] |9. | ||||
| 10. | 20T-26-41250 | [1] | COLLAR Komatsu | 0.272 kg. |
| ["SN: 1879-UP"] | ||||
| 20T-26-31240 | [1] | COLLAR Komatsu China | ||
| ["SN: 1001-1878"] |10. | ||||
| 11. | 20T-26-41260 | [1] | GEAR Komatsu China | |
| ["SN: 1879-UP"] analogs:["3K4024605", "PZF3K4024605"] | ||||
| 20T-26-31260 | [1] | GEAR Komatsu China | ||
| ["SN: 1001-1878"] |11. | ||||
| 12. | 06044-00308 | [1] | BEARING,ROLLER Komatsu | 0.69 kg. |
| ["SN: 1001-UP"] | ||||
| 13. | 20R-26-11360 | [1] | COLLAR Komatsu China | |
| ["SN: 1001-UP"] analogs:["20T2611360", "3K4024608", "PZF3K4024608"] | ||||
| 14. | 04064-04018 | [1] | RING,SNAP Komatsu | 0.001 kg. |
| ["SN: 1001-UP"] analogs:["802250040"] | ||||
| 15. | 20T-26-41110 | [1] | ,UPPER Komatsu China | |
| ["SN: 3401-UP"] | ||||
| 20T-26-31210 | [1] | ,UPPER Komatsu China | ||
| ["SN: 1001-3400"] |15. | ||||
| 16. | 20T-26-41220 | [1] | SHAFT Komatsu | 0.35 kg. |
| ["SN: 3401-UP"] | ||||
| 20S-26-11130 | [1] | SHAFT Komatsu China | ||
| ["SN: 1001-3400"] |16. | ||||
| 17. | 06040-06304 | [1] | BEARING,BALL Komatsu | 0.157 kg. |
| ["SN: 1001-UP"] | ||||
| 18. | 06044-00205 | [1] | BEARING,ROLLER Komatsu | 0.152 kg. |
| ["SN: 1001-UP"] | ||||
| 19. | 20T-26-41210 | [1] | COUPLING Komatsu China | |
| ["SN: 3401-UP"] analogs:["3K4024602", "PZF3K4024602"] | ||||
| 21E-26-11210 | [1] | COUPLING Komatsu China | ||
| ["SN: 1001-3400"] |19. | ||||
| 20. | 04050-15050 | [1] | PIN,COTTER Komatsu China | |
| ["SN: 1001-UP"] analogs:["802610089", "M012200505006", "PZF802610089", "0405005050"] | ||||
| 21. | 04020-01434 | [2] | PIN,DOWEL Komatsu | 0.044 kg. |
| ["SN: 1001-UP"] | ||||
| 22. | 01011-51200 | [10] | BOLT Komatsu | 0.104 kg. |
| ["SN: 1001-UP"] analogs:["0101181200", "801015583"] | ||||
| 23. | 01643-31232 | [10] | WASHER Komatsu | 0.027 kg. |
| ["SN: 1001-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"] | ||||
| 24. | 01010-51035 | [4] | BOLT Komatsu | 0.033 kg. |
| ["SN: 1001-UP"] analogs:["801015556", "0101081035", "01010D1035"] | ||||
| 25. | 01643-31032 | [4] | WASHER Komatsu | 0.054 kg. |
| ["SN: 1001-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"] | ||||
| 26. | 07049-01215 | [4] | PLUG Komatsu | 0.001 kg. |
| ["SN: 1001-UP"] | ||||
| 27 | 20T-26-31110 | [1] | FILLER Komatsu China | |
| ["SN: 1001-UP"] analogs:["500044482", "PZF500044482", "20T26R1101"] | ||||
| 28 | 20T-26-31120 | [1] | GAUGE,OIL Komatsu China | |
| ["SN: 1001-UP"] | ||||
FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.
