39Q6-42180 39Q8-4226 XKAQ-00965 39Q7-12180 R210LC9 R215LC R220LC R235LC R250 HCE CARRIER ASSY KIT 2

Price Negotiable
Price: Negotiated
MOQ: 1pc
Delivery Time: 1-3 working Days
Brand: MENZEH GEARS
Product Description

39Q6-42180 39Q8-4226 XKAQ-00965 39Q7-12180 R210LC9 R215LC R220LC R235LC R250 HCE CARRIER ASSY KIT 2



Part Name HCE CARRIER ASSY KIT 2
Part Number 39Q6-42180 39Q8-4226 XKAQ-00965 39Q7-12180
Used For R210LC9 R215LC R220LC R235LC R250
Warrenty 3 Months
After Warranty Video technical support Online support Free Spare parts

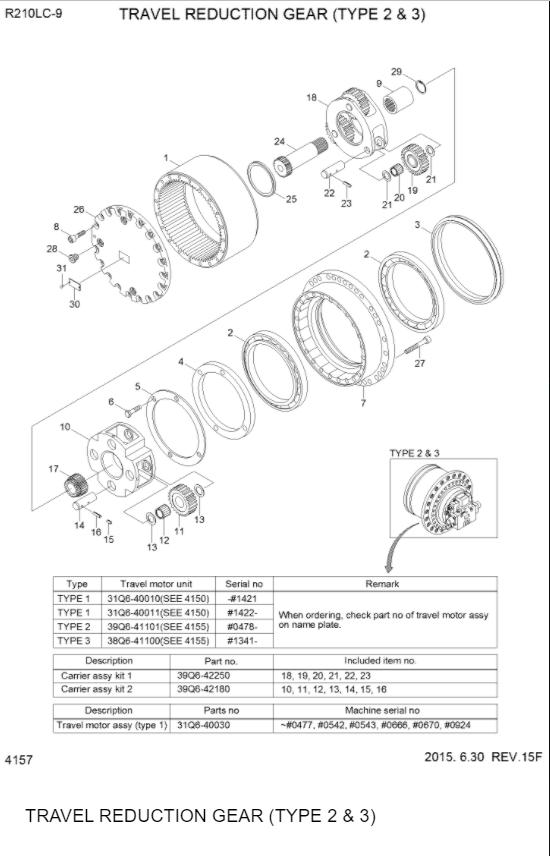

Pos. Part No Qty Parts name Comments
*. @ [1] TRAVEL MOTOR ASSY SEE 4155
*-2. 39Q6-42100 [1] TRAVEL REDUCTION GEAR
*-2. 39Q6-42101 [1] TRAVEL REDUCTION GEAR
1 39Q6-42110 [1] GEAR-RING
2 39Q6-42120 [2] BEARING-ANG.BALL
3 39Q6-42130 [2] SEAL ASSY-FLOATING
4 39Q6-42140 [1] RING-NUT
5 39Q6-42150 [1] PLATE-LOCK
6 S017-120166 [4] BOLT-HEX
7 39Q6-42160 [1] HOUSING
8 S129-070206 [20] BOLT-SOCKET,UNIFIED
9 39Q6-42170 [1] COUPLING
k10. 39Q6-42190 [1] CARRIER 2
k11. 39Q6-42200 [4] GEAR-PLANATARY 2
k12. 39Q6-42210 [4] BEARING-NEEDLE 2
k13. 39Q6-42220 [8] WASHER-THRUST 2
K14. 39Q6-42230 [4] PIN-CARRIER 2
K15. S472-800164 [4] PIN-SPRING
K16. 39Q6-42350 [4] PIN-SOLID 2
17 39Q6-42240 [1] GEAR-SUN 2
K18. 39Q6-42260 [1] CARRIER 1
K19. 39Q6-42270 [3] GEAR-PLANETARY 1
K20. 39Q6-42280 [3] BEARING-NEEDLE 1
K21. 39Q6-42290 [6] WASHER-THRUST 1
K22. 39Q6-42300 [3] PIN-CARRIER 1
K23. S472-600364 [3] PIN-SPRING
24 39Q6-42310 [1] GEAR-SUN 1
25 39Q6-42320 [1] PLATE-THRUST
26 39Q6-42330 [1] COVER
27 S109-16110D [24] BOLT-SOCKET
28 P220-110205 [3] PLUG-HEX
29 S602-035001 [1] RING-RETAINING
30 39Q6-42341 [1] NAME PLATE
30 39Q6-42342 [1] NAME PLATE
30 39Q6-42342 [1] NAME PLATE
31 39Q6-41800 [2] RIVET
32 S631-024001 [3] O-RING
K. 39Q6-42250 [1] CARRIER ASSY KIT 1 SEE ILLUST
K. 39Q6-42180 [1] CARRIER ASSY KIT 2 SEE ILLUST
*-1. @ [1] TRAVEL MOTOR UNIT SEE 4155
K. 39Q6-42250 [1] CARRIER ASSY KIT 1 SEE ILLUST
K. 39Q6-42180 [1] CARRIER ASSY KIT 2

SEE ILLUST















FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount),Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all ,we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely , or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass’y/parts, swing gearbox/ass’y. If you need other excavator parts, we also can supply as your requirements.
