VOE14599946 VOE14505746 VOE14566425 VOE14547274 Planet Carrier Assembly Fit EC250D EC250E EC300D EC300E

Price Negotiable
Price: Negotiated
MOQ: 1pc
Delivery Time: 1-3 working Days
Brand: MENZEH GEARS
Product Description

VOE14599946 VOE14505746 VOE14566425 VOE14547274 EC250D EC250E EC300D EC300E Planet Carrier Assembly Excavator Travel Planet Carrier Assembly



Part Name Planet Carrier Assembly
Part Number VOE14599946 VOE14505746 VOE14566425 VOE14547274
Used For EC250D EC250E EC300D EC300E
Warrenty 3 Months
After Warranty Video technical support Online support Free Spare parts

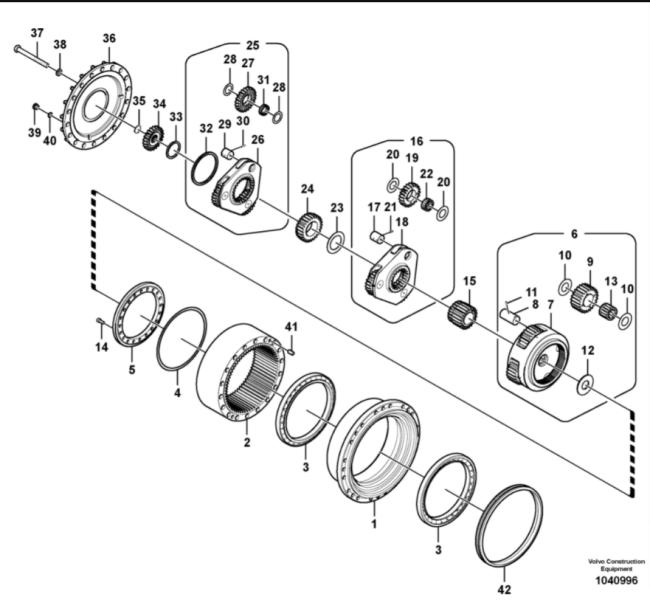

Pos. Part No Qty Parts name Comments
  VOE14599921 [1] Travel gearbox
1 VOE14599922 [1] Housing
2 VOE14599932 [1] Gear
3 SA14599923 [2] Bearing
4 VOE14599927 [1] Shim THICK = 0,6 MM
4 VOE14599928 [1] Shim THICK = 0,8 MM
4 VOE14599929 [1] Shim THICK = 1,0 MM
4 VOE14599930 [1] Shim THICK = 0,7 MM
4 VOE14599931 [1] Shim THICK = 0,9 MM
4 VOE14607977 [1] Shim THICK = 1,1 MM
5 VOE14599926 [1] Retainer
6 VOE14599933 [1] Planet carrier
7 None14599934 [1] Carrier
8 VOE14566415 [4] Pin
9 VOE14599935 [4] Planetary Gear
10 VOE14566414 [8] Washer
11 SA9325-06012 [4] Spring pin
12 SA1036-00300 [1] Ring
13 VOE14566412 [4] Needle bearing
14 VOE983919 [16] Hex. socket screw
15 VOE14599938 [1] Gear
16 VOE14599939 [0001] Planet carrier
17 VOE14599944 [3] Pin
18 None14599940 [1] Carrier
19 VOE14599941 [3] Planetary Gear
20 VOE14599943 [6] Washer
21 SA9325-06012 [3] Spring pin
22 VOE14599942 [3] Needle Bearing
23 VOE14566433 [1] Thrust washer
24 VOE14599945 [1] Gear
25 VOE14599946 [1] Planet carrier
26 None14599947 [1] Carrier
27 VOE14599948 [3] Planetary Gear
28 VOE14599950 [6] Washer
29 VOE14599951 [3] Pin
30 VOE951955 [3] Spring pin
31 VOE14599949 [3] Needle Bearing
32 VOE14569232 [1] Ring
33 VOE14566417 [1] Ring
34 VOE14599952 [1] Gear
35 VOE9541-01038 [1] Snap Ring
36 VOE14599953 [1] Cover
37 VOE982211 [18] Hexagon screw
38 SA9213-20000 [18] Spring washer
39 VOE14883847 [2] Plug
40 VOE990557 [2] O-ring
41 VOE9324-21617 [4] Pin
42 VOE14599925 [1] Seal












FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.
