VOE14547272 VOE14530502 VOE1459995 VOE14599938 EC290B EC300D EC330D EC340D EC350D EC700C Swing Gear
Price:
Negotiated
MOQ:
1pc
Delivery Time:
1-3 working Days
Brand:
MENZEH GEARS
Product Description

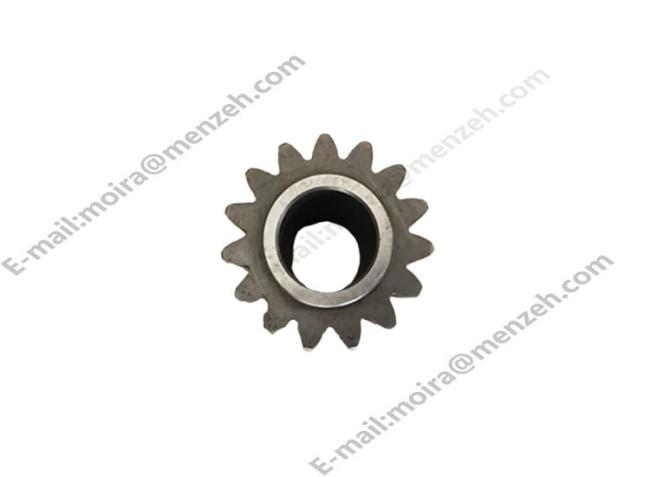

VOE14547272 VOE14530502 VOE1459995 VOE14599938 EC290B EC300D EC330D EC340D EC350D EC700C Swing Gear
| Part Name | Gear |
| Part Number | VOE14547272 VOE14530502 VOE1459995 VOE14599938 |
| Used For | EC290B EC300D EC330D EC340D EC350D EC700C |
| Warrenty | 3 Months |
| After Warranty | Video technical support Online support Free Spare parts |

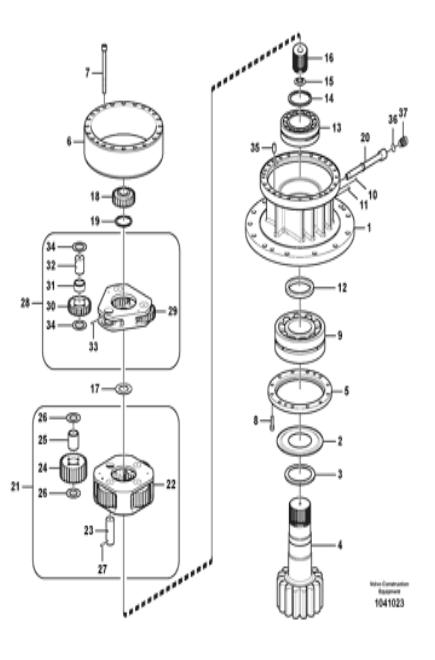

| Pos. | Part No | Qty | Parts name | Comments |
| VOE14569767 | [1] | Swing gearbox | ||
| 1 | VOE14547262 | [1] | ||
| 2 | VOE14547260 | [1] | Ring | |
| 3 | VOE14547259 | [1] | Collar | |
| 4 | VOE14547258 | [1] | Shaft | |
| 5 | VOE14547263 | [1] | Cover | |
| 6 | VOE14547266 | [1] | Gear | |
| 7 | VOE984363 | [0020] | Hex. socket screw | |
| 8 | VOE13944938 | [12] | Screw | |
| 9 | VOE14547261 | [1] | Bearing | |
| 10 | SA9415-43012 | [1] | Plug | |
| 11 | VOE914167 | [1] | Lubricating nipple | |
| 12 | VOE14566830 | [1] | Seal | |
| 13 | VOE14547265 | [1] | Bearing | |
| 14 | SA9541-01110 | [1] | Retaining ring | |
| 15 | SA7118-30380 | [1] | Thrust ring | |
| 16 | VOE14547272 | [1] | Gear | |
| 17 | VOE14880960 | [1] | Retaining ring | |
| 18 | VOE14547279 | [1] | Gear | |
| 19 | VOE14547278 | [1] | Thrust washer | |
| 20 | VOE14547281 | [1] | Pipe | |
| 21 | VOE14547280 | [1] | Planet carrier | |
| 22 | VOE14547267 | [1] | Planet carrier | |
| 23 | VOE14547271 | [4] | Pin | |
| 24 | VOE14547268 | [4] | Gear | |
| 25 | VOE14547269 | [4] | Bushing | |
| 26 | VOE14556491 | [8] | Washer | |
| 27 | SA9325-06012 | [4] | Spring pin | |
| 28 | VOE14547273 | [1] | Planet carrier | |
| 29 | VOE14547274 | [1] | Planet carrier | |
| 30 | VOE14547275 | [3] | Gear | |
| 31 | SA7117-30230 | [3] | Needle bearing | |
| 32 | VOE14547277 | [3] | Pin | |
| 33 | SA9325-06012 | [3] | Spring pin | |
| 34 | VOE14547276 | [6] | Washer | |
| 35 | VOE950677 | [4] | Pin | |
| 36 | VOE949329 | [1] | Gasket | |
| 37 | VOE14722461 | [1] | Draining valve |




FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.
