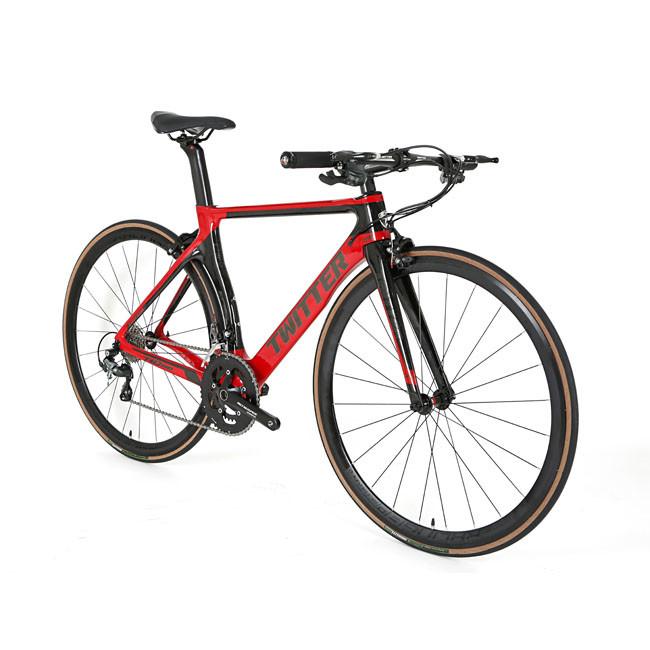

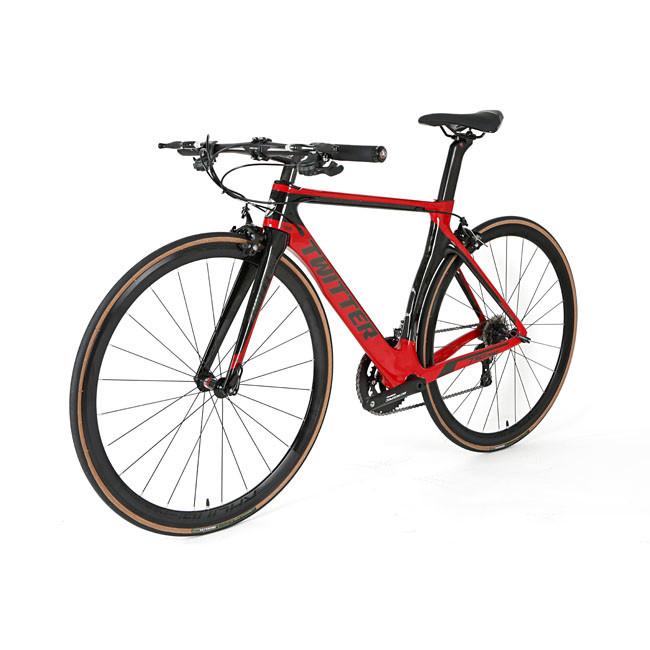

Shimano 20 Speed Carbon Fiber Hybrid Bike With ISO9001 Certification
Carbon Fiber Frame Hybrid Road Bike TWITTER T10-CPB Wheel Size 700*40C
700*25C tire Full Hidden cable Carbon bike
| Bike Model | T10-CPB 4700-20S |
| ConfRev | SHIMANO TIAGRA/4700-20S |
| Wheel Size | 700*25C |
| Frame Height | 46cm / 48cm / 50cm/52cm / 54cm |
| Bike Color | BlackRed / Black / Red / Ti / Yellow / Blue |
| Net Weight | About 8.5KG |
| Frame | T10pro, high modulus Carbon T800,EPS,Aero-Racing,Inner-Cable,Gloss&Cut,UV laser colorful decals |
| Handelbar Sets | TW, Alu alloy,Matte,Handlebar 31.8×700,Stem 90,Seat post 31.6×350mm |
| Seat Post | High modulus Carbon,Aero-Racing, water decals |
| Fork | T10pro, high modulus Carbon, 700C, UV laser colorful decals |
| Derailleur Handle | SHIMANO TIAGRA/4700-20S |
| Front Derailleur | SHIMANO TIAGRA/4700 |
| Rear Derailleur | SHIMANO TIAGRA/4700 |
| Cranksets | RS, Alu alloy,Hollow,34-50T |
| Cassettes | SUNSHINE-10S,11-28T |
| Chain | YBN-10S |
| Brake | TEKTRO, Alu alloy Rim C-clamper, FR5 brake lever |
| Hubs | RS, Alu alloy,4-sealed Bearings,Slotted,F20*R24 holes |
| Rim | RS, Alu alloy AL7005,Double wall,Matte,W19×H36mm×700C |
| Spoke | SHUNJIU,Circular 14G,Bend head |
| Tyre | INNOVA, 700*25C, Skin-color edge |

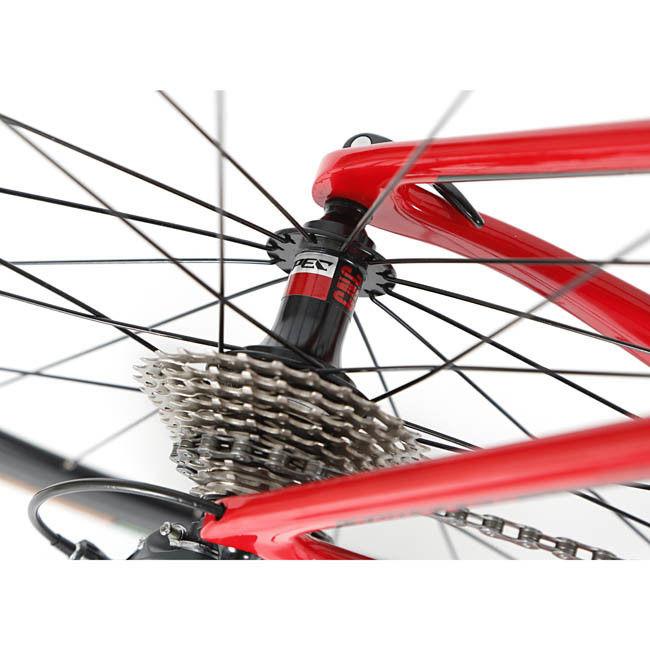

Hybrid Carbon Road bike shows in Details.

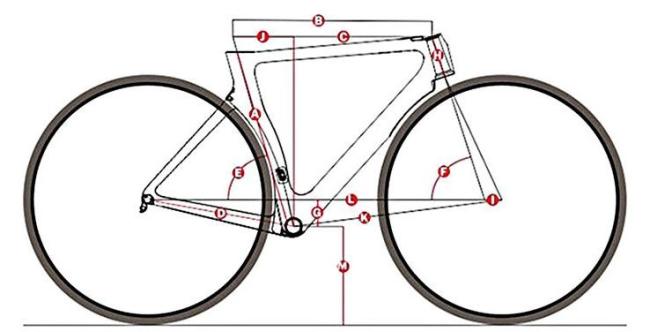

Geometry Size of T10-CPB bike frame, size suitable for adult height from 61 inch-78.74 inch.
| T10 | |||||||||||||
| size | A | B | C | D | E | F | G | H | I | J | K | L | M |
| mm | mm | mm | mm | ° | ° | ° | mm | mm | mm | mm | mm | mm | |
| XS - 45cm | 460 | 525 | 370 | 405 | 75.5 | 71 | 72 | 95 | 45 | 141 | 568 | 962 | 270 |
| S - 48cm | 480 | 535 | 374 | 405 | 74.5 | 71.5 | 72 | 100 | 45 | 149 | 569 | 963 | 270 |
| M - 51cm | 500 | 545 | 379 | 405 | 74.5 | 72 | 72 | 115 | 45 | 154 | 575 | 970 | 270 |
| L-52 | 520 | 555 | 383 | 405 | 74 | 72.5 | 72 | 130 | 45 | 161 | 580 | 974 | 270 |
| X L - 54cm | 540 | 565 | 389 | 405 | 74 | 72 | 72 | 145 | 45 | 167 | 587 | 985 | 270 |
| FRAME SIZE WITH RIDER HEIGHT | |||||||||||||
| Frame size | XS - 46cm | S - 48cm | M - 50cm | L-52cm | L-54CM | ||||||||
| Rider height | 155-170cm | 165-175cm | 175-185CM | 185-195cm | 195-205CM | ||||||||

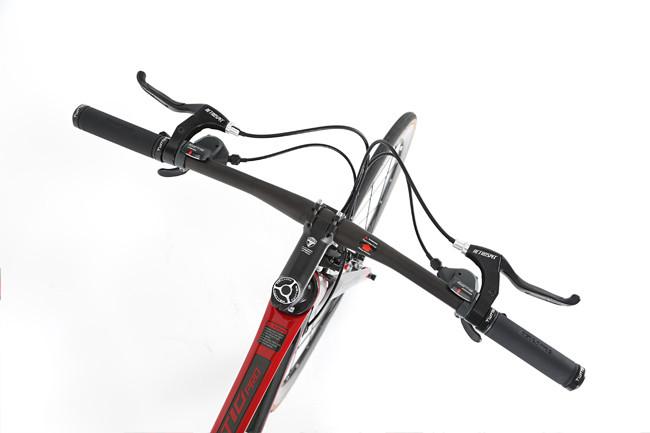

Handel bar: TW, Alu alloy,Matte,Handlebar 31.8×700,Stem 90mm.
High quanlity Derailleur Lever: SHIMANO TIAGRA/4700-20S;

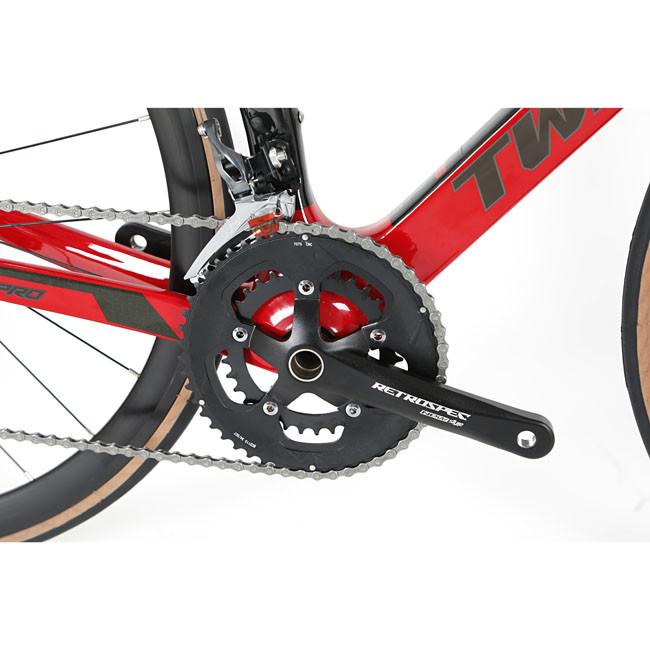

Cranksets: RS, Alu alloy, Hollow, 34-50T

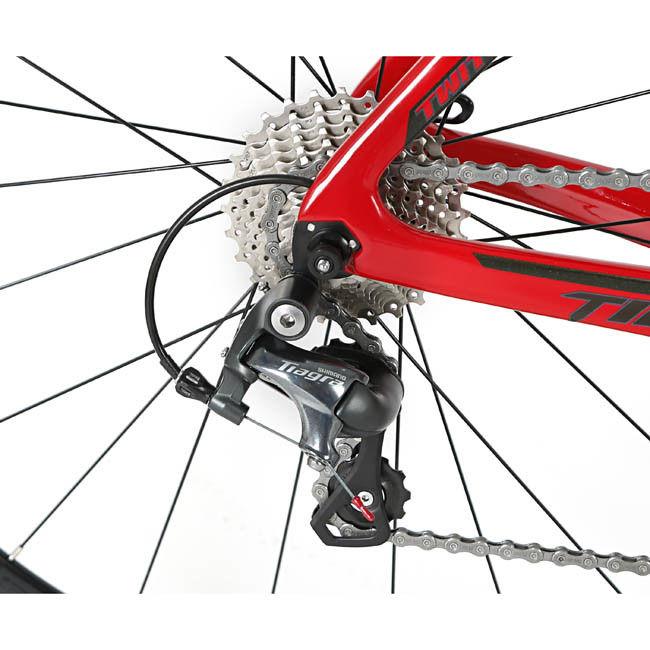

Rear Derailleur: SHIMANO TIAGRA/4700
Cassettes: SUNSHINE-10S,11-28T
