ISO9001 Carbon Road Bike Frame 1.02KG Lightweight Professional
2021 Light 1.02KG Carbon Fiber Twitter Road Bike Frame 700C EPS
Frame specification:
Brand:TWITTER
Model/Name:CYCLONEpro-Disc carbon road Frame+Fork+Seat post+
Headsets+Cover&Washer +Lever+Handlebar set
Feature:All cables inner Routing
Frame Size(Height):45cm / 48cm / 51cm / 54cm
Material:High modulus Carbon fiber(T900 mix)
ASSY Size:700C, BB86*46 Pressed+Head tube 52*52&Cover, Hanging fixed to FD, Thru axle F12*100_R12*142mm, Flat-mount post, Inner fixed to seat post, max 700*28C tyre
Process:XC-Racing, EPS, Inner-Cables, Matte or Gloss or Holographic color paint, UV laser colorful decals
Weight:Frame 1.02KG, Fork 0.43KG, Seat post 0.19KG, Handlebar set 0.19KG
| size | A | B | C | D | E | F | G | H | I | J | K |
| BB Center to Top of Seat Tube | Effective Top Tube Horizontal | BB offset | Chainstay Length | Seat angle | Head Angle | Front Center | Head Tube Length | Fork Offset | Reach | Stack | |
| mm | mm | mm | mm | ° | ° | mm | mm | mm | mm | mm | |
| XS - 45cm | 450 | 505 | -74 | 408 | 74.3 | 71.2 | 570 | 100 | 55 | 363 | 506 |
| S - 48cm | 480 | 520 | -74 | 408 | 74.3 | 71.2 | 588 | 114 | 55 | 374 | 518 |
| M - 51cm | 510 | 538 | -74 | 408 | 74.3 | 71.2 | 607 | 130 | 55 | 388 | 534 |
| L - 54cm | 540 | 550 | -74 | 408 | 74.3 | 71.2 | 620 | 150 | 55 | 394 | 553 |
Warranty
European quality level
1) All of carbon bike frames will be tested before shipping.
2) The design, injection, QA & packaging are all done in-house for efficiency and to standardized a high level of quality control.
3) Warranty is 5 years under normal using (not manmade damage).
4) Quality is our number 1 focus for the entire team.
5) If you received some not working can show the pictures to us or send it back to us to repair or replace.
Selling Point
Features: 1. 2021 new Aero shape design
2. Integrated handlebar
3. Invisible seat clamp
4. Max fit for 28mm tires
5. Internal cable routing

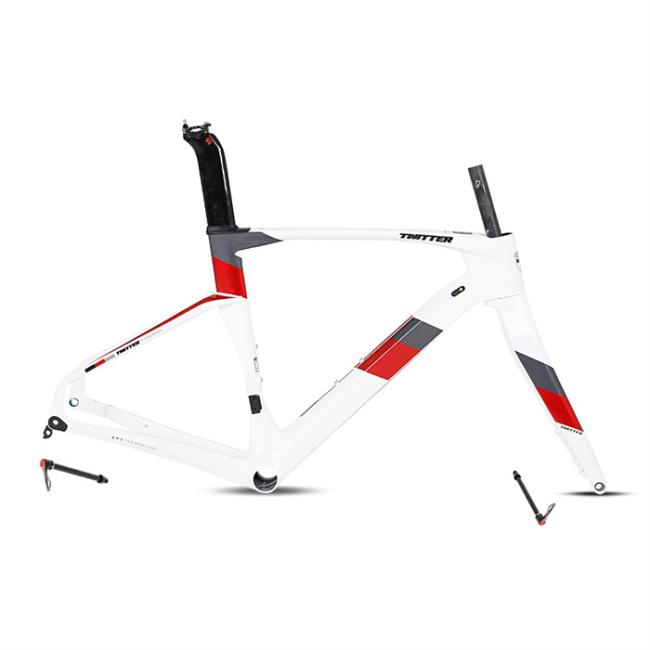

White red
Shipment:
2 Instruction:the weight and size we marked in the package details is not the actual weight and size of the goods
A Transportation developed countries is about 7-35 days
B Remote countries is about 2-8 weeks
5 Instruction:The shipping time is depends on the buyer's customs clearance time or Force Majeure. If buyer does not receive the goods in a long time, we hope buyer can contact your customs or local post office, in order to get goods soon.
Pre-sales service
1. Fully charged with scooter before delivery.
2. Any inquiry about scooter is welcomed. Prompt response.
3. Customer request Or Customized specification is acceptable.
4. 100% test and inspection before packing.
5. Fast delivery and shipping status tracking.
Silver
Why Chose Us
- Factory of original price
- Logo customized
- OEM manufactured and popular design
- More availble size and color for your choice
- CE, SGS, and other certificates
- Customized packages
- Lifelong aftersales tracking
- Stable supply and fast delivery
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
