Full Inner Cable Carbon Fiber Road Bike Carbon Integrated Handlebar Carbon Wheels 700c
Full Inner Cable Carbon Fiber Road Bike Carbon Integrated Handlebar Carbon Wheels 700c
The features of T10pro
1.【T800 Carbon Fiber】:The entire frame and rims of a road bike are made of T800 carbon fiber, which is lighter, stronger rigidity than ordinary bicycles. The whole bike weighs 7.9 kgs.
2.【Full Integrated Inner Cable design】:The whole Road Bike is designed with fully internal cable,Reduce the wind resistance and smoother riding.The tapered handlebar strengthens the smoothness of torsion and give riders a better handling.
3.【SRAM RIVAL-22 Speed Group Sets】:SRAM RIVAL-22 speed brake with Front derailleur,Rear derailleur,2*11 Shifter Levers-Designed for smooth and quiet stopping power.
Components:
| Frame | T10pro(disc&thru-axle), high modulus Carbon T800,EPS,Aero-Racing,Inner-Cable,Gloss&Cut,UV laser colorful decals |
| Handelbar Sets | Carbon,integrated Hb&St(420*90mm),Hidden-Cables |
| Seat Post | High modulus Carbon,Aero-Racing,Reflective water decals |
| Clamps | Hidden Screw Fit to Frame |

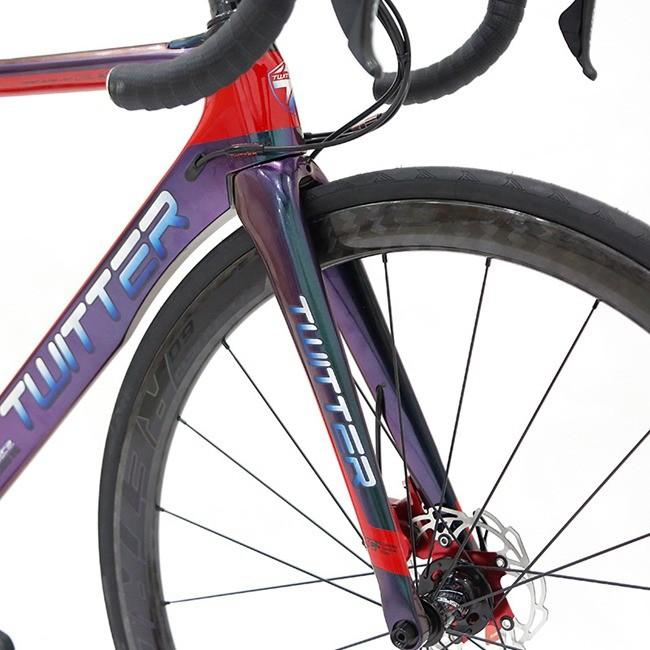

| Fork | T10pro, high modulus Carbon, 700C, UV laser colorful decals, Disc&thru-axle 12×100mm |
| Head Sets | TW, Alu alloy CNC with sealed-Bearings 42*52mm |
| Washer | Carbon 3K, 3×28.6×10mm |

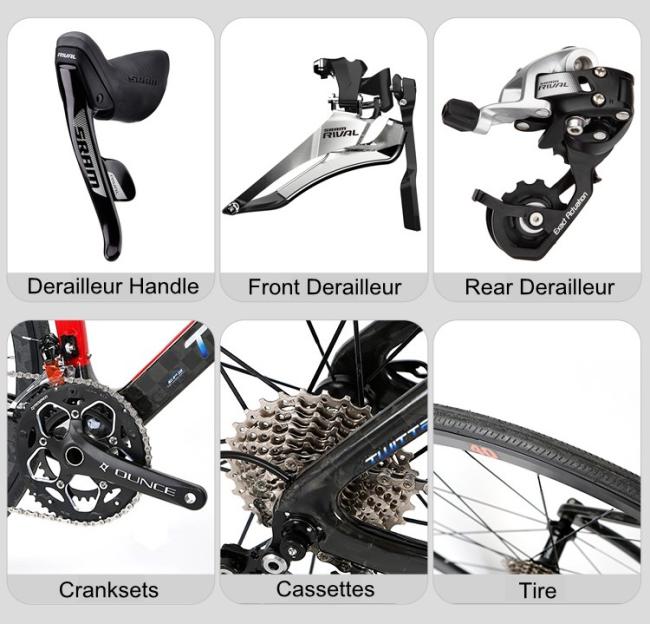

| Derailleur Handle | SRAM RIVAL-22S |
| Front Derailleur | SRAM RIVAL |
| Rear Derailleur | SRAM RIVAL |
| Cranksets | SRAM RIVAL, Hollow,34-50T |
| Cassettes | SUGEK-11S, 11-30T |
| Chain | YBN-11S |
| BB | BB86×46×24mm, pressed, alloy CNC&Hollow |

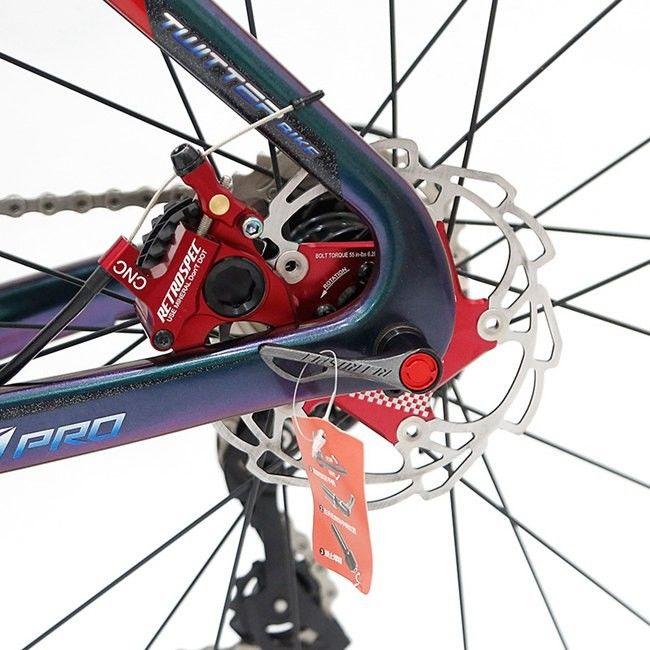

| Brake | RS, flat-mount&cable pull Hydraulic disc brake(with metal radiator)+PRO floating disc 140mm |
| Hubs | TW,Alu alloy in Carbon,4-sealed Bearings,Slotted,Disc&thru-axle |
| Rim | RS, carbon 12K twill,Clincher,W23×H50mm×700C |
| Spoke | Pillar, Stainless Pro,Flat 14G,Straight |
| Tire | Continental, UltraSportII, 700*25C |
Details:RIVAL-22S-B, carbon wheel
Size:700C*46cm / 48cm / 50cm / 52cm / 54cm

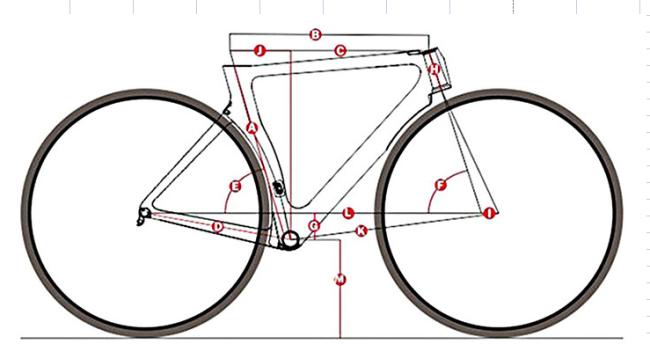

| The Geometry of T10pro | |||||||||||||
| size | A | B | C | D | E | F | G | H | I | J | K | L | M |
| mm | mm | mm | mm | ° | ° | ° | mm | mm | mm | mm | mm | mm | |
| XS - 45cm | 460 | 525 | 370 | 405 | 75.5 | 71 | 72 | 95 | 45 | 141 | 568 | 962 | 270 |
| S - 48cm | 480 | 535 | 374 | 405 | 74.5 | 71.5 | 72 | 100 | 45 | 149 | 569 | 963 | 270 |
| M - 51cm | 500 | 545 | 379 | 405 | 74.5 | 72 | 72 | 115 | 45 | 154 | 575 | 970 | 270 |
| L-52 | 520 | 555 | 383 | 405 | 74 | 72.5 | 72 | 130 | 45 | 161 | 580 | 974 | 270 |
| X L - 54cm | 540 | 565 | 389 | 405 | 74 | 72 | 72 | 145 | 45 | 167 | 587 | 985 | 270 |
| FRAME SIZE WITH RIDER HEIGHT | |||||||||||||
| Frame size | XS - 46cm | S - 48cm | M - 50cm | L-52cm | L-54CM | ||||||||
| Rider height | 155-170cm | 165-175cm | 175-185CM | 185-195cm | 195-205CM | ||||||||

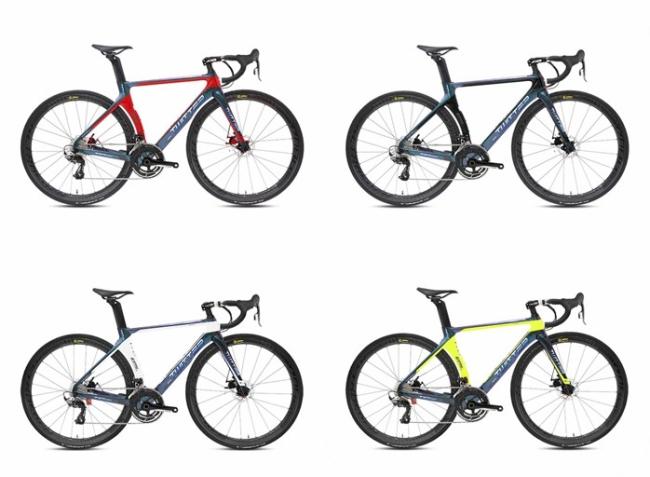

Colors: Holographic color(Red / Black) /OEM
