SHIMANO 105/R7000 Carbon Fiber Road Bike , 8.5 KG Road Bike Integrated
Carbon Fiber Road Bike TWITTER CYCLONEpro Carbon Integrated Handlebar SHIMANO 105/R7000 Carbon Wheel
CUSTOMIZED SERVICES
(1) Customized logo can be accepted.
(2) Color combination is available
AFTER-SALES SERVICES
(1) Frame and fork: 1 year's warranty
(2) Mechanical parts: 1/2 year's warranty
Component:
| Frame | CYCLONEpro(Disc&thru-axle 12×142mm), high modulus Carbon,EPS,Racing,full Inner-Cables,Gloss or Matte,UV embossing decals |

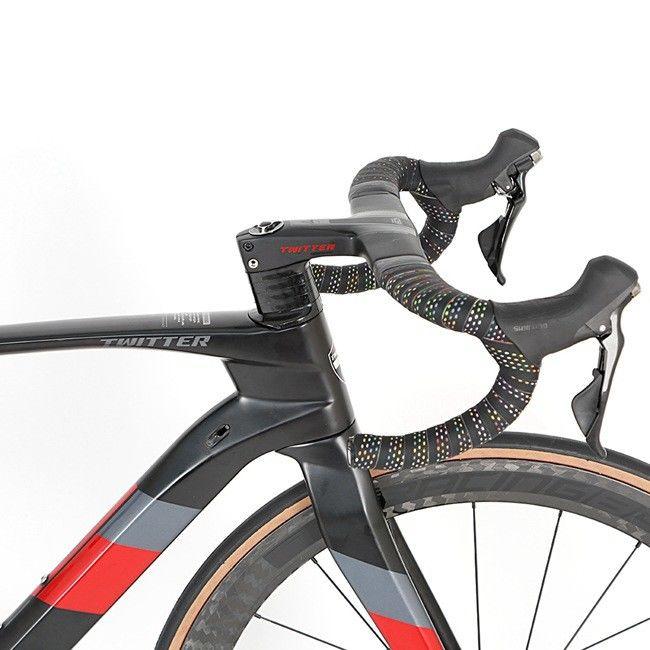

| Handelbar Sets | TW, high modulus Carbon, Integrated Handlebar&Stem(420*90mm),UV embossing water decals, full Inner-Cables |
| Seat Post | High modulus Carbon, UV decals |
| Clamps | Hidden Screw Fit to Frame |
| Fork | CYCLONEpro, high modulus Carbon,700C,UV embossing decals, Disc&thru-axle 12×100mm |
| Head Sets | TW, Alu alloy CNC with sealed-Bearings 52*52mm |
| Washer | Carbon 3K, 3×28.6×10mm |
| Derailleur Handle | SHIMANO 105/R7000-22S |
| Front Derailleur | SHIMANO 105/R7000 |
| Rear Derailleur | SHIMANO 105/R7000 |

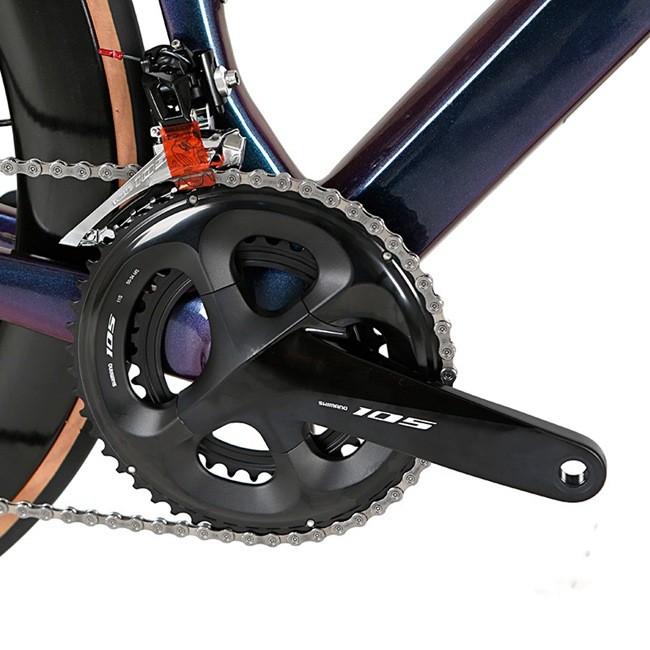

| Cranksets | SHIMANO 105/R7000, 34-50T |
| Cassettes | SHIMANO 105/R7000-11S,11-28T |
| Chain | SHIMANO HG601-11S |
| BB | BB86×46×24mm, pressed, Alu alloy CNC&Hollow, with sealed bearings |
| Brake | RS, flat-mount&cable pull Hydr(metal radiator)+PRO float disc 140 |
| Hubs | TW Alu alloy in Carbon, 4-sealed Bearings,Slotted,F20-R24 holes,Disc&thru-axle F12×100_R12×142mm |
| Rim | RS ultra-light carbon 3K twill,Clincher,W25×H50mm×700C, UV decals |
| Spoke | Pillar, Stainless Pro, Flat 14G,straight |
| Tyre | INNOVA-PRO, Smoothie, 60TPI, 700*25C, Skin-color edge |
CYCLONEpro Details: R7000-22S, carbon wheel
Size:700C*45cm / 48cm / 51cm / 54cm

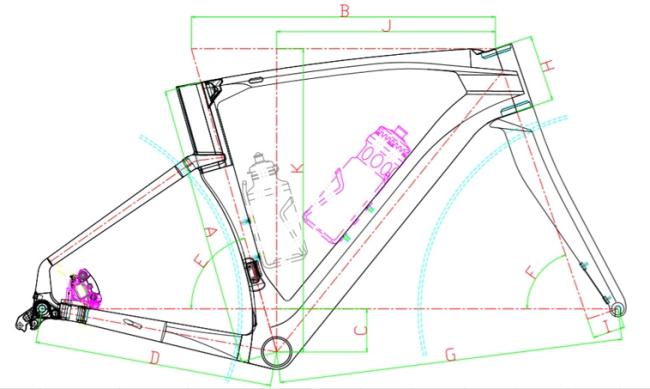

| The Geometry of CYCLONEpro | |||||||||||
| size | A | B | C | D | E | F | G | H | I | J | K |
| BB Center to Top of Seat Tube | Effective Top Tube Horizontal | BB offset | Chainstay Length | Seat angle | Head Angle | Front Center | Head Tube Length | Fork Offset | Reach | Stack | |
| mm | mm | mm | mm | ° | ° | mm | mm | mm | mm | mm | |
| XS - 45cm | 450 | 505 | -74 | 408 | 74.3 | 71.2 | 570 | 100 | 55 | 363 | 506 |
| S - 48cm | 480 | 520 | -74 | 408 | 74.3 | 71.2 | 588 | 114 | 55 | 374 | 518 |
| M - 51cm | 510 | 538 | -74 | 408 | 74.3 | 71.2 | 607 | 130 | 55 | 388 | 534 |
| L - 54cm | 540 | 550 | -74 | 408 | 74.3 | 71.2 | 620 | 150 | 55 | 394 | 553 |
| FRAME SIZE WITH RIDER HEIGHT | |||||||||||
| Frame size | XS - 45cm | S - 48cm | M - 51cm | L-54cm | |||||||
| Rider height | 155-170cm | 165-175cm | 175-185CM | 185-195CM | |||||||
Angles:
CUSTOM BIKE LOGO SERVICE
> Available custom logo color : white or black - Premium engineering reflective film - better safety visibility
> Logo size : maximum 13 inch x 1.75 inch
Custom logo design procedure
> Purchase TWITTER carbon road bike
> Send us your logo file or logo name
> Finalize logo design within 5days.
> Confirm the sample within 7 days.
