Stainless Steel Self Priming Oil Pump High Pressure Explosion Proof Chemical
Stainless Steel Self-Priming Oil Pump High Pressure Self-Priming Explosion-Proof Acid-Base Chemical
Features and benefits of self-priming acid and alkali resistant pump:
1. The pump is made by injection molding of FRPP/ PVDF material, which is resistant to corrosion. The material is selected according to the Ph value of the liquid
2. Applicable temperature:Below 65 ° C for FRPP, below 90° C for PVDF
3. The efficiency of the pump can be increased by about 10% to 20% and can save 0.5-1KW power
4. The pump can choose equipped with self-cooling shaft seal, with the application of self-cooling design can avoid idle running

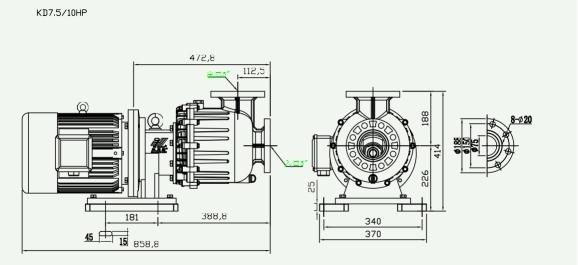

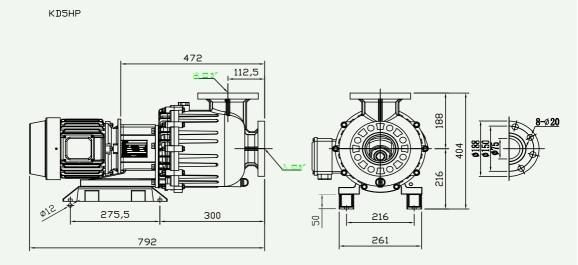

Parameters of self-priming acid and alkali resistant pump:
|
Model |
L |
W |
H |
A |
B |
C |
D |
E |
F |
H |
D1 |
D2 |
N-D1 |
|
KD 4002 |
640 |
295 |
370 |
208 |
253 |
275 |
320 |
269 |
130 |
298 |
140 |
105 |
4-Φ19 |
|
KD 4012 |
656 |
295 |
370 |
208 |
253 |
275 |
320 |
269 |
130 |
298 |
140 |
105 |
4-Φ19 |
|
KD 4022 |
665 |
295 |
380 |
208 |
253 |
275 |
320 |
269 |
130 |
298 |
155 |
120 |
4-Φ19 |
|
KD 5032 |
665 |
295 |
380 |
208 |
253 |
275 |
320 |
269 |
130 |
298 |
155 |
120 |
4-Φ19 |
|
KD 5052 |
790 |
295 |
380 |
208 |
253 |
275 |
320 |
269 |
130 |
298 |
155 |
120 |
4-Φ19 |
Application of self-priming acid and alkali resistant pump:
They are used for transmission of liquids (oil, sea water ,sulphuric acid, phosphoric acid, H2SiF6acid, alkali liquid) with low or high temperature, neutral or corrosive liquids ,or liquids with solid granular and widely used in petroleum chemical industry ,oil refining industry, paper ,pulp industry ,sugar industry ,mining ,etc.
Lots of material can be chose for different working condition, such as cast steel ,stainless steel 304,316,2205,904L, Hartz alloy C276,C22, nickel-base alloy GH600, PVDF,PP, UHMWPE-lining .etc.
Pump a strong seal system :packing seal ,double face mechnical seal ,cartridge mechnical seal ,API682 flushing syestem.
