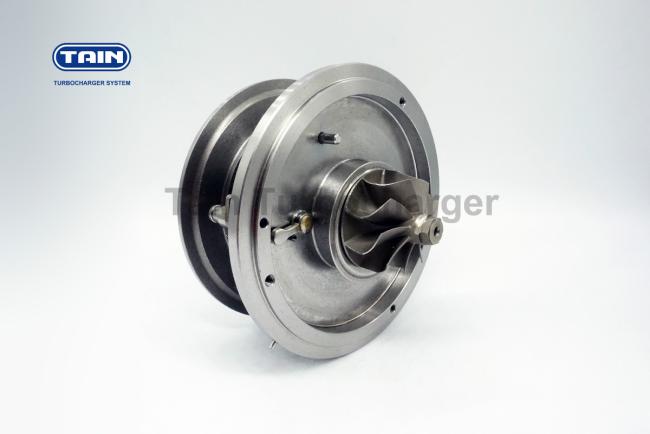

Turbocharger Chra 786137-0001 , 786137-0003 55570748 for Opel Insignia
Turbocharger Chra 786137-0001 , 786137-0003 55570748 for Opel Insignia
DESCRIPTION
—— Model :
GTB1549V
—— Turbo No. :
786137-0001 , 786137-0003
— — OEM No. :
55570748 , 5860381 , 860335 , 55566448
—— Balancing Test :
<0.5Mg.mm / 150000RPM
—— Condition:
Brand new
—— Fitted Cars :
Opel Insignia CDTi 2.0L 118KW A20DTH
Opel Insignia 2.0L CDTI Ecotec 118KW A20DTH Euro V
—— Material
turbine wheel: K418
compressor wheel: C355
bearing house: HT250 Gray iron
Turbine wheels & compressor wheels size information
| Turbine Wheels | ||
| (A) Inducer | (B) Exducer | Blades |
| 41 | 37.6 | 9 |
| Compressor Wheels | ||
| (A) Inducer | (B) Exducer | Blades |
| 34.7 | 49 | 6/6 |
OTHER MODELS WE SUPPLY
Tain supplies high performance turbo cartridges(CHRAS) and turbo kits to aftermarket worldwide.
Originally manufactured by Honeywell(Garrett),BorgWarner(KKK),MHI(Mitsubishi), IHI, Toyota, Holset.
Model cover :
Garrett: GT12,GT14,GT15-25,GT35,GT37,GT42,T2,T3,T04B-E
KKK: K03,K04,K14,K16,K24,K27,KP35,BV39,BV40,BV45,BV50
Schwitzer: S100,S1A,S1B,S200,S2A,S2B-E,S300,S3A,S3B,S400,S410
Holset:
HX30(W),HX35(W),HX40(W),HX50(W),HX55(W),HE211(W),HE35V,HE40V,HE55V
IHI: RHB3,RHF3,RHF4,RHF5,
MHI: TC04,TC06,TD02,TD03,TD04,TD05,TD06,TF035
Toyota: CT9,CT12,CT12B,CT16,CT20,CT20B,CT26
