R480LC-9S Hyundai Excavator Final Drive Construction Machinery R485VS Travel Hydraulic Motor
Price:
1000.00-5000.00USD
MOQ:
1
Delivery Time:
1-3days
Brand:
TGFQ
Product Description
R480LC-9S Hyundai Excavator Final Drive Construction Machinery R485VS Travel Hydraulic Motor
Product Specifications
Part Name:Final Drive Assy
Quality:Good Quality
Model:R485VS R480LC-9S R520LC-9S
Payment:T/T / Trade Assurance Payment
Condition:New
Packaging:Wooden box with safety
Warranty:3 Months - 6 Months
Delivery:Within 3 days after received payment
About Excavator Travel Devices
A travel motor is a critical component of an excavator's hydraulic drive system, powered by the machine's main hydraulic pump. The travel motor generates power that the final drive converts into torque, enabling the excavator's movement and operation.

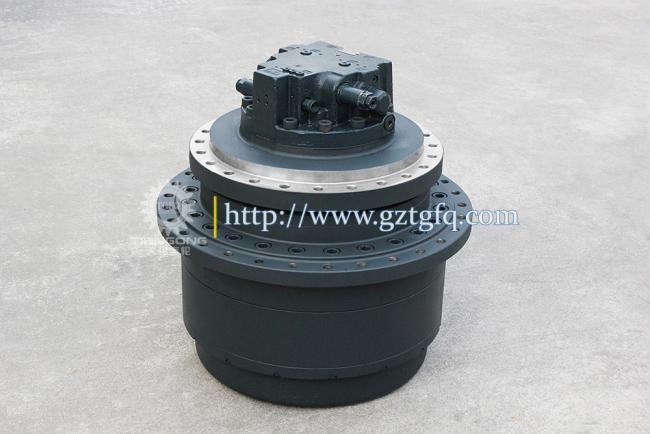

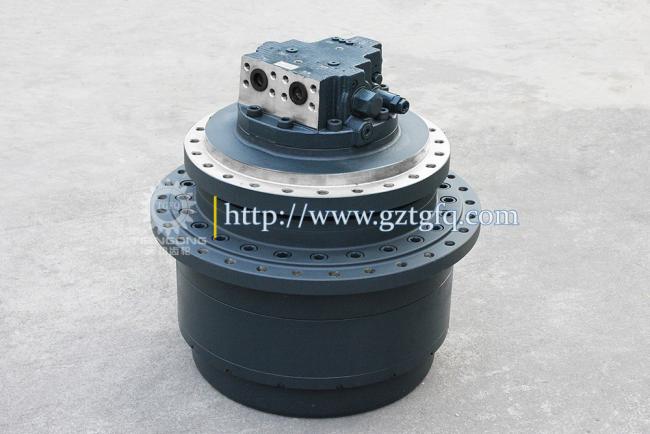

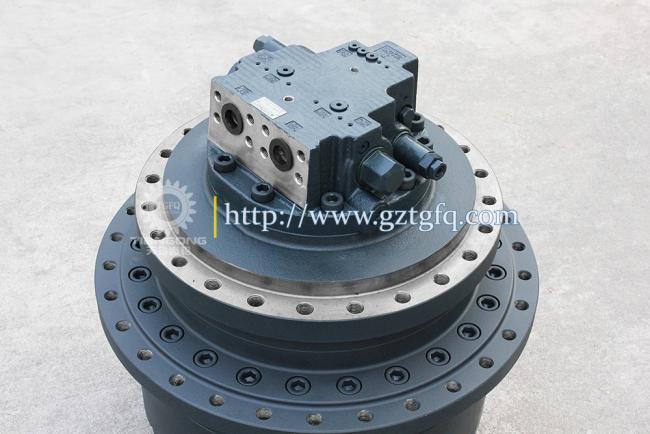

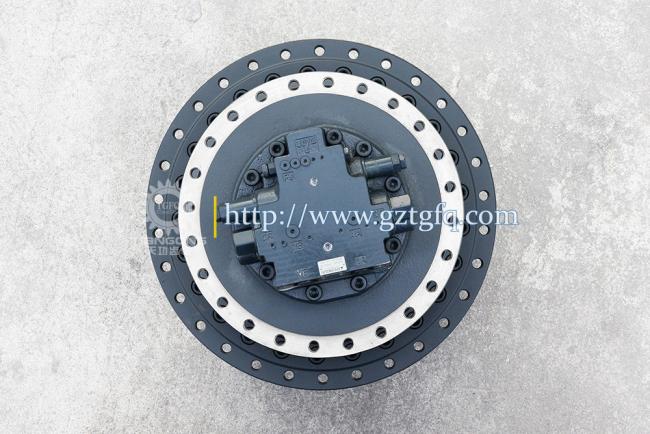

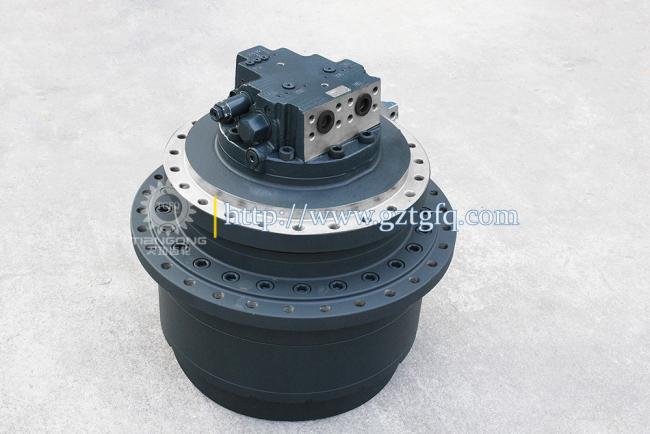

R485VS Final Drive Assembly Images

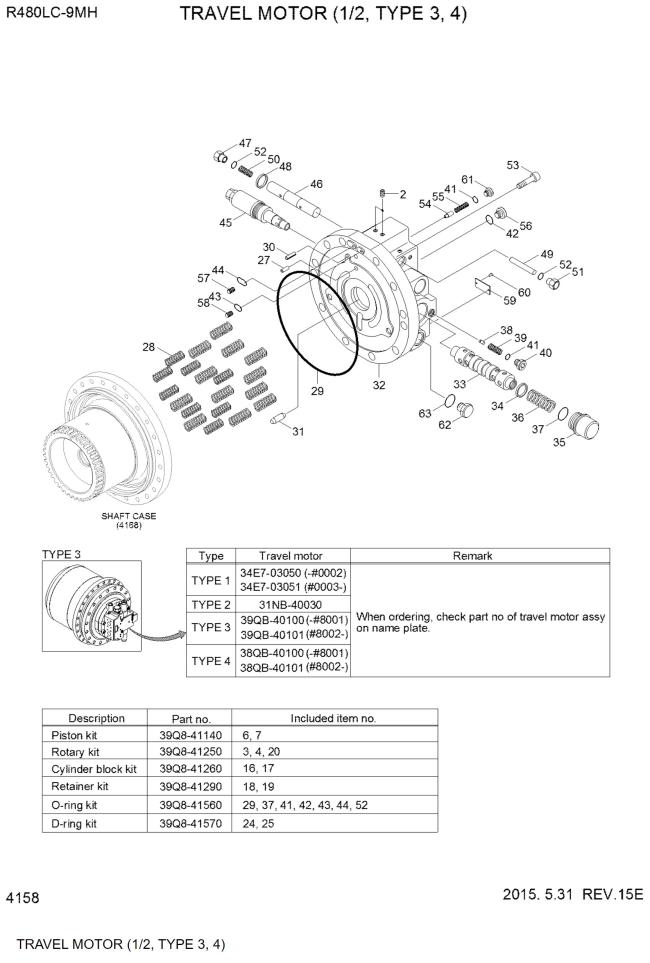

R485VS Final Drive Assembly Technical Drawing
Parts List & Components
| Pos. | Part No | Qty | Parts Name | Comments |
|---|---|---|---|---|
| *. | 39QB-40100 | [1] | TRAVEL MOTOR ASSY | TYPE 3 |
| *. | 39QB-40101 | [1] | TRAVEL MOTOR ASSY | TYPE 3 |
| *. | 38QB-40100 | [1] | TRAVEL MOTOR ASSY | TYPE 4 |
| *. | 38QB-40101 | [1] | TRAVEL MOTOR ASSY | TYPE 4 |
| *-1. | 39QB-41100 | [1] | TRAVEL MOTOR | TYPE 3 |
| *-1. | 38QB-41100 | [1] | TRAVEL MOTOR | TYPE 4 |
| 2 | 39Q6-41120 | [14] | PLUG | |
| 27 | 39Q8-41410 | [1] | PIN-PARALLEL | |
| 28 | 39Q8-41420 | [14] | SPRING | |
| K29. | Y172-049004 | [1] | O-RING | |
| 30 | S471-800404 | [1] | PIN-SPRING | |
| 31 | 39Q6-41450 | [2] | PIN-PARALLEL | |
| 32 | 39QB-41140 | [1] | COVER-REAR | |
| 33 | 39QB-41150 | [1] | MAIN SPOOL ASSY | |
| 34 | 39QB-41200 | [2] | SEAT-SPRING | |
| 35 | 39QB-41210 | [2] | PLUG | |
| 36 | 39Q6-41540 | [2] | SPRING | |
| K37. | S632-040004 | [2] | O-RING | |
| 38 | 39QB-41330 | [2] | RESTRICTOR | |
| 39 | 39Q8-41520 | [2] | SPRING | |
| 40 | 39Q6-41780 | [2] | PLUG | |
| K41. | S631-008004 | [5] | O-RING | |
| K42. | S631-011004 | [2] | O-RING | |
| K43. | S631-012004 | [1] | O-RING | |
| K44. | S631-016004 | [1] | O-RING | |
| 45 | 39QB-41220 | [2] | RELIEF VALVE ASSY | |
| 46 | 39Q8-41530 | [1] | SPOOL | |
| 47 | 39Q8-41540 | [1] | PLUG | |
| 48 | 39Q6-41710 | [1] | SEAT-SPRING | |
| 49 | 39Q6-41720 | [1] | PIN-PARALLEL | |
| 50 | 39Q6-41730 | [1] | SPRING | |
| 51 | 39Q6-41740 | [1] | CONNECTOR | |
| K52. | S631-014004 | [2] | O-RING | |
| 53 | S109-18055D | [10] | BOLT-SOCKET | |
| 53 | S109-180556 | [10] | BOLT-SOCKET | TYPE 4 |
| 54 | 39Q6-41760 | [3] | VALVE-CHECK | |
| 55 | 39Q6-41770 | [3] | SPRING | |
| 56 | 39Q6-41750 | [2] | PLUG | |
| 57 | 39Q6-41880 | [1] | RESTRICTOR | |
| 58 | 39Q6-41860 | [1] | RESTRICTOR | |
| 59 | 39QB-41320 | [1] | NAME PLATE | |
| 60 | 39Q6-41800 | [2] | RIVET | |
| 61 | 39QB-41340 | [3] | PLUG | |
| 62 | P220-110104 | [2] | PLUG-HEX | TYPE 4 |
| 63 | S631-018004 | [2] | O-RING | TYPE 4 |
| *-2. | @ | [1] | TRAVEL REDUCTION GEAR | SEE 4178 |
| K. | 39Q8-41140 | [1] | PLUG KIT | SEE ILLUST |
| K. | 39Q8-41250 | [1] | ROTARY KIT | SEE ILLUST |
| K. | 39Q8-41290 | [1] | RETAINER KIT | SEE ILLUST |
| K. | 39Q8-41560 | [1] | O-RING KIT | SEE ILLUST |
| K. | 39Q8-41570 | [1] | D-RING KIT | SEE ILLUST |
Our Warehouse & Inventory
We maintain over 4000 square meters of three-dimensional warehouse space and more than 2000 square meters of outdoor warehouse facilities. This extensive storage capacity ensures we maintain sufficient inventory levels and can respond rapidly to customer requirements. Fast delivery is one of our key competitive advantages.
Frequently Asked Questions
What products and services do you provide?
We specialize in providing digging final drive and swing drive motors, reducer gearboxes, and their component parts for excavators.
Can I order a sample for testing before placing a larger order?
Yes, we welcome sample orders for testing and quality verification.
What is your ordering process?
Simply provide us with the model numbers and quantities you require. We will issue a proforma invoice, and upon payment receipt, we will prepare your order. Preparation time varies based on order complexity and volume.
Do you operate your own manufacturing facility?
Yes, we have our own factory with 23 years of specialized experience in the excavator gear industry, ensuring quality control and manufacturing expertise.
