SK330-6 SK320-6 Slewing Gearbox Excavator Swing Gear Reducer
Price:
200.00-800.00USD
MOQ:
1
Delivery Time:
1-3days
Brand:
TGFQ
Product Description
SK330-6 SK320-6 Slewing Gearbox Excavator Swing Gear Reducer
Swing Gear Reducer SK330-6 SK320-6 Slewing Gearbox from China Manufacturer
Product Specifications
Model: SK330-6E SK320-6
Brand: TGFQ
Part Number: 24100J16661F4
Part Name: Swing Reduction
Process: Heat Treatment
Delivery Methods: By Air / By Express / By Sea

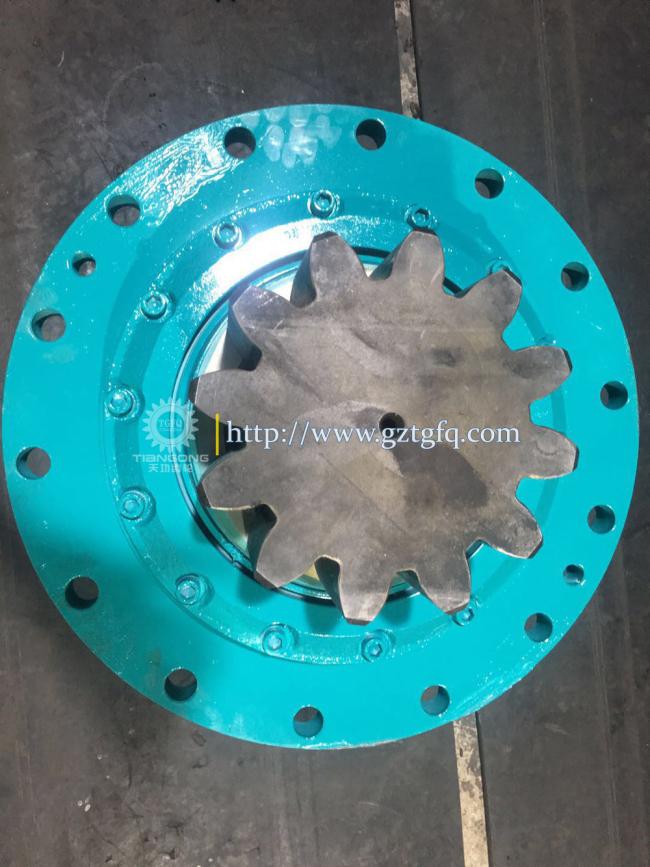

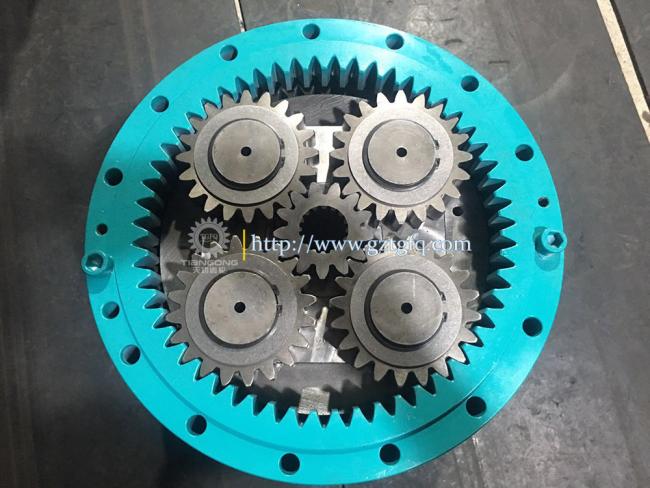

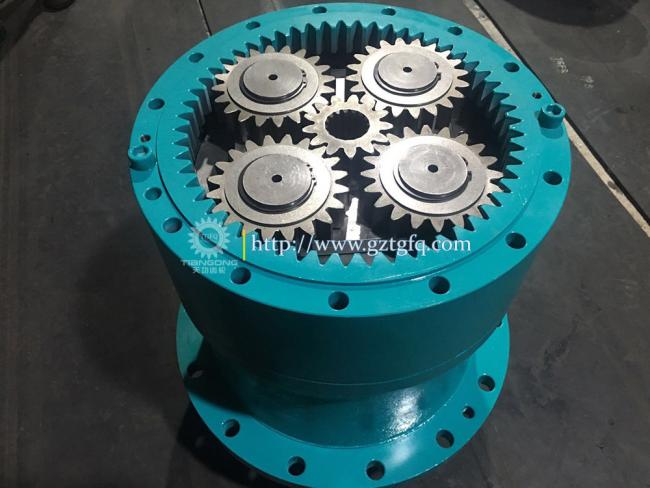

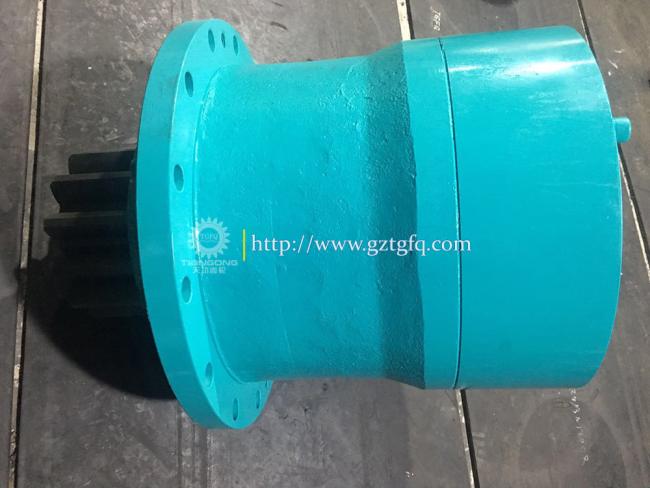

Product Photos

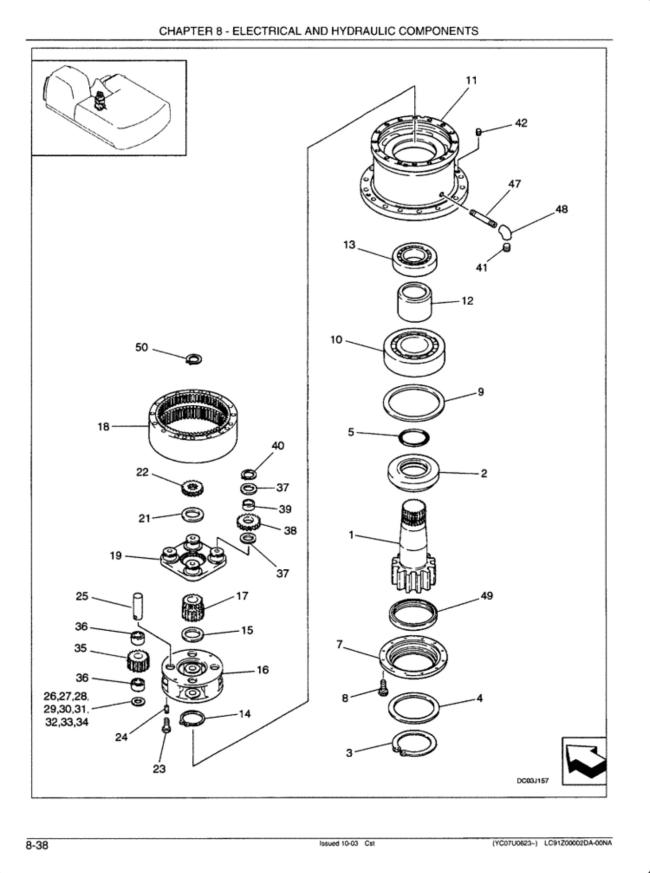

Technical Drawing
Component Parts List
| Pos. | Part No | Qty | Parts Name | Comments |
|---|---|---|---|---|
| . | 24100J16661F4 | [1] | HYDRAULIC MOTOR | KOB ASSEMBLY, SWING |
| 1 | 2410J549 | [1] | FINGER ASSY. | KOB SHAFT, PINION |
| 2 | 2418P27419 | [1] | SLEEVE | KOB |
| 3 | 2418R597D25 | [1] | LOCKING RING | KOB SNAP RING |
| 4 | 2418T24206 | [1] | PLATE | KOB |
| 5 | ZD11G14000 | [1] | O-RING,139.40mm ID x 145.60mm OD x 3.10mm | KOB ID 139.4 ± 1.12 x OD 145mm |
| 7 | 2418N3633 | [1] | RETAINER | KOB |
| 8 | ZS23C12040 | [14] | SCREW,Hex Socket Head, M12 x 40mm | KOB M12x1.75x40mm |
| 9 | 2418T22950 | [1] | SPACER | KOB |
| 10 | R25P0047D12 | [1] | BEARING | KOB SPHERICAL BEARING |
| 11 | 2414J2542 | [1] | BEARING ASSY | KOB HOUSING |
| 12 | 2418T22951 | [1] | SPACER | KOB |
| 13 | 25Z494D16 | [1] | BEARING | KOB |
| 14 | ZR16X12000 | [1] | SNAP RING | KOB Retaining -- ID 113 x OD 120 x Th 4.0mm |
| 15 | 2418T22971 | [1] | SPACER | KOB |
| 16 | 2413J382 | [1] | DIFF. SPIDER | KOB |
| 17 | 2401P1387 | [1] | SUN GEAR | KOB |
| 18 | 2401J152 | [1] | RING GEAR | KOB INTERNAL |
| 19 | 2413N491F1 | [1] | SPIDER | KOB ASSEMBLY |
| 21 | 2418T22970 | [1] | SPACER | KOB |
| 22 | 2401P1388 | [1] | SUN GEAR | KOB |
| 23 | ZS13C10025 | [8] | CAPSCREW | KOB SCREW M10x1.50x25mm Superseded by part number: ZS18C10025 |
| 24 | 2418T22949 | [4] | LOCKING PLATE | KOB |
| 25 | 2410T493 | [4] | SHAFT | KOB |
| 26 | 2420T7753D1 | [1] | SHIM | KOB (1.0) |
| 27 | 2420T7753D2 | [1] | SHIM | KOB (1.1) |
| 28 | 2420T7753D3 | [1] | SHIM | KOB (1.2) |
| 29 | 2420T7753D4 | [1] | SHIM | KOB (1.3) |
| 30 | 2420T7753D5 | [1] | SHIM | KOB (1.4) |
| 31 | 2420T7753D6 | [1] | SHIM | KOB (1.5) |
| 32 | 2420T7753D7 | [1] | SHIM | KOB (1.6) |
| 33 | 2420T7753D8 | [1] | SHIM | KOB (1.7) |
| 34 | 2420T7753D9 | [1] | SHIM | KOB (1.8) |
| 35 | 2401P1393 | [4] | PINION | KOB PLANETARY |
| 36 | 2425R221 | [8] | BEARING ASSY | KOB |
| 37 | 2418T22960 | [8] | THRUST WASHER | KOB |
| 38 | 2401P1394 | [4] | PINION | KOB PLANETARY |
| 39 | 2425R218 | [4] | NEEDLE BEARING | KOB |
| 40 | ZR16X06500 | [4] | SNAP RING | KOB Retaining -- ID 65 x OD 81 x Th 2.5mm |
| 41 | ZE82T12000 | [1] | PLUG | KOB 3/4" PT |
| 42 | ZS83C20020 | [2] | SCREW | KOB Set -- M20x2.50x20mm |
| 47 | 2420T6698D1 | [1] | PIPE | KOB |
| 48 | ZG31U12000 | [1] | ELBOW | KOB |
| 49 | 2418Z1448 | [1] | SEAL | KOB OIL SEAL |
| 50 | ZR16X04500 | [1] | RING | KOB Retaining -- ID 45 x OD 58 x Th 1.8mm |
| . | 24100J13528R100 | [1] | REPAIR KIT | KOB Includes 26 - 34 |
Our Service Advantages
- Advanced technical knowledge and expertise
- Quick delivery and competitive pricing
- Volume discounts available - larger orders receive better pricing and faster delivery
- Professional team providing comprehensive customer service
- Supply of both used and new parts with guaranteed quality, made in China
- All parts can be verified by part number and ordered accordingly
Warehouse Capacity
We maintain over 4000 square meters of three-dimensional warehouse space and an additional 2000 square meters of outdoor warehouse facilities.
This extensive storage capacity ensures sufficient inventory levels and enables faster response to customer requirements. Fast delivery is our competitive advantage.
Frequently Asked Questions
What products and services do you provide?
We provide digging final drive and swing drive motors, reducer gearboxes, and their component parts.
How long is the warranty period?
We offer a 6-month warranty period, during which we provide maintenance spare parts free of charge.
Do you accept OEM or ODM orders?
Yes, we accept both OEM and ODM orders. You only need to provide your logo file or design concepts.
Can I order samples for testing?
Yes, we welcome sample orders for testing and evaluation.
How do I place an order?
Please provide the model and quantity you're interested in, and we will issue a proforma invoice. After payment is received, we will prepare your order. Preparation time depends on the order content.
Do you have your own manufacturing facility?
Yes, we operate our own factory with 22 years of production experience in the excavator gear industry.
