25000kN Magnesium Alloy Die Casting Equipment And Machines

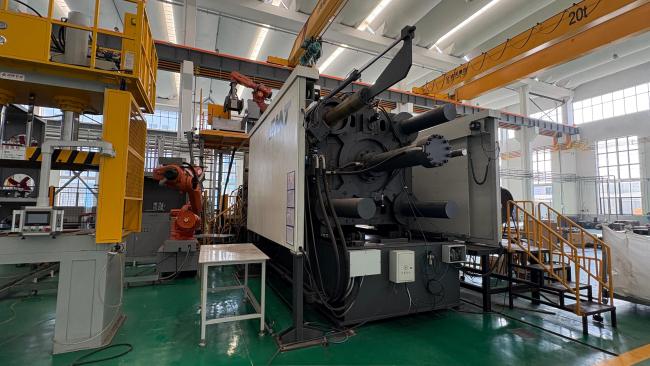

25000kN Semi-Solid Slurry Preparation Magnesium Alloy Die Casting Machine for Medical Product Manufacturing
| No. | DESCRIPTION | UNIT | MG2500 |
| 1 | Mold Locking Force | kN | 25000 |
| 2 | Mold Lock Stroke | mm | 1500 |
| 3 | Screw Diameter | mm | 150 |
| 4 | Injection Pressure | MPa | 100 |
| 5 | Theoretical Injection Volume | cm³ | 7068 |
| 6 | Systematic Operating Pressure | MPa | 16 |
| 7 | Ejector Force | kN | 750 |
| 8 | Machine’s Overall Dimension (L×W×H) | m | 16.3×6.7×5 |
The principle of the semi-solid injection molding equipment for magnesium alloys:
The magnesium alloy particle raw material enters the semi-solid slurry preparation tube (material tube) by negative pressure and gravity, and is hot melted in the material tube to form a solid-liquid two-phase mixture (semi-solid slurry) under the action of screw stirring and shearing. Due to the stirring and shearing, the solid phase becomes spherical and the slurry has good fluidity. In this state, the slurry is high-speed pressed into the mold for molding, cooled and shaped, and the integrated magnesium alloy product can be obtained.
Applied Industry:3C Electronic Products
Applied Industry:New Energy Vehicles
Applied Industry:Outdoor Products
Applied Industry:Medical Products
