P15F P20 P25 Transmission Drive Chains Without Roller
Price:
$3.00 - $10.00/ Meter
MOQ:
50 Meters
Delivery Time:
45 work days
Brand:
UCER
Product Description
Steel Transmission Bush Chain Transmission Drive Chains
P15F-B P19.05 P20-B P20F3-B P25-B P25F1-B P30F6-B
Material:
plate:40Mn
Bush: 20Cr
Pin: 30CrMnTi
Process:
plate: Quenching
bush, pin: carburizing ( heat treatment )
Quick Details
Standard or Nonstandard: Standard
Type: Roller Chain
Material: ALLOY
Place of Origin: Zhejiang, China
Brand Name: Gelin
Conveyor chain name: bush chains
bush chain type: chain without roller
OEM service: accept
Heat treatment: all the chain parts undergo heat treatment
Color: black & gray
Bush chain pitch: 19.05mm 29.40mm
Bush chain roller diameter: 73.5mm 83.5mm
Production maker: China manufacturer
Material: alloy steel
Size&capacity: pls reference to the form
Spcifications

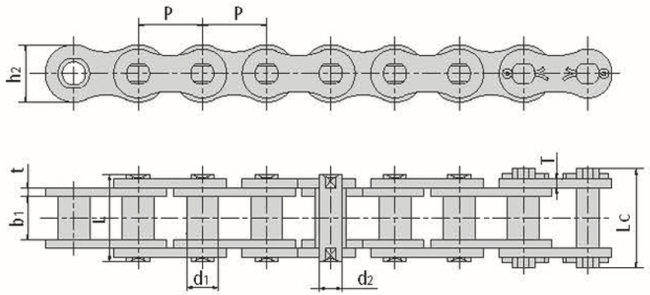

| Chain NO. | Pitch | Bush diameter | Width between inner plates | Pin diameter | Pin length | Plate depth | Plate thickness | Ultimate tensile strength | Average tensile strength | Weight per meter | |
| P | d1 max | b1 min | d2 max | L max | Lc max | h2 max | t/T max | Q min | Q0 min | q | |
| mm | kN/bf | KN | kg/m | ||||||||
| P15-B | 15 | 9 | 14 | 6 | 25.3 | 30 | 14 | 2.03 | 12.5/2852..5 | 13.75 | 1.15 |
| P19.05 | 19.05 | 12.7 | 12.5 | 7.5 | 31.6 | 33.6 | 20 | 4.15/3.25 | 50/11248 | 55 | 2.56 |
| P20-B | 20 | 12 | 16 | 8 | 33 | 36 | 18 | 3 | 25/5624 | 27.5 | 2.14 |
| P20F3-B | 20 | 12 | 16 | 8 | 33 | 36 | 19 | 3 | 25/5624 | 27.5 | 2.03 |
| PZ20-B | 20 | 12 | 16 | 8 | 33 | 34.7 | 18 | 3 | 25/5624 | 27.5 | 2.253 |
| P25-B | 25 | 15 | 18 | 10 | 35 | 39 | 24 | 3 | 31.5/7086 | 34.7 | 3.17 |
| P25F1-B | 25 | 15 | 18 | 10 | 35 | 39 | 24 | 3 | 31.5/7086 | 34.7 | 2.67 |
| P30F2-B | 30 | 17 | 20 | 11 | 41 | 454.4 | 28 | 4 | 40/8998 | 44 | 4.25 |
| P30F6-B | 30 | 17 | 20 | 11 | 12.4 | 46 | 28 | 4 | 40/8998 | 44 | 3.75 |
| P35F2-B | 35 | 18 | 22 | 12 | 44.5 | 48 | 30 | 4 | 50/11248 | 55 | 4.33 |
| P35F5-B | 35 | 18 | 22 | 12 | 44.5 | 48 | 30 | 4 | 50/11248 | 55 | 3.77 |
| P36-B | 36 | 18 | 22 | 12.5 | 44.5 | 49 | 30 | 4 | 60/13497 | 66 | 4.2 |
| P40-B | 40 | 20 | 25 | 14 | 52.4 | 57 | 35 | 5 | 63/14172 | 59.3 | 5.43 |
| P45-B | 45 | 22 | 30 | 16 | 62 | 66.5 | 40 | 6 | 80/17996 | 88 | 7.54 |
| P50-B | 50 | 26 | 35 | 18 | 68 | 73.5 | 44 | 6 | 100/22495 | 110 | 8.9 |
| P50.8F7 | 50.8 | 18.5 | 25 | 14.5 | 53.5 | 57.5 | 40 | 5 | 120/26994 | 132 | 6.3 |
| P55-B | 55 | 30 | 45 | 20 | 88 | 93.5 | 49 | 8 | 125/28119 | 137.5 | 13.92 |
| P55F1-B | 55 | 30 | 45 | 20 | 88 | 110 | 49 | 8 | 125/28119 | 137.5 | 13.92 |
| P60-B | 60 | 32 | 50 | 22 | 94.1 | 99.5 | 55 | 8 | 160/35993 | 176 | 15.2 |
| P70-B | 70 | 30 | 65 | 30 | 117 | 130 | 67 | 10 | 250/57050 | 275 | 26.27 |
| P80-B | 80 | 44 | 70 | 32 | 131 | 150 | 75 | 12 | 315*71883 | 346 | 31.8 |
Packing Delivery Shipping
Packaging details : A bush chain + a poly bag + individual box + wooden case
Delivery Details:
Usually, we pack motorcycle chain in polybag and box. then put the box in the creat. we offer yellow or white box for free, which marked length and size only, customer also may offer his box sample to us. our crate dimension: 100×75×75cm(800Kg could be packed)or 105×95×75cm(1000Kg could be packed); Usually 20' container could pack about 20-25 ton, but it depend on the requirement of the customs of every country. Packed chain on the pallet directly also optional.
