Ul Ac Current Transformer 32mW Energy Metering Wire Wound Transformer

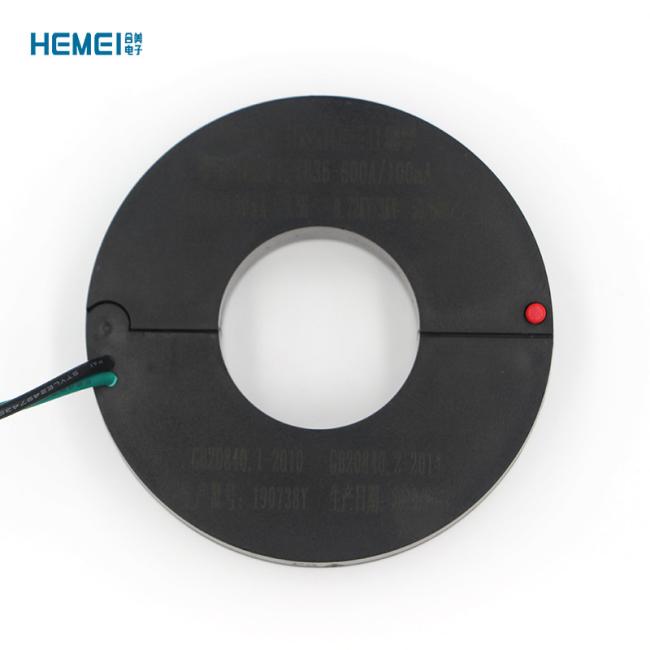

Split Core Current Transformer For Energy Metering Ul Transformer

HEMEI is a professional manufacturer in China devoted in research, design, and production of Split Core(Clamp on) Current Transformer(CTs), Clip on Current Sensor, Split Core Current Transducer, High precision current transformer, and mini voltage transformer. Measure AC current from 1A to 5000A, Output can be 0.333V, mA, 1A and 5A.

Feature

1. Split core design, safe, easy to install, portable
2. Wide inner window, allowing clamping of big cables or bus-bars
3. Wide range of sizes to accommodate all the existing installations
4. Operating Frequency: 50 to 1000 Hz.
5. Output Connection: Coaxial Cable
6. Fire resistance: UL94-Vo
7. Work temperature:-20℃~+50℃
8. Storage temperature:-30℃~+90℃

Application:

split-core current transformer AC current from 5 to 600 Amps passing through the center conductor. Split core CTs are designed for fast and easy installation.The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation.This method permits a safer,easy and portable current measurement.

1. Current measurement, monitoring and protection for electrical wiring and equipment.
2. Current and power measurement for electric motors, lighting, air compressor, heating and ventilation system, air-condition equipment and automation – control system.
3. Current, power and energy monitoring device.
4. Relay protection device.

Parameter:

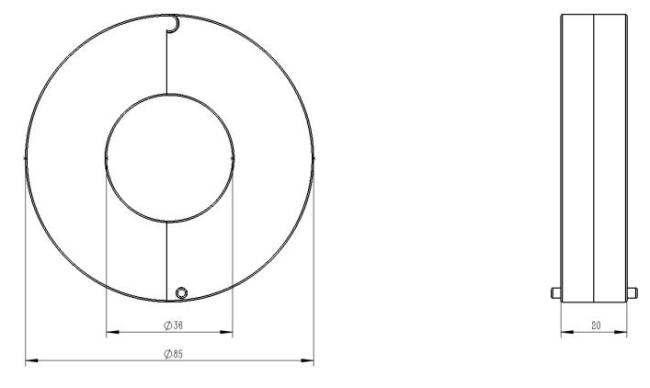

diagram
