Diaphragm Domestic Gas Meters G2.5 G4 High Safety ISO9001 certificate
Product introduction
IC (Diaphragm) Gas Meter:The diaphragm gas meter is used as the measurement base
meter, and a new type of smart gas meter composed of a flow signal acquisition module,
an IC card module, a valve control module, and a power management module is added.
In addition to the volume metering functions of coal gas, natural gas, and LPG, the meter
also has functions such as prepayment, electromechanical conversion of metering data,
and valve control.

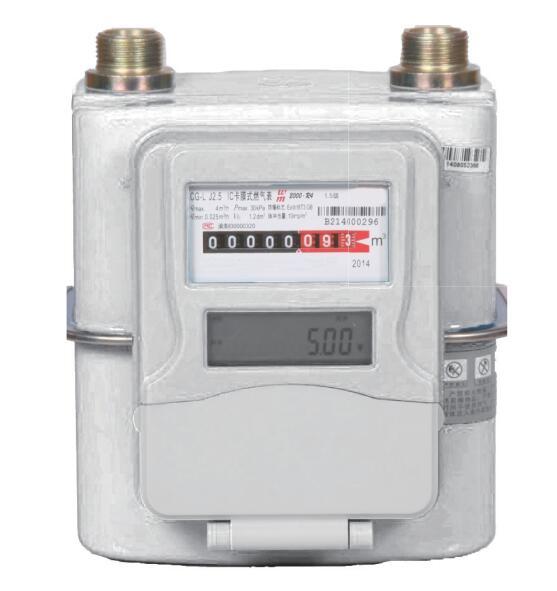

High Saftey Diaphragm Domestic Gas Meters Prepaid IC Card w/ Max Flowrate 4m3/h
| Model number | G2.5 | G4 | |
|
Nominal flow q (m3/h) n |
2.5 | 4.0 | |
|
Max flow q (m3/h) max |
4.0 | 6.0 | |
|
Min flow q (m3/h) min |
0.025 | 0.04 | |
| Tolerance allowed | 0.1qmax≤q≤qmax | ±1.5％ | |
| qmin≤q＜0.1qmax | ±3％ | ||
| Max work pressure pmax | 10 kPa | ||
| Pressure loss | ≤250 Pa | ||
| Lifetime | Natural gas:10 years | Artificial gas/LPG:6 years | |
| Max meter reading | 99999.999 m3 | ||
| Min meter reading | 0.2 dm3 | ||
| Deviation of electromechanical conversion | ＜0.1m3 | ||
| Working temperature | －10℃～＋40℃ | ||
| Power source | 4x #5 carbon battery in series, single battery 1.5V | ||
| Work voltage range | DC 4.8V～6.0V | ||
| Static current | ＜25 uA | ||
| Sampling method | Double dry reed switches | ||
| Medium condition | All kinds of gas, air, non-corrosive gas | ||
| Explosion-proof mark and code | ExibⅡBT3 Gb | CQEx21.0145 | |
| Valve reliability | Continuous on/off times≥ 4000 | ||
Other types: General Mechanical Diaphragm AMI Diaphragm Gas Meter
