IPX5 IPX6 Water Jet Test System Hose Nozzle Waterproof Testing Equipment
IPX5 IPX6 Water Jet Test System Hose Nozzle Waterproof Testing Equipment
Complied Standards & Clauses
Conforms to IEC 60529-2013 “Degrees of protection provided by enclosure (IP code)” IPX5 and IPX6.
Product Overview
The SN447 IPX5~6 Hose Nozzle Water Jet Test System is engineered to verify the water ingress protection of enclosures for electronic and electrical devices, automotive components, motorcycle parts, household appliances, lighting fixtures, and sealing elements. It simulates high-pressure water jets as defined in IEC 60529 IPX5 and IPX6, ensuring your product complies with international waterproof standards.
This system controls water flow precisely to meet standard delivery rates, using high-precision nozzles to spray the enclosure from all practicable directions. It features a PLC intelligent control system, adjustable jet angle, and a sturdy rotating turntable, offering reliable and repeatable IP testing performance.
Technical Parameters
|
Category |
Specification |
|---|---|
| Standards Compliance | IEC 60529-2013 (IPX5 and IPX6) |
| Nozzle Size | IPX5: Ø6.3 mm IPX6: Ø12.5 mm |
| Water Delivery Rate | IPX5: 12.5 ± 0.625 L/min IPX6: 100 ± 5 L/min |
| Nozzle to Enclosure Distance | 2.8 m (within standard range of 2.5 – 3.0 m) |
| Jet Angle | Adjustable water jet direction |
| Turntable | Ø600 mm, 1 rpm, load capacity ≤ 50 kg |
| Test Duration | 0.01 s – 99.9 min, programmable |
| Control System | PLC and touchscreen control |
| Water Storage Tank | 500 L stainless steel, open type, with float valve & level alarms |

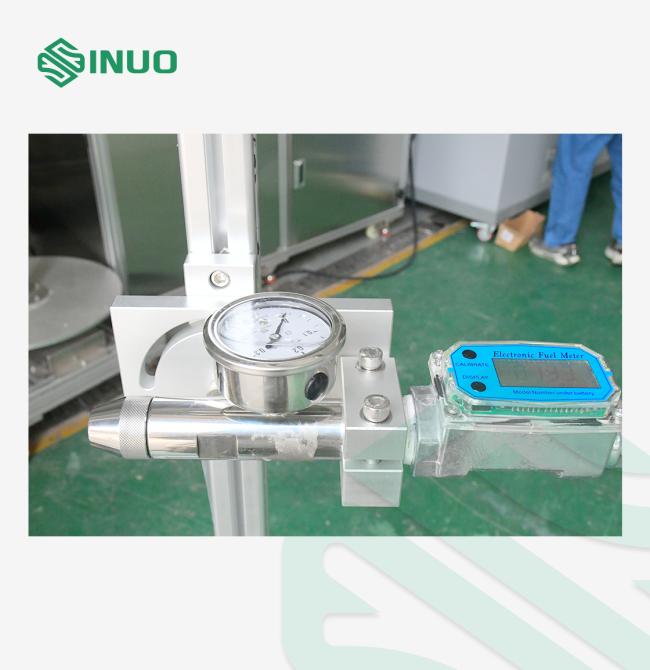

| Nozzle Mounting | Fixed support for spray and hose nozzles |
| Pressure Gauge | 0–0.25 MPa, digital display |
| Safety Protections | Phase sequence, leakage, water shortage, abnormal operation |
| Power Supply | AC 380V, 50 Hz, 4 kW |
Details
