Spiral Pure Lead Battery 6-SPB-100 Spiral Wound Battery

Main Applications
UPS
Communication station
Solar energy storage
Smart grid
Diferent standby power supply

Benefits
Technical Features
ISO 9001
ISO 14001
ISO 18001
With ultra-thin high purity lead frame
design, a higher charge efciency with
trickle current is achieved
With unique spiral wound design, the
dehydration and bulging deformation of
the battery are avoided in high-temperature
Excellent fast charging performance, more
than 95% of electricity is gained within 40
minutes
Good battery consistency, available more
strings in parallel
Applicable in -45°C ~ 75°C
The cycle life of 100% DOD reaches more than 350 times
The designed oat life is 15 years
The time of high rate discharge is two times more than
ordinary battery

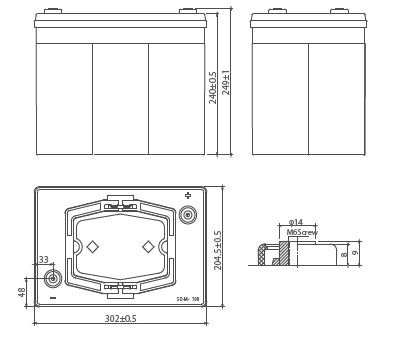

Dimensions

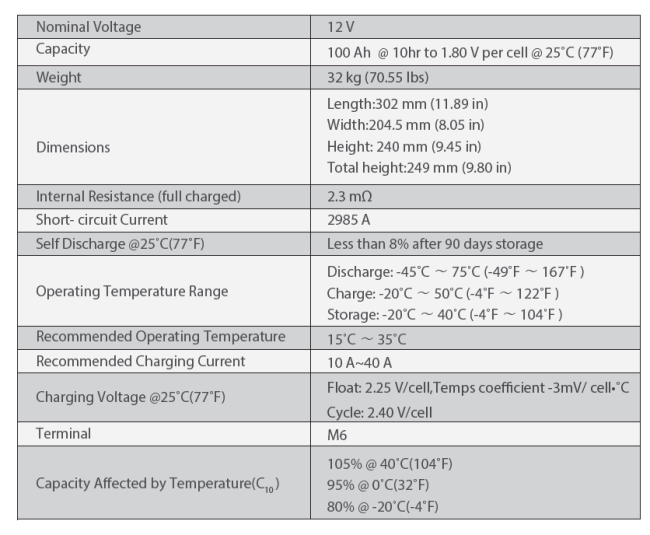

Technical Parameters

Constant Current Discharge Characteristics Unit: A (25ºC, 77ºF)

Constant Power Discharge Characteristics Unit: W/cell (25ºC, 77ºF)

Performance curve
