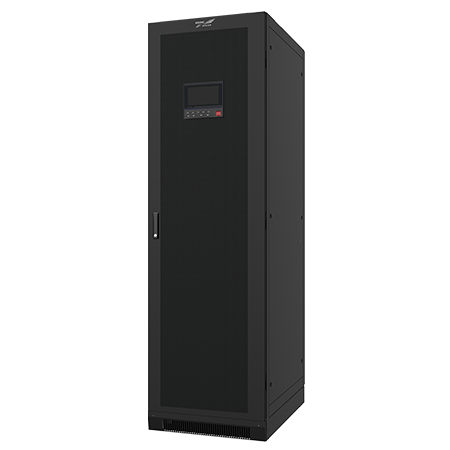

MR33125 Modular Online UPS 10000 VA Data Center UPS 65KG

MR33125 Modular UPS Modular Online UPS

High Reliability

• Wide input voltage range -60% ~ +25% with high grid adaptability

• Hot-swappable function ensures uninterrupted operations during maintenance

• Dual system control card prevents single failure point

• Intelligent fan control and redundant design for energy saving: 25% load can be driven when 2 fans fail and 50% load when 1 fan fails

• Parallel expansion up to four systems without requiring additional hardware

High Performance

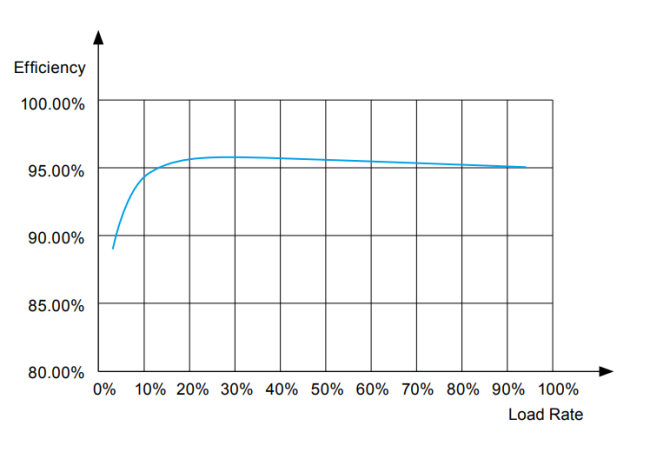

• High efficiency in online mode (>96%) reduces heat dissipation and limits power consumption costs

• THDi≤3% and input power factor 0.99 reduce the pollution to grid and reduce upstream investment costs

• Full rated power (kVA=kW) to maximize power availability

• Efficiency>99% in ECO mode gives significant cost reduction

• Advanced power module sleep mode, prolong the service life of power module

• Allow 100% three phase unbalance load

• Frequency converter function(60Hz to 50Hz or 50Hz to 60Hz)

• Self-load test function without load enables on-site commission

• Small footprint, 300kW only covers 0.5m2

Intelligent Management

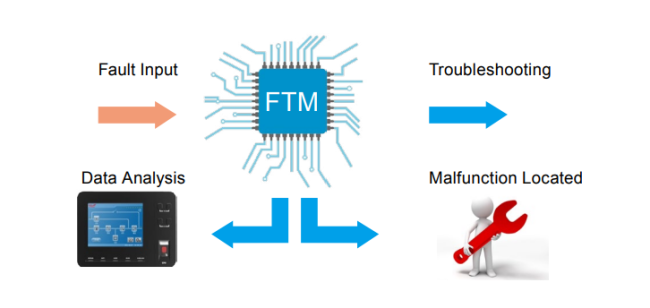

• Fault Trace Management (FTM) for convenient failure analysis(80ms waveform record)

• 7-inch HMI enables more parameters setting and status showing

• Intelligent battery charging system, prolong the service life of batteries

• Intelligent battery management, 30-46 pcs batteries per group allow customers to get the faulty battery out instead of replacing it

• Common battery bank sharing in parallel system

More Options

Power Distribution Cabinet:

• Design the power distribution cabinet according to your integrated solution

• Backfeed protection

Flexible Network Management:

• Optional internal SNMP adapter

• Intelligent management software

Intelligent Battery Monitoring System BMS2000:

• Smart status diagnosis

• Abnormal status real time alarming

• Event logs recording

• Parameters real time monitoring
