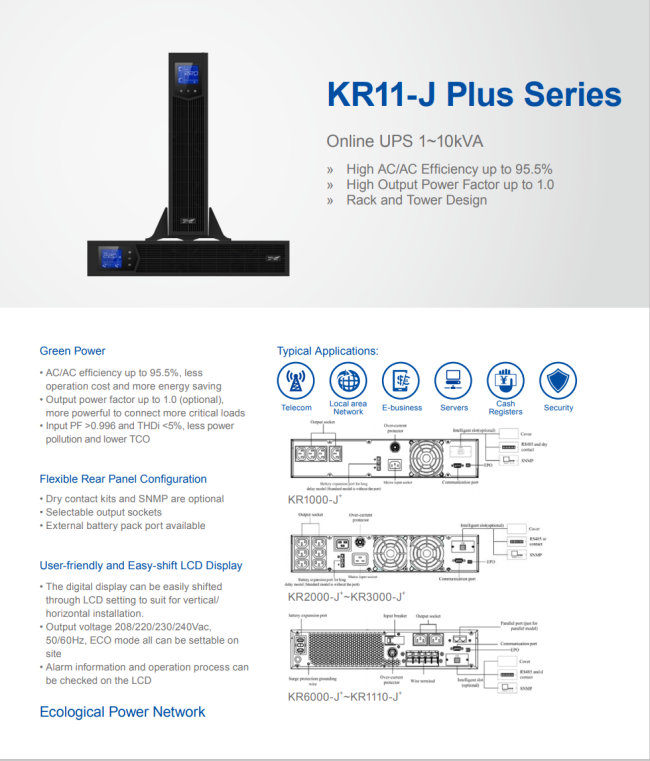

1000VA - 10kva Single Phase Online UPS With LCD Display
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
5-8workdays
Brand:
KELONG
Product Description
1000VA - 10kva Single Phase Online UPS With LCD Display
Shipping cost saving with its compact structure and small dimension
New topology with high power desity circuit is better for noise and surge protections.
User-friendly and Easy-shift LCD Display
● Intelligent RS232+USB+EPO
● ECO function
● Selectable output sockets
● Rack and tower convertible
● Suitable for vertical/horizontal installation
● External battery bank, rack kits (optional)
Flexible Rear Panel Configuration
● Dry contact kits and SNMP are optional
● Selectable output sockets
● External battery pack port available
| ITEMS | KR1000-J+/ KR1000L-J+ | KR2000-J+/ KR2000L-J+ | KR3000-J+/ KR3000L-J+ | KR6000-J+/ KR6000L-J+ | KR1110S-J+/ KR1110-J+ |
|---|---|---|---|---|---|
| INPUT | |||||
| Voltage (Vac) | 120-295 | 80-275 | |||
| Frequency (Hz) | 50/60± 10% (50/60Hz auto-sensing) | ||||
| Power Factor | ≥0.99 | ||||
| THDi | <5% | ||||
| OUTPUT | |||||
| Capacity (VA) | 1000 | 2000 | 3000 | 6000 | 10000 |
| Max. AC/AC Efficiency | 92% | 92.5% | 93.3% | 95.5% | 95.5% |
| Power Factor | 0.9 (1.0 optional) | ||||
| Voltage (Vac) | 208/220/230/240±1% (settable on display panel) | ||||
| Frequency (Hz) | 50/60±0.2% (battery mode) | ||||
| THDv | THD<2% (linear load ), THD < 5% (nonlinear load) | THD<1% (linear load ), THD < 4% (nonlinear load) | |||
| Transfer Time (ms) | 0 | ||||
| BATTERY | |||||
| Voltage (Vdc) | 24/36 | 48/72 | 72/96 | 192~240 | 192~240 |
| BATT Type | 2×9AH 12V/External | 4×9AH 12V/External | 6×9AH 12V/External | 16×9AH 12V/External (16~20 units settable) | |
| Charger Current (A) Max. | 1/4 | 1/4 | 1/4 | 1~8 adjustable | 1~8 adjustable |
| OTHER | |||||
| Communication Interface | RS232, EPO, USB (slot)(SNMP, RS485+dry contact are optional in slot) | ||||
| LCD Display | AC input & output voltage, frequency, load level, battery level, temperature; AC mode, battery mode, bypass mode, and fault | ||||
| Alarm | Low battery, abnormal AC input, UPS failure, etc. | ||||
| Protection | Low battery, overload, short-circuit and over temperature, etc. | ||||
| Noise (dB) | < 50 | < 55 | |||
| Working Temperature (℃) | -5~40 | ||||
| Relative Humidity | 0~95%, no condensation | ||||
| Dimension (W×D×H) mm | 438×413×2U | 438×413×2U (UPS)+ 438×413×2U (Batt. pack)/438×413×2U (UPS) | 438×500×2U (UPS)+ 438×500×3U (Batt. pack)/438×500×2U (UPS) | ||
| Weight (kg) | 11/5.8 | 7.2+13/8 | 7.2+17.5/8 | 10.6+45/10.6 | 12.2+45/12.2 |
