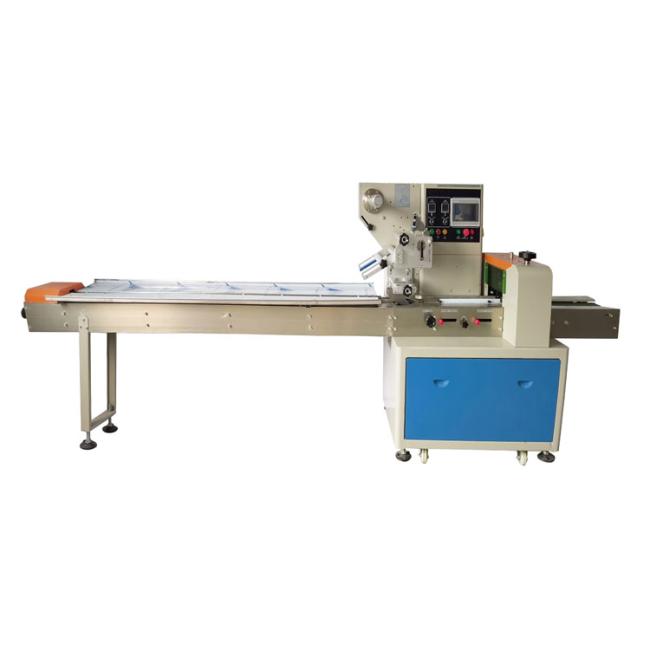

2.6KW Individual Cookie Packaging Machine 250mm ISO9001
Factory directly sell Heat seal film semi-Automatic pack Flowing Wrapping Machine cookies packing machine
Product details
| Packing material | OPP/CPP/PE/PET |
| Packing speed | 40-230 bags/min |
| Sealing type | Heat Sealer |
| Language | Chinese , English, Spanish, ect. |
| Control system | Panasoni c PLC |
| Bag length | 65-190mm/90-280mm/90-220mm/120-330mm |
| Bag width | 30-110mm |
| Sealing width | 10mm |
| Film width | Max.250mm |
| Machine weight | 450kg |
Features:
1. Dual frequency conversion control,Bag length can be set and ,cut in one step,saving time and film.
2. Interface features easy and quick setting and operation.
3. Self failure diagnosis,clear failure display.

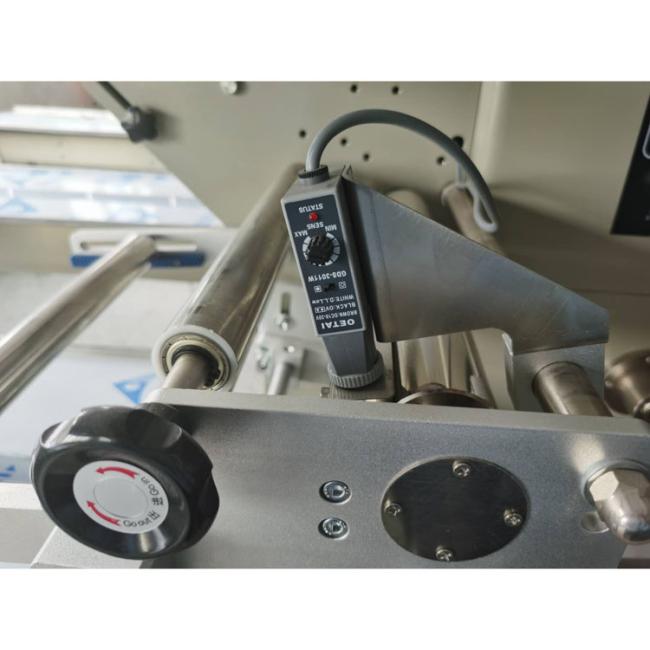

4. High sensitivity photoelectric eye color tracing,numerical input of cutting sealing position for extra accuracy.
5. Temperature independent PID control,more suitable for package different materials.
6. Positioned stop function,without sticking knife or wasting film.
7. Simple driving system,reliable working,convenient maintenance
8. All control is realized through software,easy for function adjusting and technical upgrade.
product parameters:
| Model | JY-250B | JY-250D | JY-350B | JY-350D |
| Model | Max.250mm | Max.250mm | Max.350mm | Max.350mm |
| Bag length | 65-90mm or 120-280mm | 90-220mm | 65-190mm or 120-280mm | 90-120mm;150-330mm |
| Bag width | 30-110mm | 30-110mm | 50-160mm | 50-160mm |
| Product height | Max.40mm | Max.55mm | Max.40mm | Max.60mm |
| Packing speed | 40-120bags/min | 40-120bags/min | 40-120bags/min | 40-120bags/min |
| Power | 220V 50/60HZ 2.6KW | 220V 50/60HZ 2.6KW | 220V 50/60HZ 2.6KW | 220V 50/60HZ 2.6KW |
| Machine dimension | 3770x670x1450 | 3770x670x1450 | 4020x770x1450 | 4020x770x1450 |
