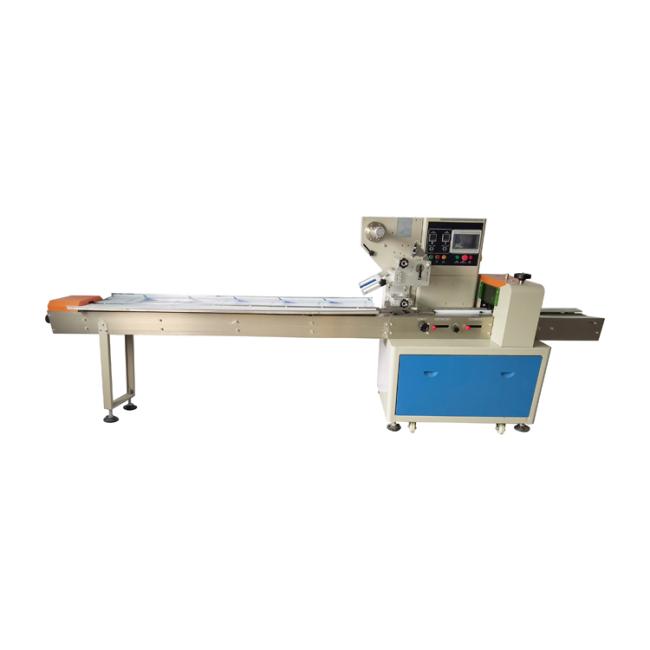

Chemical Pillow Packaging Machine 230bags/min Multi Purpose
Factory price Heat seal film PLC servo motor multifunction Wrapping Machine small packing machine
Product details
| Packing material | OPP/CPP/PE/PET |
| Packing speed | 40-230 bags/min |
| Sealing type | Heat Sealer |
| Language | Chinese , English, Spanish, ect. |
| Control system | Panasoni c PLC |
| Bag length | 65-190mm/90-280mm/90-220mm/120-330mm |
| Bag width | 30-110mm |
| Sealing width | 10mm |
| Film width | Max.250mm |
| Machine weight | 450kg |
Features:
1. Dual frequency conversion control,Bag length can be set and ,cut in one step,saving time and film.
2. Interface features easy and quick setting and operation.
3. Self failure diagnosis,clear failure display.
4. High sensitivity photoelectric eye color tracing,numerical input of cutting sealing position for extra accuracy.
5. Temperature independent PID control,more suitable for package different materials.
6. Positioned stop function,without sticking knife or wasting film.
7. Simple driving system,reliable working,convenient maintenance
8. All control is realized through software,easy for function adjusting and technical upgrade.
9. Automatic sense material length , automatic packaging products , no product no packaging , don’t need to adjust the bag length.
Similar product parameters :
| Model | JY-250B/D or 250X | JY- 320B/D or 320X | JY-350B/D or 350X | JY-450D or 450X | JY-600D or 600X |
| Film width | Max.250mm | Max.320mm | Max.350mm | Max.450mm | Max.600mm |
| Bag length | 65-190mm/90-280mm | 65-190mm/90-280mm | 65-190mm /90-280mm | 120-500mm | 120-500mm |
| 90-220mm/120-330mm | 90-220mm/120-330mm | 90-220mm/120-330mm | |||
| Bag width | 30-110mm | 50-160mm | 50-160mm | 50-180mm | 100-280mm |
| Height | Max.45mm | Max.55mm | Max.60mm | Max.80mm | Max.80mm |
| Speed | 40-230bags/min | 40-230bags/min | 40-180bags/min | 30-150bags/min | 20-150bags/min |
| Power | 220V 50/60HZ 2.4KW | 220V 50/60HZ 2.6KW | 220V 50/60HZ 2.6KW | 220V 50/60HZ 2.8KW | 220V 50/60HZ 2.8KW |
| Dimension | 3770x670x1450 | 3770x720x1450 | 4020x770x1450 | 4020x820x1450 | 4020x920x1460 |
| Weight | 450kg | 480kg | 500kg | 650kg | 680kg |
