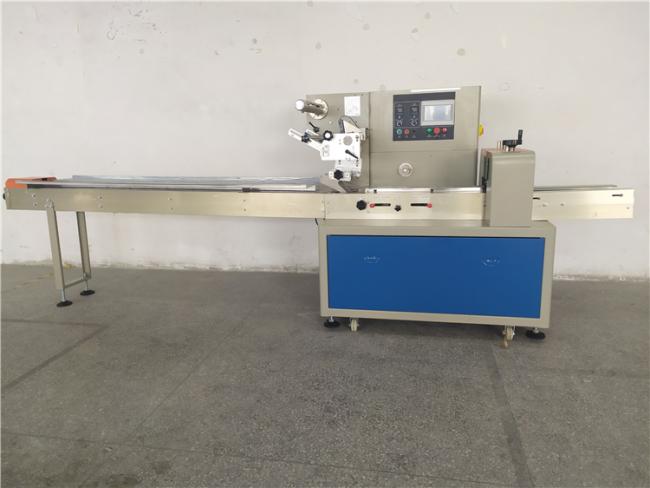

OEM Food Packaging Machine 2.6KW Pillow Bag Packaging
China supplier Quick pack Automatic pack Pillow Wrapping Machine food packing machine
Product details
| Film materia | Heat seal film |
| All parts contacted with product | Stainless steel |
| Shape of sealed bag | Back sealing(central sealing) |
| film thickness | 18-80um |
| Bag type | pillow bag |
| control | Plc |
| Speed | 40-180bags/min |
| Material | Carbon steel and stainless steel |
Features:
1. Dual frequency conversion control,Bag length can be set and ,cut in one step,saving time and film.

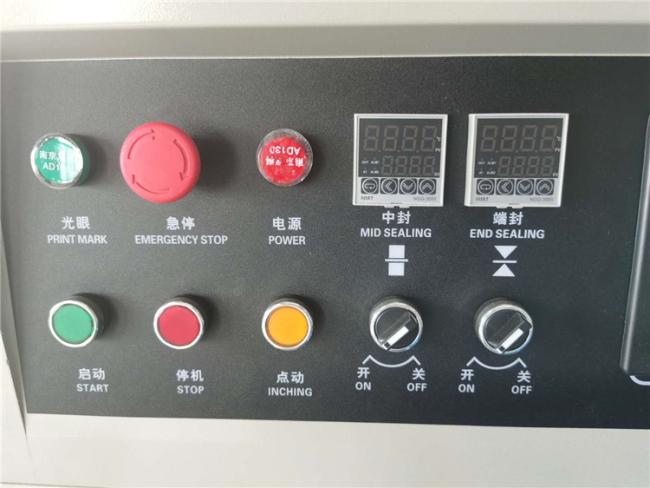

2. Interface features easy and quick setting and operation.
3. Self failure diagnosis,clear failure display.

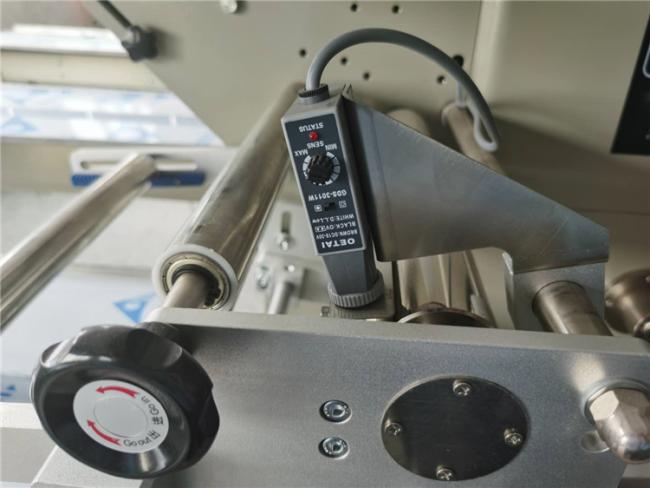

4. High sensitivity photoelectric eye color tracing,numerical input of cutting sealing position for extra accuracy.
5. Temperature independent PID control,more suitable for package different materials.
6. Positioned stop function,without sticking knife or wasting film.

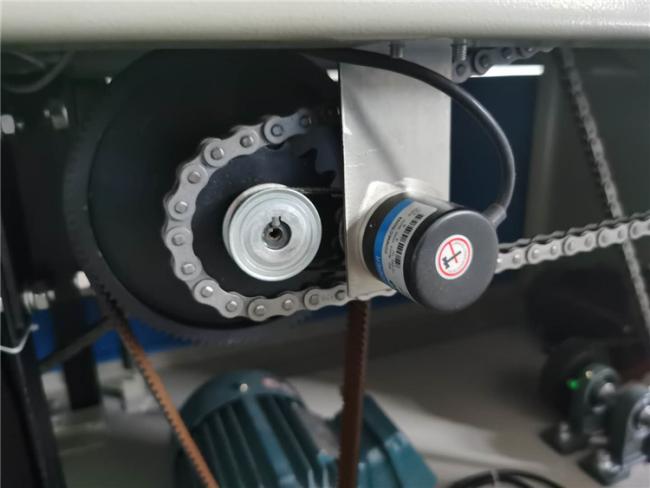

7. Simple driving system,reliable working,convenient maintenance
8. All control is realized through software,easy for function adjusting and technical upgrade.
9. Automatic sense material length , automatic packaging products , no product no packaging , don’t need to adjust the bag length.
Similar product parameters :
| Model | JY-250B/D or 250X | JY- 320B/D or 320X | JY-350B/D or 350X | JY-450D or 450X | JY-600D or 600X |
| Film width | Max.250mm | Max.320mm | Max.350mm | Max.450mm | Max.600mm |
| Bag length | 65-190mm/90-280mm | 65-190mm/90-280mm | 65-190mm /90-280mm | 120-500mm | 120-500mm |
| 90-220mm/120-330mm | 90-220mm/120-330mm | 90-220mm/120-330mm | |||
| Bag width | 30-110mm | 50-160mm | 50-160mm | 50-180mm | 100-280mm |
| Height | Max.45mm | Max.55mm | Max.60mm | Max.80mm | Max.80mm |
| Speed | 40-230bags/min | 40-230bags/min | 40-180bags/min | 30-150bags/min | 20-150bags/min |
| Power | 220V 50/60HZ 2.4KW | 220V 50/60HZ 2.6KW | 220V 50/60HZ 2.6KW | 220V 50/60HZ 2.8KW | 220V 50/60HZ 2.8KW |
| Dimension | 3770x670x1450 | 3770x720x1450 | 4020x770x1450 | 4020x820x1450 | 4020x920x1460 |
| Weight | 450kg | 480kg | 500kg | 650kg | 680kg |
