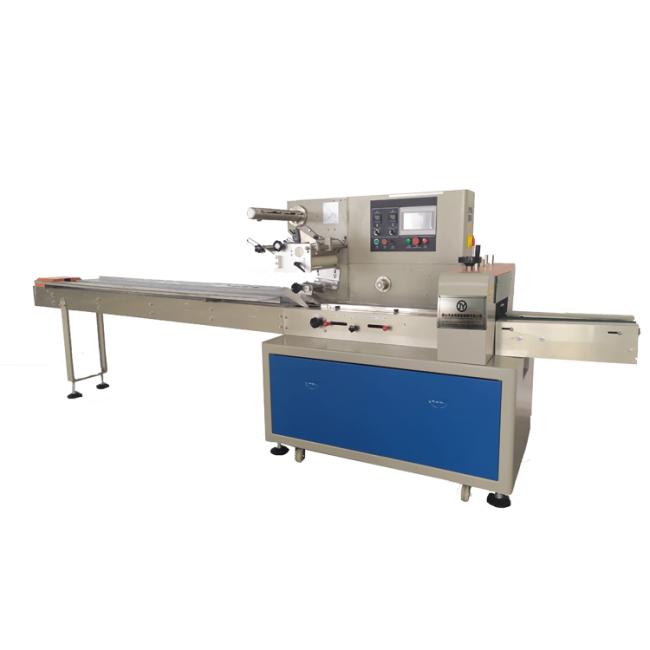

450mm Automatic Food Making Machine CE Pillow Pouch Packaging

Price Negotiable
Price: USD9000.00-9500.00
MOQ: 1 set
Delivery Time: 3 days after order confirmation
Brand: JinYu
Product Description



Multifunction Wrapping Packaging Machine Disposable Glove Pillow Packing Machine



Product details

Model JY-450X
bag length 120-500mm
Film width Max.450mm
Packing speed 30-150bags/min
Bag width 50-180mm
Power 2.8KW
Machine weight 650kg
machine dimension 4020x820x1450mm

Features:

1. Dual frequency conversion control,Bag length can be set and ,cut in one step,saving time and film.

2. Interface features easy and quick setting and operation.

3. Self failure diagnosis,clear failure display.

4. High sensitivity photoelectric eye color tracing,numerical input of cutting sealing position for extra accuracy.

5. Temperature independent PID control,more suitable for package different materials.

6. Positioned stop function,without sticking knife or wasting film.

7. Simple driving system,reliable working,convenient maintenance

8. All control is realized through software,easy for function adjusting and technical upgrade.

9. Automatic sense material length , automatic packaging products , no product no packaging , dont need to adjust the bag length.

Similar product parameters :



Model JY-250B/D or 250X JY- 320B/D or 320X JY-350B/D or 350X JY-450D or 450X JY-600D or 600X
Film width Max.250mm Max.320mm Max.350mm Max.450mm Max.600mm
Bag length 65-190mm/90-280mm 65-190mm/90-280mm 65-190mm /90-280mm 120-500mm 120-500mm
90-220mm/120-330mm 90-220mm/120-330mm 90-220mm/120-330mm
Bag width 30-110mm 50-160mm 50-160mm 50-180mm 100-280mm
Height Max.45mm Max.55mm Max.60mm Max.80mm Max.80mm
Speed 40-230bags/min 40-230bags/min 40-180bags/min 30-150bags/min 20-150bags/min
Power 220V 50/60HZ 2.4KW 220V 50/60HZ 2.6KW 220V 50/60HZ 2.6KW 220V 50/60HZ 2.8KW 220V 50/60HZ 2.8KW
Dimension 3770x670x1450 3770x720x1450 4020x770x1450 4020x820x1450 4020x920x1460
Weight 450kg 480kg 500kg 650kg 680kg
