White Powder Painted Steel LED Troffer Retrofit with Input Voltage 100-347VAC 347-480VAC
Product Description:
It is now possible to upgrade old troffers into contemporary, energy-efficient LED systems with ease. This is made possible by using an LED retrofit kit that comes with everything required for a smooth installation process without having to modify the existing fixture mounting.
To further enhance energy savings and design flexibility, it is now possible to opt for optional PIR, Motion and BLE Controls which are available to integrate into the LED retrofit kit.
Benefits of LED retrofit kits
- Easy to install without modifying existing fixture mounting
- Energy-efficient and contemporary
- PIR, Motion and BLE Controls available for further energy savings and design flexibility
Features:
The CLASS P Programmable LED Driver is a high-performance lighting solution that delivers excellent color rendering (CRI>80) and offers dynamic CCT tuning with multiple options, including 3000K, 3500K, 4000K, and 5000K. The 4 Step Power Adjustable model lets you easily adjust the brightness to suit your needs.
This LED Driver also comes equipped with an Adjustable CCT Troffer Retrofit for added flexibility. You can connect it to a low voltage sensor/BLE or other IOT network by using an auxiliary. Moreover, the driver also includes a built-in PIR Sensor and Motion Sensor options, adding to its functionality.
The DLC5.1 Premium LED Troffer Retrofit is also a part of the package, providing excellent emergency lighting options. The Recessed Ultra-thin LED Troffer retrofit ensures a long lifespan of L70>50,000hrs, combined with a 5 year warranty, guaranteeing exceptional performance and durability.
Technical Parameters:
| Product Name: | LED Troffer Retrofit |
| Luminous Flux: | 3375LM / 3000LM / 2500LM / 2000LM |
| Material: | White Powder Painted Steel |
| Input Voltage: | 100-277VAC Or 100-347VAC Or 347-480VAC |
| Color Temperature: | 3000K / 3500K 4000K / 5000K |
| CRI: | >80 |
| Lumen Output: | 3,000 Lm |
| Warranty: | 5 Years |
| Lifespan: | 50,000hrs |
| Beam Angle: | 120° |
| Description: | Adjustable CCT troffer retrofit, Recessed Ultra-thin LED Troffer retrofit, Adjustable CCT troffer retrofit |
Accessories
Bi-level 12V PIR Sensor/PIR Sensor with Daylight Harvesting
Specification
- Input: 12-24VDC, >8ma
- 0-10V DC output signal
- Memeory function with one bottun commissiong.
- IR Remote controller commission.
- Detecton Range: Max. 6m in diameter.
- Mounting Height: 3-4m.
- Optional Daylight Harvesting
Advantages
HOW TO CHANGE THE WATTAGE & CCT IN THIS FIXTURE
| Power Adjustable Slide Switch Position | ||||
| Size/Positon | 0 | 1 | 2 | 3 |
| 1X4 | 27W | 24W | 20W | 16W |
| 2X2 | 27W | 24W | 20W | 16W |
| 2X4 | 40W | 30W | 25W | 20W |
Applications:

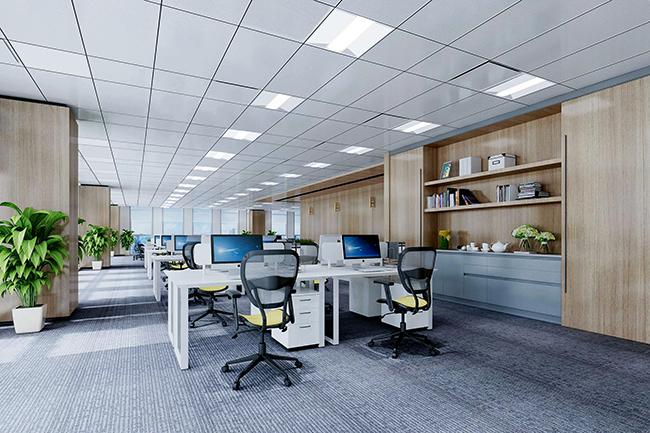

Schools, offices, conference room, hospitality etc.
