20W-40W 120 Degree Beam Angle Troffer Light in 3000K/3500K 4000K/5000K for School Lighting
Product Description:
If you are looking for a solution to upgrade outdated fluorescent troffers into energy-efficient, contemporary LED systems, Noonlight LED Troffer Light Kits are the perfect choice. These retrofit kits include everything needed for an easy and seamless installation without any modification to the existing fixture mounting.
Additionally, you can further enhance energy savings and design flexibility with Optional PIR, Motion, and BLE Controls provided with these LED retrofit kits. This feature allows you to customize your lighting system according to your needs and preferences.
Features:
The CCT Tunable LED Troffer Light offers a high lumens-per-watt ratio of up to 125LM/W, ensuring maximum energy efficiency and cost savings. With our product, you can minimize stock as a single SKU is capable of covering up to 16 different models, making inventory management a breeze.
In addition, our LED troffer light features an auxiliary port designed to connect with low voltage sensors, BLE, or other IOT networks enabling easy customization and integration with your existing technology infrastructure.
The Wattage Tunable Troffer Light 2 Depth Design offers two options – super thin or standard – giving you the flexibility to choose what suits your needs best. Our product features 5-100% 0-10V dimming, flicker-free lighting that dims to off.
Adding to the convenience are the built-in PIR Sensor and Motion Sensor options of the CCT and Power Tunable LED Troffer Light, further elevating the functionality and practicality of our product.
Technical Parameters:
| Technical Parameter | Value |
|---|---|
| Product Name | LED Troffer Lights |
| Application | Schools, Offices, Conference Room, Hospitality Etc. |
| Material | White Powder Painted Steel |
| Beam Angle | 120° |
| CRI | >80 |
| Luminous Flux | 2500-3250-4250-5000LM |
| Power | 20W / 26W / 36W / 40W |
| Color Temperature | 3000K / 3500K / 4000K / 5000K |
| Lifespan | 50,000hrs |
| Warranty | 5 Years |
Accessories
15W or 30W UL Listed Emergency Backup
- Listed for field Instllation-UL924 & CSA C22.2 NO. 141
- Input: 120-277VAC/347VAC 50/60Hz
- Output: 25-50VDC, 15 or 30W
- Illumination Time: 90min
- Battery Type:Li-ion
- Battery Recharge Time: 24Hrs
- Surge Protection: 3KV
- Protection:
- Input over-current Protection (Fuse)
- Output over-voltage Protection
- Output Low Voltage Protection
- Output Short Circuit Protection
- Working Temp.: 10℃ to 50℃
Advantages
HOW TO CHANGE THE WATTAGE & CCT IN THIS FIXTURE
| Power Adjustable Slide Switch Position | ||||
| Size/Positon | 0 | 1 | 2 | 3 |
| 1X4 | 27W | 24W | 20W | 16W |
| 2X2 | 27W | 24W | 20W | 16W |
| 2X4 | 40W | 30W | 25W | 20W |
| CCT Tunable Slide Switch Position | |
| Position/Group | CCT |
| Low | 3000K(Optional) |
| Middle 1 | 3500K |
| Middle 2 | 4000K |
| High | 5000K |
Applications:

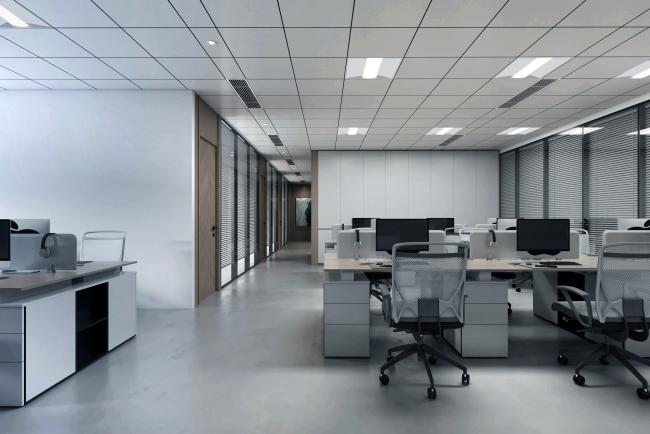

Schools, offices, conference room, hospitality etc.
